MSI B550-A PRO AM4 ATX Motherboard
HomeStore

MSI B550-A PRO AM4 ATX Motherboard

MSI B550-A PRO AM4 ATX Motherboard

$68.39

Original: $227.98

-70%
MSI B550-A PRO AM4 ATX Motherboard—

$227.98

$68.39

The Story

MSI B550-A PRO Overview

  • 1Description
  • 2User Friendly Design
  • 3Enhanced Performance
  • 4MSI Dragon Center
  • 5BIOS 5

Focus on business programs and optimize your workflow with the B550-A PRO ATX Motherboard from MSI. Designed to streamline assembly time, MSI allows you to focus on components that will enhance workload efficiency. The B550-A Pro is ideal for the DIY users who wish to replace older out-of-date motherboards or enjoy building from scratch.

Based upon AMD B550 chipset architecture, the B550-A Pro's AM4 socket allows you to install Ryzen 5000, 3000, and Ryzen 4000 G-series processors. Four dual-channel memory slots allow you to take advantage of DDR4 memory modules with speeds up to 4400 MHz. You can connect several hard drives with six SATA III and two M.2 ports for enhanced program loading and increasing overall performance. Install graphics, sound, or networking cards with one PCIe 4.0 x16, one PCIe 3.0 x16, and two PCIe 3.0 x1 slots. An RJ45 port is also available for wired internet connectivity, and with 7.1-channel high-definition audio, you can experience a wide range of entertainment. This motherboard is only compatible with Windows 10 (64-bit) operating systems.

User Friendly Design

Whether you are a seasoned or amateur builder, the B550-A Pro is designed for simplicity and durability, giving you all the tools you need to put together a PC optimized for your business level needs. Steel armor PCIe slots are reinforced with heavy soldered connections to prevent bending along with an XL clip for easy device swapping. Double ESD protection prevents shorts by adding another grounding layer to mounting holes. Additionally, an EZ debug LED system tells you if components are experiencing any issues, reducing time spent on troubleshooting.

Enhanced Performance

MSI constructed the B550-A Pro with enhanced features to increase system performance. The foundation of this board is built on 2oz thickened copper printed circuits for increased durability and conductivity between components. Extended heatsink design and M.2 Shield Frozr technology keeps your high-end components safe from damage caused by excessive heat. Core Boost, DDR4 Boost, Digital PWM, and Lightning Gen 4 all work together to provide better stability during increased workloads while also maximizing transfer-speed bandwidth. Enrich your media experience with MSI's Audio Boost and 4K support, providing clear visuals and crisp sound.

MSI Dragon Center

Take control of advanced motherboard features directly from your dashboard with MSI's free Dragon Center software. Giving you total fan control, overclock settings, and hardware monitoring, you can fine-tune your experience depending on your needs. You can also set up specific user scenarios, automatic live updates, and adjust monitor settings for customizable brightness and color adjusting.

BIOS 5

BIOS 5 allows you to dive deeper into hardware settings, enabling CPU and memory overclocking, BIOS flashing, and real-time hardware monitoring in both an easy and advanced mode for seasoned technical users.
UPC: 824142219362

In the Box

  • MSI B550-A PRO AM4 ATX Motherboard
  • 2 x SATA Cables
  • I/O Shielding
  • MSI Case Badge
  • Limited 1-Year Warranty
    Table of Contents
    • Description
    • User Friendly Design
    • Enhanced Performance
    • MSI Dragon Center
    • BIOS 5

    MSI B550-A PRO Specs

    CPU
    Chipset AMD B550
    CPU Socket AM4
    Back Panel I/O
    USB 2 x USB 2.0 Type-A
    2 x USB 3.1 / USB 3.2 Gen 1 Type-A
    1 x USB 3.1 / USB 3.2 Gen 2 Type-A
    1 x USB 3.1 / USB 3.2 Gen 2 Type-C
    Thunderbolt None
    Display 1 x DisplayPort
    1 x HDMI 2.1
    Audio 5 x 3.5 mm
    1 x S/PDIF
    Ethernet / Controller 1
    PS/2 1 x PS/2
    Buttons BIOS Flashback
    Memory
    Memory Slots 4 x 288-Pin
    Memory Support DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz
    Maximum Capacity 128 GB
    Channel Architecture Dual Channel
    ECC Support Non-ECC, ECC Unbuffered
    Storage Expansion
    SATA 6 x SATA III
    M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)
    1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4)
    U.2 None
    RAID Support RAID 0, 1, 10 (SATA)
    RAID 0, 1 (M.2)
    Internal I/O
    Expansion Slots 1 x PCIe 4.0 x16
    1 x PCIe 3.0 x16
    2 x PCIe 3.0 x1
    USB 2 x USB 2.0 Header (Supports 4 USB Type-A Port)
    1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)
    1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
    Multi-GPU Support 2-Way AMD CrossFireX
    Air Cooling 1 x 4-Pin CPU
    6 x 4-Pin System
    Liquid Cooling 1 x 4-Pin Pump
    Power Connectors 1 x 24-Pin Mainboard
    1 x 8-Pin ATX
    Security Chassis Intrusion, TPM Module
    LED Header 3 x RGB
    Audio 1 x Speaker
    Diagnostics Clear CMOS
    Front Panel I/O
    I/O Connection Headers USB 3.1 / USB 3.2 Gen 1
    Audio
    Audio Codec Realtek ALC892/ALC897 (7.1-Channel)
    Software
    Supported Operating Systems Windows 10 (64-Bit)
    Physical
    Form Factor ATX
    Dimensions 9.6 x 12" / 24.4 x 30.5 cm
    Packaging Info
    Package Weight 3.555 lb
    Box Dimensions (LxWxH) 13.6 x 10.8 x 3.45"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

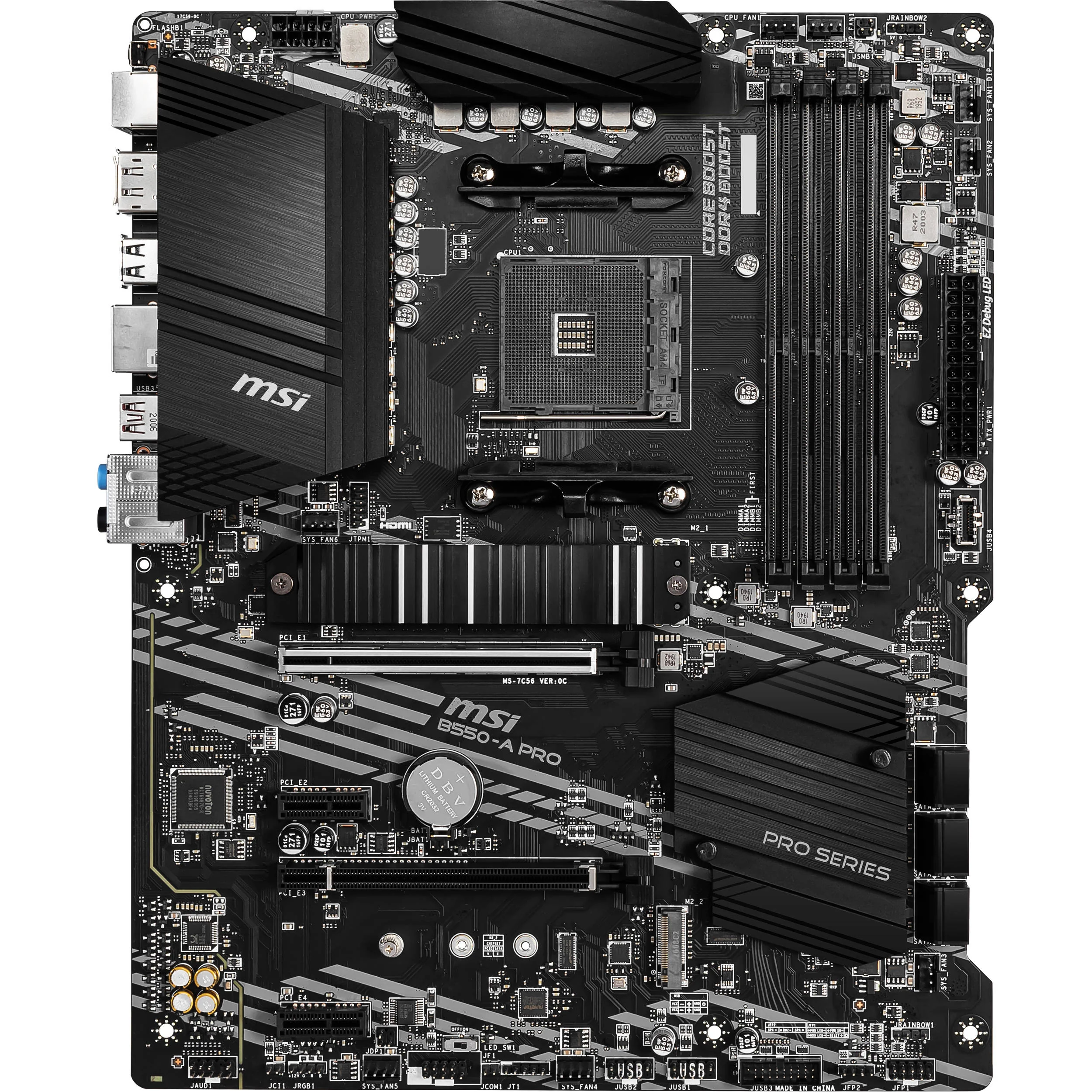

    MSI B550-A PRO AM4 ATX Motherboard - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

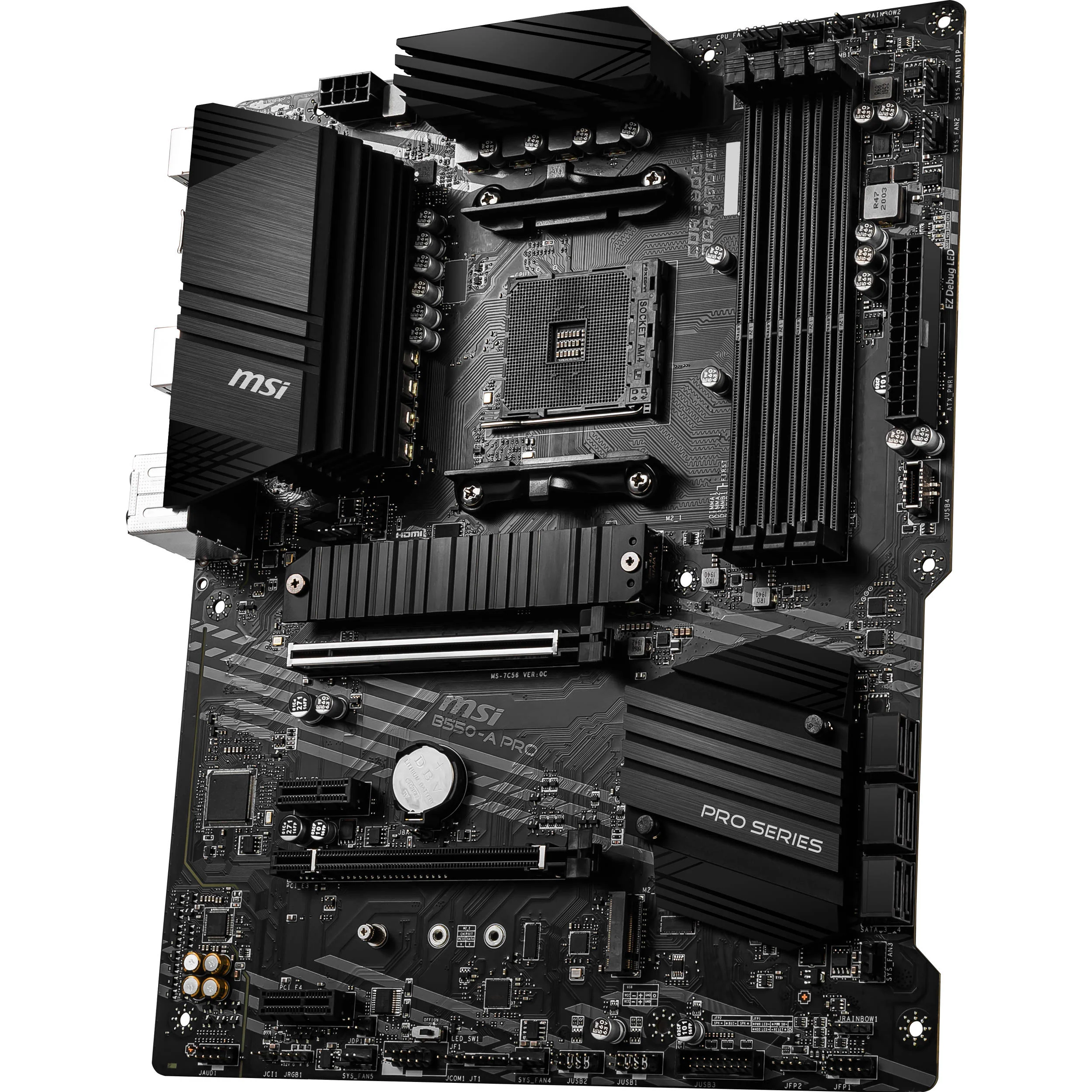

    MSI B550-A PRO AM4 ATX Motherboard - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

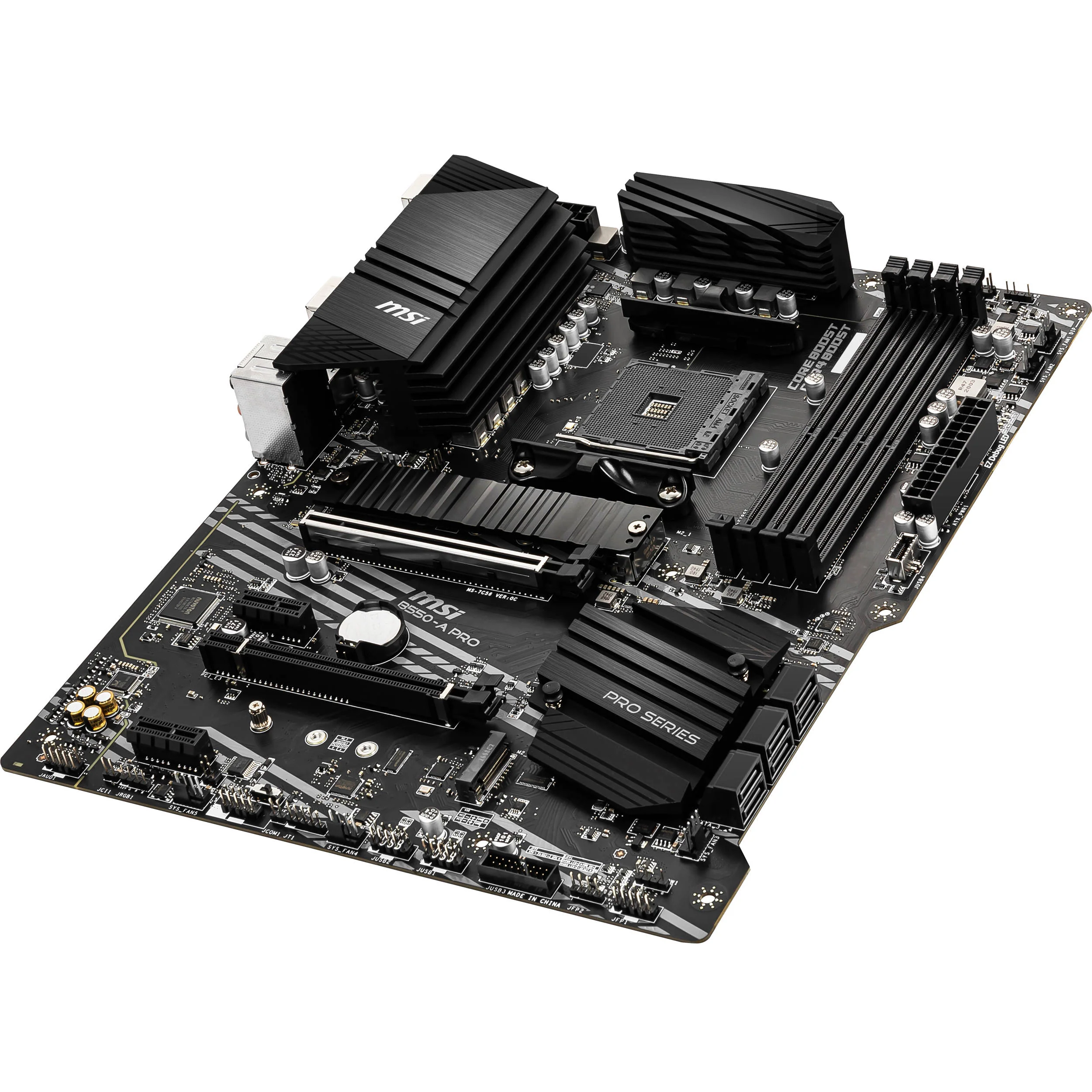

    MSI B550-A PRO AM4 ATX Motherboard - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

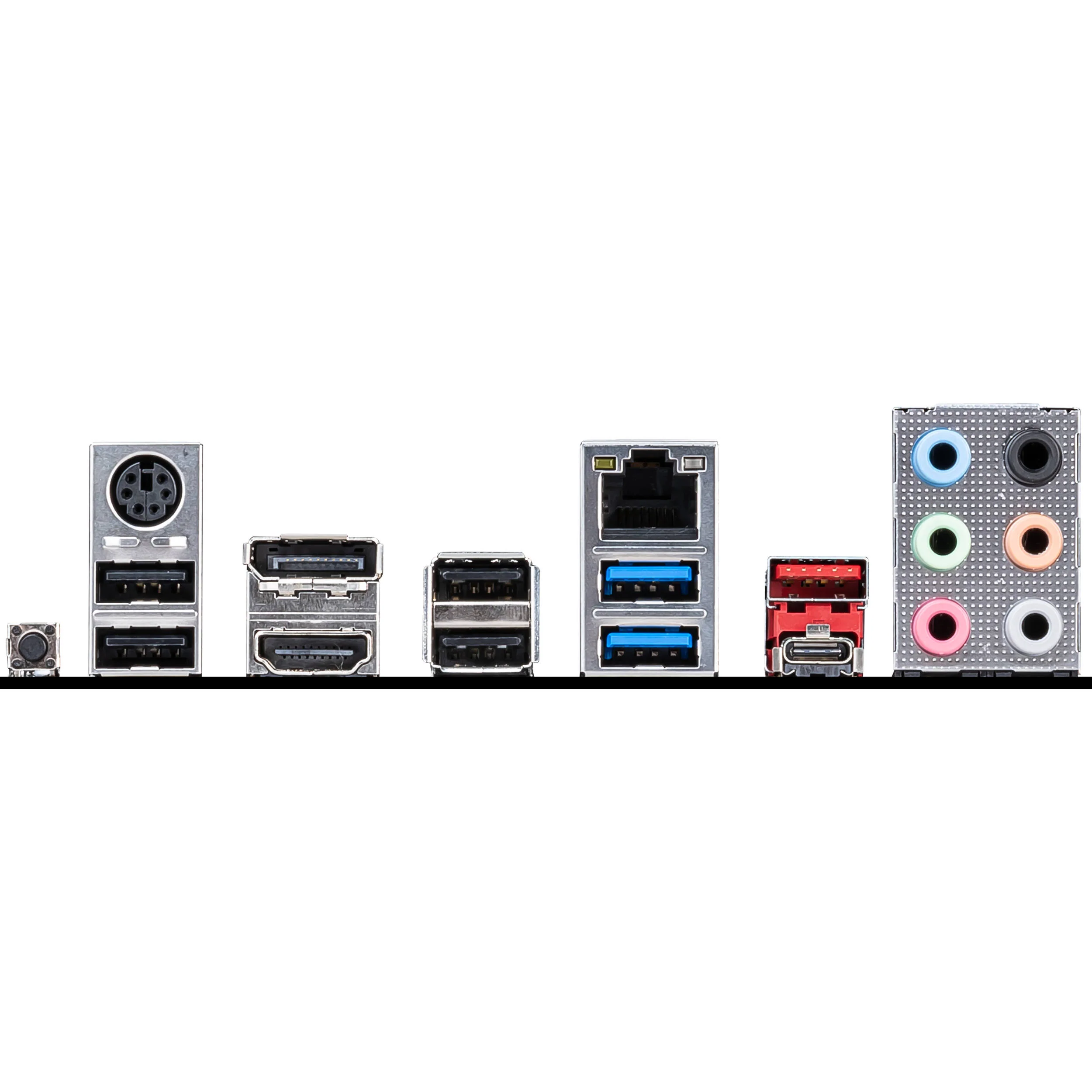

    MSI B550-A PRO AM4 ATX Motherboard - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

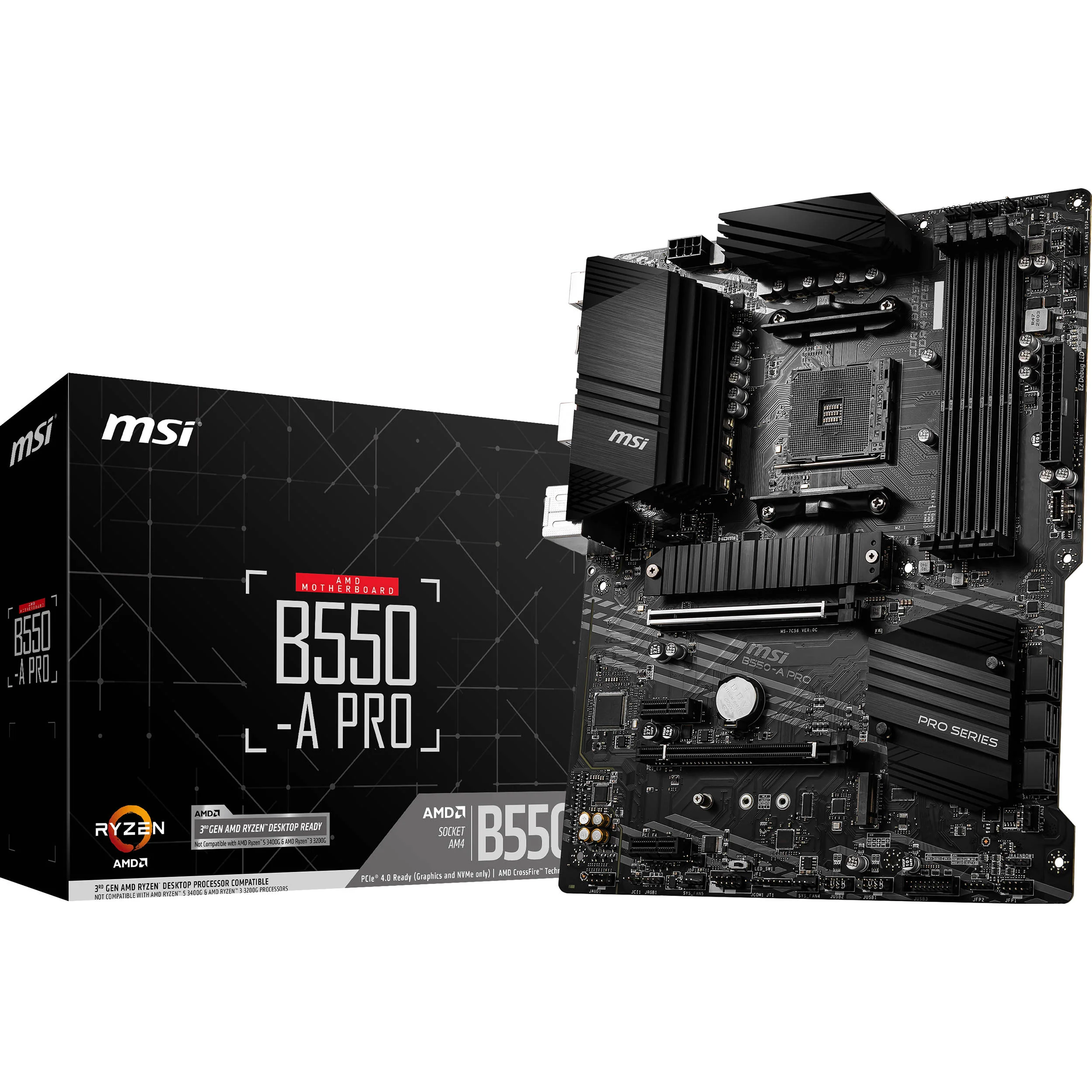

    MSI B550-A PRO AM4 ATX Motherboard - Image 6

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.
