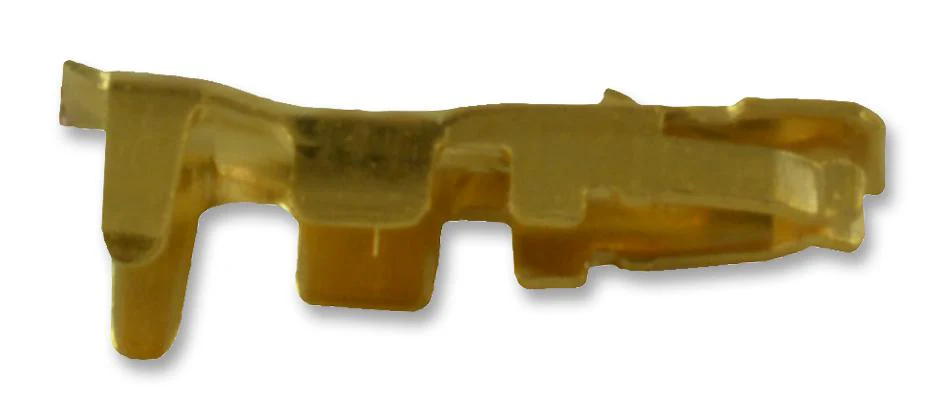

MOLEX 504052-0298 Contact, Pico-Lock 504052, Socket, Crimp, 30 AWG, Gold Plated Contacts
HomeStore

MOLEX 504052-0298 Contact, Pico-Lock 504052, Socket, Crimp, 30 AWG, Gold Plated Contacts

MOLEX 504052-0298 Contact, Pico-Lock 504052, Socket, Crimp, 30 AWG, Gold Plated Contacts

$0.10

Original: $0.32

-69%
MOLEX 504052-0298 Contact, Pico-Lock 504052, Socket, Crimp, 30 AWG, Gold Plated Contacts—

$0.32

$0.10

The Story

Product Overview

Pico-Lock Wire to Board Connector System offer combination of low profile, high current and durable locking for application requiring space savings and secure mating retention.

  • Ultra-low profile mated height
  • Bevelled header pin design
  • Side positive locks
  • Up to 3A current rating (1.50 pitch version)
  • Wide robust fitting nails (solder tabs)
  • Polarization/mating guide prevents mismating
  • Top friction locks for mating retention and visual mating assurance

Applications

Automotive, Consumer Electronics, Industrial, Lighting, Communications & Networking, Communications & Networking

Product details

Technical Specifications

Product Range

Pico-Lock 504052

Contact Termination Type

Crimp

Contact Plating

Gold Plated Contacts

Wire Size AWG Min

32AWG

SVHC

No SVHC (21-Jan-2025)

Contact Gender

Socket

Wire Size AWG Max

30AWG

For Use With

Molex Pico-Lock 504051 Series Receptacle Housing Connectors

Contact Material

Copper Alloy

Other details

Brand MOLEX
Part Number 504052-0298
Quantity Each (Supplied on Cut Tape)
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
