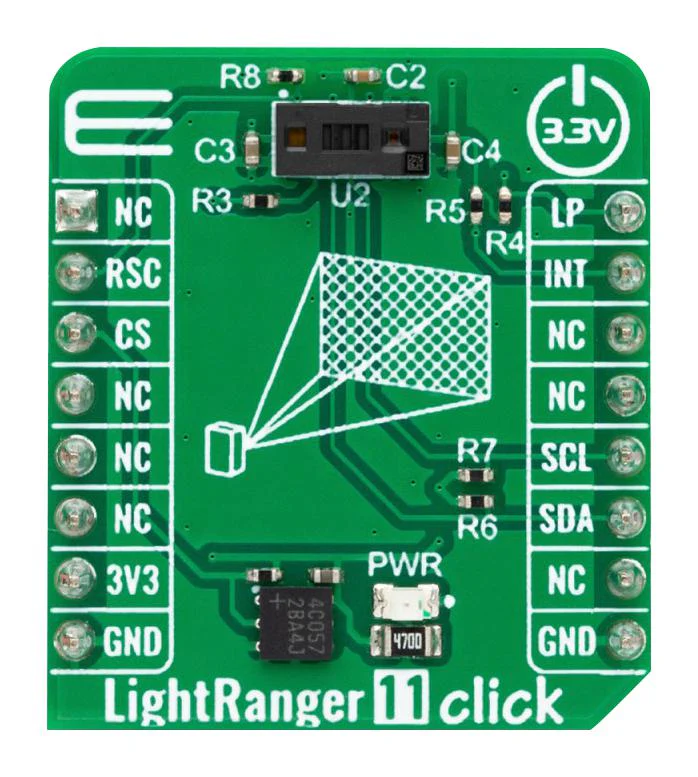

MIKROELEKTRONIKA MIKROE-5864 Add-On Board, LightRanger 11 Click, VL53L7CX, Range-Finding And Distance-Sensor, I2C, 3.3V in

MIKROE-5864 is a LightRanger 11 Click board which is a compact add-on board suitable for range-finding and distance-sensing applications. This board features the VL53L7CX, a time-of-flight 8x8 multizone ranging sensor from STMicroelectronics. It is a fast and accurate multizone distance-ranging sensor width of 90° wide FoV. The multizone-ranging output with either 4x4 or 8x8 separate zones, width multitarget detection, and distance measurement in each zone. As a multizone-ranging device, its range is only up to 350cm. This Click board� makes the perfect solution for the development of presence (object) detection applications, distance measurement, industrial ranging, inventory control, and many other applications.

• 3.3V input voltage
• Multizone ranging output with either 4x4 or 8x8 separate zones
• Multitarget detection and distance measurement in each zone
• Histogram processing and algorithmic compensation
• I2C interfaces
• Features ClickID
• mikroSDK compliant library, which includes functions that simplify software development
• 28.6 x 25.4mm click board size S
• Comes as a fully tested product, ready to be used on a system equipped with mikroBUS� socket
