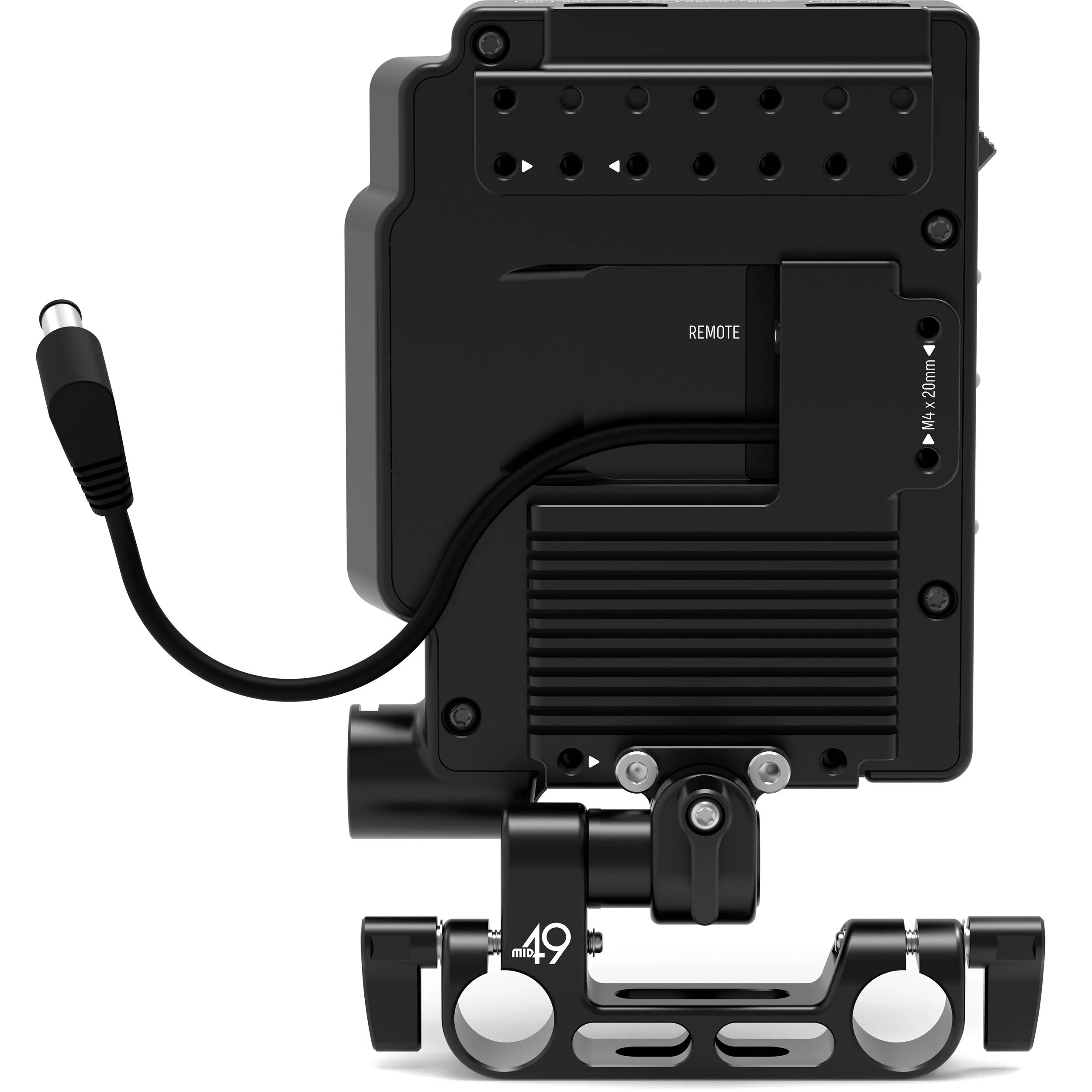

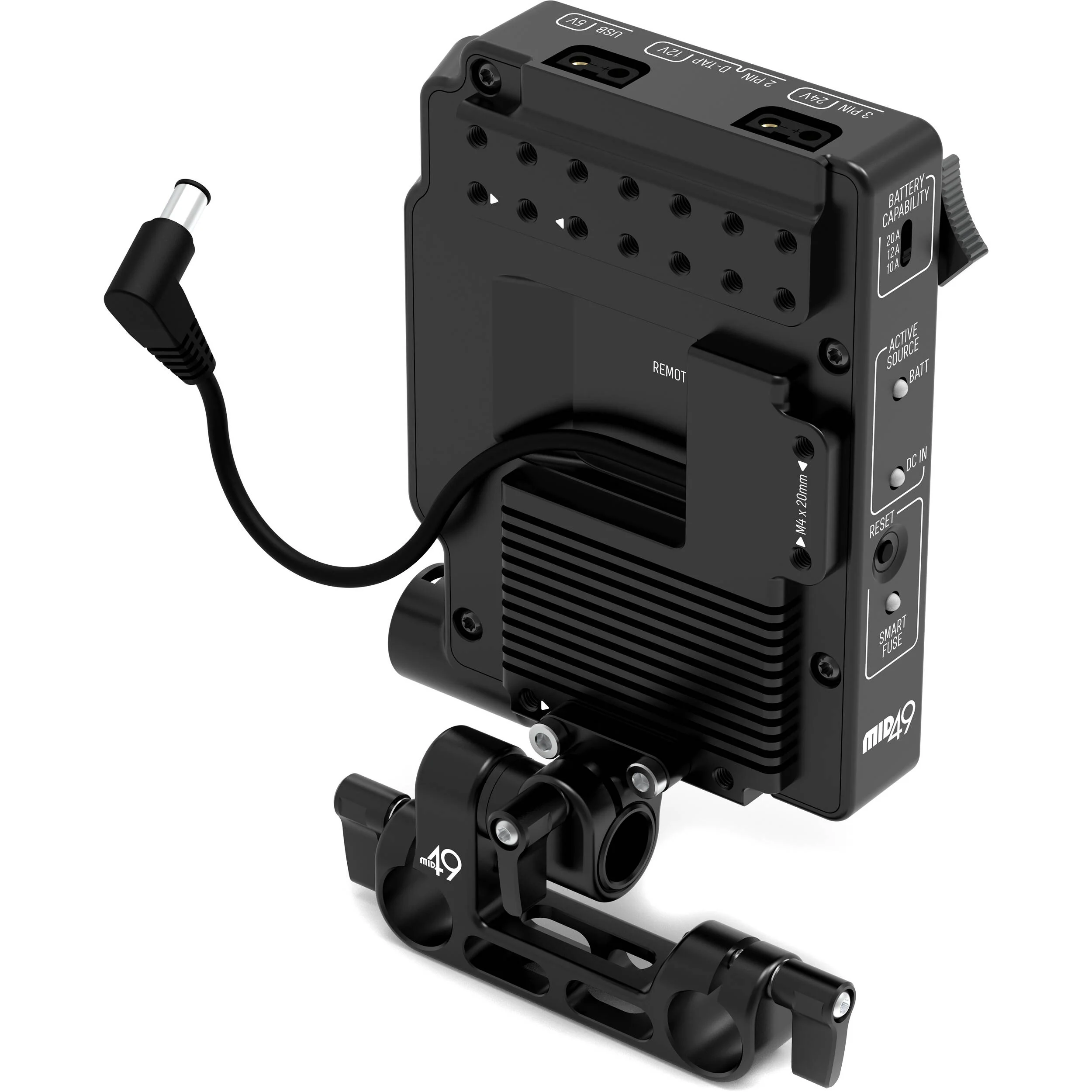

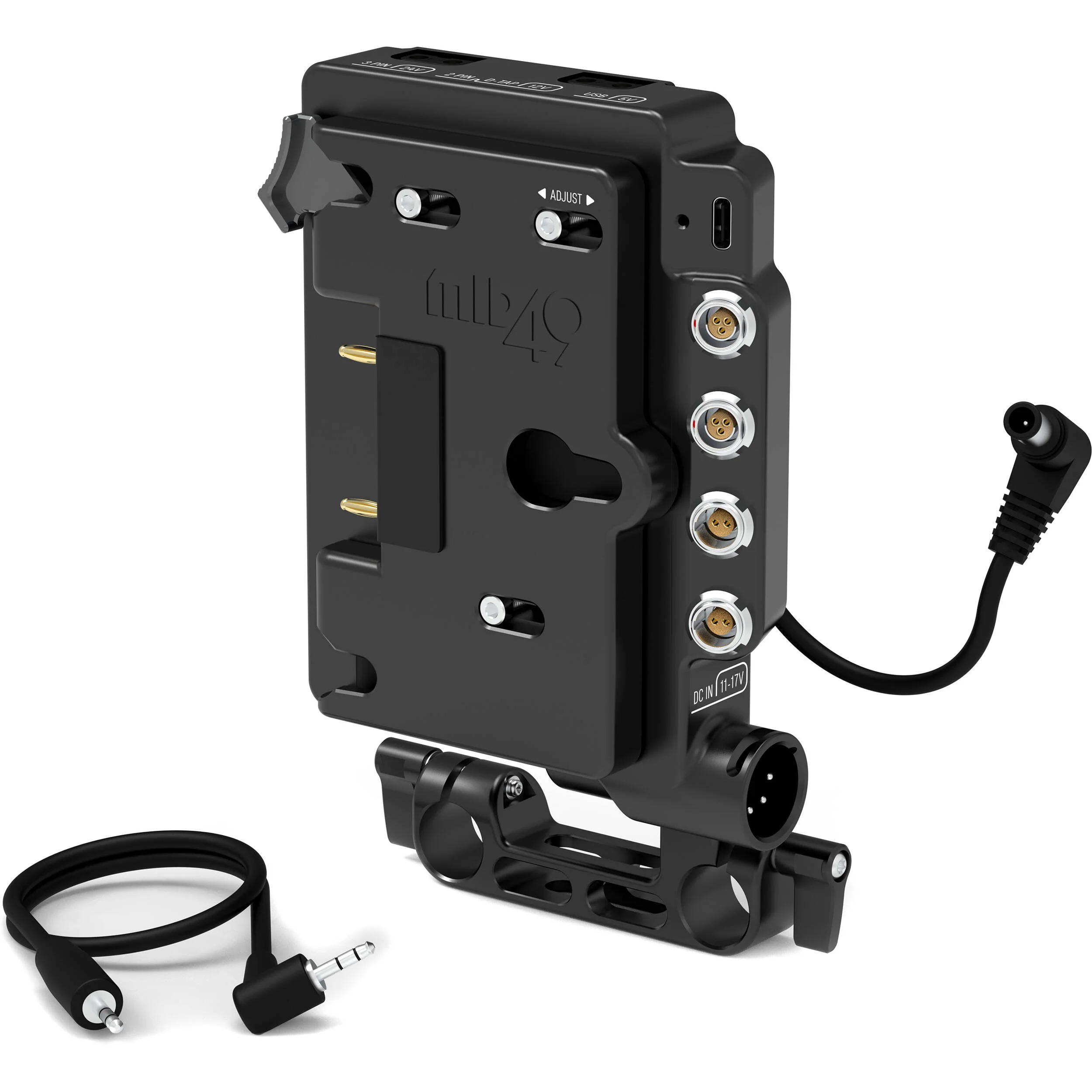

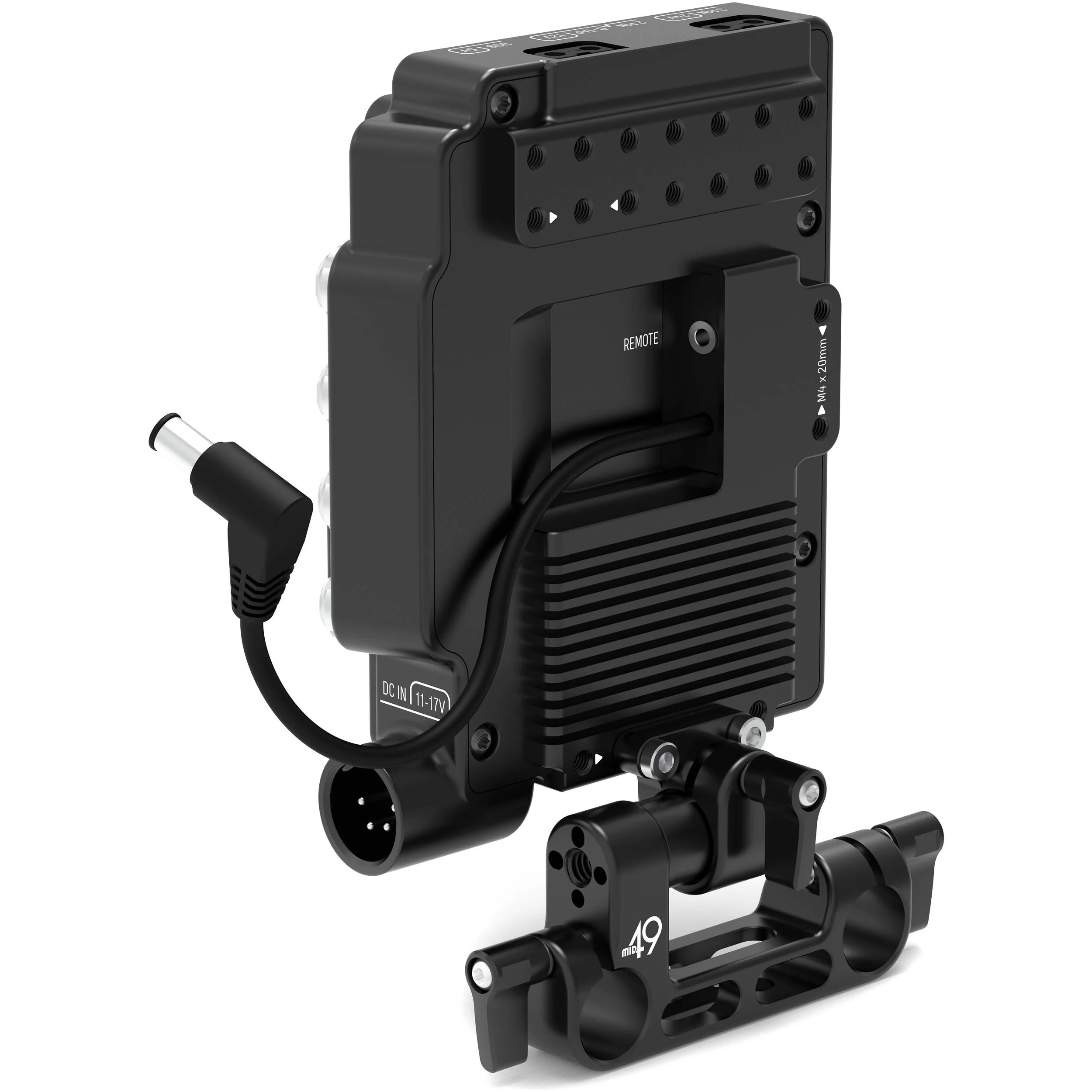

MID49 DB-11 Power Distribution Box Overview
Control power on your video rig with the Gold mount Rod-Mounted Power Distribution Box DB-11 for Sony FX6 from MID49. Designed for use with the FX6, this box uses SMART FUSE power management to monitor camera power and send the remaining energy to connected accessories. Take advantage of hot-swapping to switch between the camera battery and the connected battery. A short circuit kill switch shuts down power to protect your gear; the system can only be turned on once the short circuit has been resolved. Power ports include two D-Tap, two 3-pin LEMO with 24V, 2.5A output, two 2-pin LEMO, and a thread-lockable Power Delivery-enabled USB-C port with 5V, 3A output. A 15mm rod mount is included to mount the box further from the camera.
Items Included
- MID49 Rod-Mounted Power Distribution Box DB-11 for Sony FX6 (Gold Mount)
Additional Resources
No additional resources available
MID49 DB-11 Power Distribution Box Specs
| Camera Compatibility |
Sony FX6
|
| Plate Front / Battery Mount |
Gold Mount
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Input / Output |
1 x Mini XLR 4-Pin Output
2 x D-Tap Output 2 x LEMO 3-Pin Output 2 x LEMO 2-Pin Output 1 x USB-C Output |
| Adapter / Cable |
1 x Barrel/Coax (Built-In)
|
| Dummy Battery |
Sony BP-U Series
|
| Weight |
0.85Â lb / 386Â g
|
| Package Weight |
1.445 lb
|
| Box Dimensions (LxWxH) |
7.4 x 7.2 x 3.1"
|
