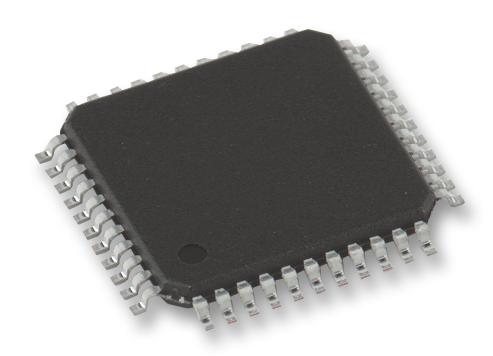

-70%Microchip PIC24FJ64GA104-I/PT PIC24FJ64GA104-I/PT 16 Bit Microcontroller General Purpose PIC24 Family PIC24FJ GA Series Microcontrollers—
$8.04
$2.41The Story
The PIC24FJ64GA104-I/PT is a 16-bit general purpose Flash Microcontroller with nanoWatt XLP technology. The low power microcontroller features 64kB flash memory, 8kB RAM and advanced peripherals. The PIC24FJ64GA104 family provides an expanded peripheral feature set and a new option for high-performance applications which may need more than an 8-bit platform, but do not require the power of a digital signal processor. The PIC24F CPU has a 16-bit (data), modified Harvard architecture with an enhanced instruction set and a 24-bit instruction word with a variable length opcode field. The Program Counter (PC) is 23 bits wide and addresses up to 4M instructions of user program memory space.
- High-performance CPU - Up to 16 MIPS performance and C compiler optimized instruction set
- System - On-chip LDO voltage regulator, JTAG boundary scan and flash memory program support
- nanoWatt power managed modes - Run, idle and sleep modes
- Analogue - 10-bit ADC, 13 channels, 500kSPS
- Peripherals - Peripheral pin select (PPS) for remapping digital peripherals to I/O
- Selectable power management modes with nanoWatt XLP technology for extremely low power
- Self-reprogrammable under software control
- Fail-safe clock monitor operation
- On-chip 2.5V regulator
- Two flexible watchdog timer (WDT) for reliable operation
- In-Circuit Serial Programming� (ICSP�) and In-Circuit Debug (ICD) via 2 pins
Computers & Computer Peripherals, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | PIC24FJ64GA104-I/PT |
| Quantity | Each |
| Technical Data Sheet EN |  |
| One Page Summary EN | |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The PIC24FJ64GA104-I/PT is a 16-bit general purpose Flash Microcontroller with nanoWatt XLP technology. The low power microcontroller features 64kB flash memory, 8kB RAM and advanced peripherals. The PIC24FJ64GA104 family provides an expanded peripheral feature set and a new option for high-performance applications which may need more than an 8-bit platform, but do not require the power of a digital signal processor. The PIC24F CPU has a 16-bit (data), modified Harvard architecture with an enhanced instruction set and a 24-bit instruction word with a variable length opcode field. The Program Counter (PC) is 23 bits wide and addresses up to 4M instructions of user program memory space.
- High-performance CPU - Up to 16 MIPS performance and C compiler optimized instruction set
- System - On-chip LDO voltage regulator, JTAG boundary scan and flash memory program support
- nanoWatt power managed modes - Run, idle and sleep modes
- Analogue - 10-bit ADC, 13 channels, 500kSPS
- Peripherals - Peripheral pin select (PPS) for remapping digital peripherals to I/O
- Selectable power management modes with nanoWatt XLP technology for extremely low power
- Self-reprogrammable under software control
- Fail-safe clock monitor operation
- On-chip 2.5V regulator
- Two flexible watchdog timer (WDT) for reliable operation
- In-Circuit Serial Programming� (ICSP�) and In-Circuit Debug (ICD) via 2 pins
Computers & Computer Peripherals, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | PIC24FJ64GA104-I/PT |
| Quantity | Each |
| Technical Data Sheet EN | |
| One Page Summary EN | |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
