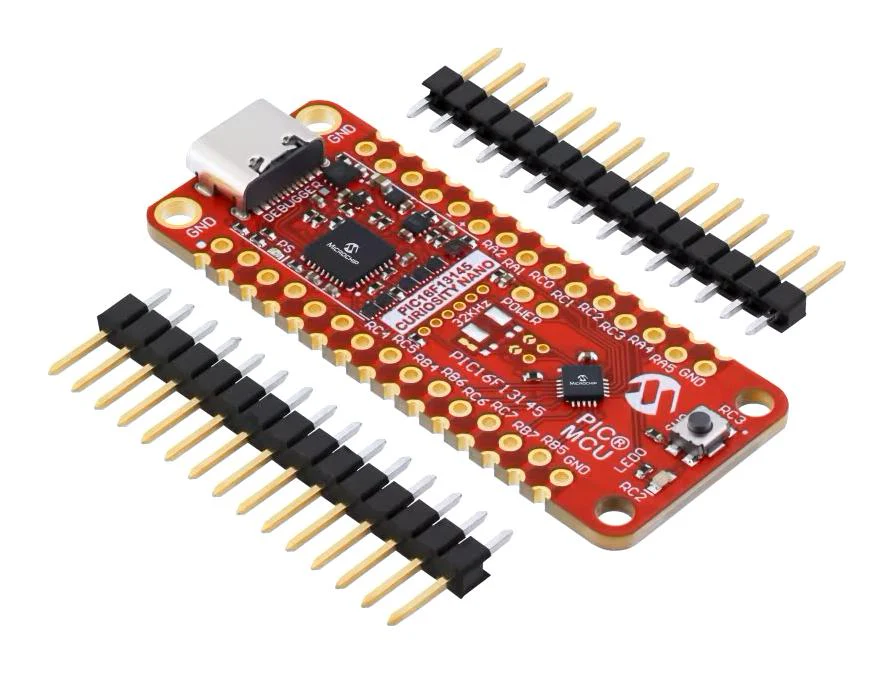

MICROCHIP EV06M52A Evaluation Kit, Curiosity Nano, PIC16F13145, 8bit, PIC16

EV06M52A is a Curiosity Nano evaluation kit, a hardware platform to evaluate the PIC16F13145 microcontroller. Supported by the Microchip MPLAB X integrated development platform, the kit provides access to the features of the PIC16F13145 and explains how to integrate the device into a custom design. The Curiosity Nano series of evaluation kit includes an on-board debugger, and no external tools are necessary to program and debug the PIC16F13145.

• On board : USB Type-C® connector
• One mechanical user switch
• One green power and status LED
• Footprint for 32.768kHz crystal
• On-board debugger support in Microchip MPLAB® X IDE: board identification, virtual serial port(CDC)
• Programming and debugging, one debug GPIO channel (DGI GPIO)
• USB powered
• Adjustable target voltage: MIC5353 LDO regulator controlled by the on-board debugger
• 1.8 to 5.1V output voltage (limited by USB input voltage)
• 500mA maximum output current (limited by ambient temperature and output voltage)
