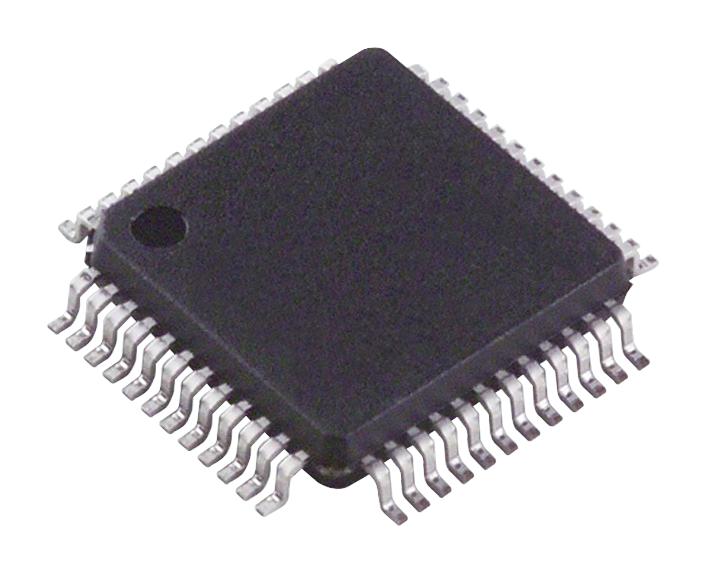

MICROCHIP ATSAMD21G17A-AU ARM MCU, SAM D Series, SAM 32 Family SAM D21 Series Microcontrollers, ARM Cortex-M0+, 32 bit

The ATSAMD21G17A-AU is a SMART SAMD21 series 32-bit Low-power Microcontroller based on the high-performance ARM Cortex-M0+ RISC processor. It operates at a maximum speed of 48MHz and features 128kB of flash memory and 16kB of SRAM. Peripherals include six serial communication modules (SERCOM) configurable as UART/USART, three 16-bit timers/counters, 32-bit Real-Time Clock and calendar, 20 PWM channels, one 14-channel 12-bit ADC, one 10-bit DAC, Full Speed USB Device and embedded host and support for up to 120 touch channels. The device operates from 1.62 to 3.63V.

• ARM Cortex-M0+ CPU running at up to 48MHz
• Single-cycle hardware multiplier
• Micro trace buffer (MTB)
• Power-on reset (POR) and brown-out detection (BOD)
• External interrupt controller (EIC)
• 16 External interrupts
• One non-maskable interrupt
• Two-pin serial wire debug (SWD) programming, test and debugging interface
• Idle and standby sleep modes
• SleepWalking peripherals
• 12-channel Direct memory access controller (DMAC)
• 12-channel Event system
• 32-bit Real-time counter (RTC) with clock/calendar function
• Watchdog timer (WDT)
• CRC-32 generator
• One full-speed (12Mbps) Universal serial bus (USB) 2.0 interface
• Peripheral touch controller (PTC)
• Easy pin migration to SAMD21G and SAMD21J devices

Applications

Lighting, Consumer Electronics
