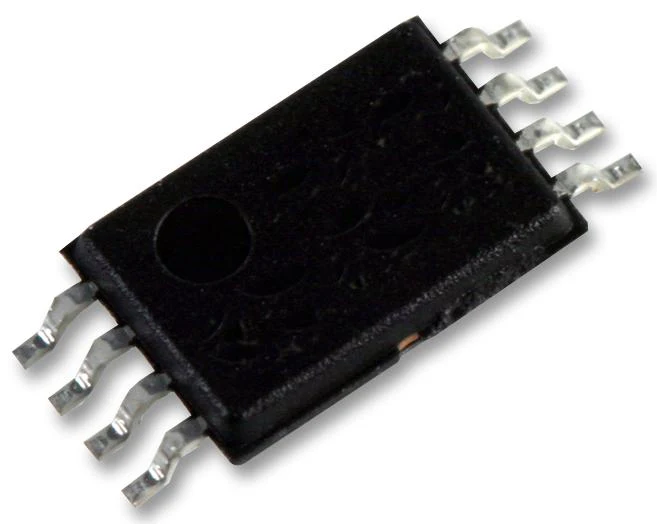

-70%Microchip AT24C512C-XHD-B Eeprom 512 Kbit 64K x 8bit Serial I2C (2-Wire) 1 MHz Tssop 8 Pins—
$1.33
$0.40The Story
The AT24C512C-XHD-B is a 512kB Serial EEPROM IC with full memory write-protect, supports up to four devices on a single 2-wire bus. The EEPROM is organized as 65,536 words x 8-bit. Optimized for applications where low-power and low-voltage operations are essential. The EEPROM operates from 2.5 to 5.5VCC.
- 2-wire Serial interface
- Schmitt trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 400kHz (1.7V) and 1MHz (2.5, 5.5V) compatibility
- Write protect pin for hardware data protection
- 128-byte page write mode - Partial page writes allowed
- Random and sequential read modes
- Self-timed write cycle (5ms maximum)
- High reliability - 1,000,000 write cycles endurance
Industrial, Commercial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | AT24C512C-XHD-B |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
