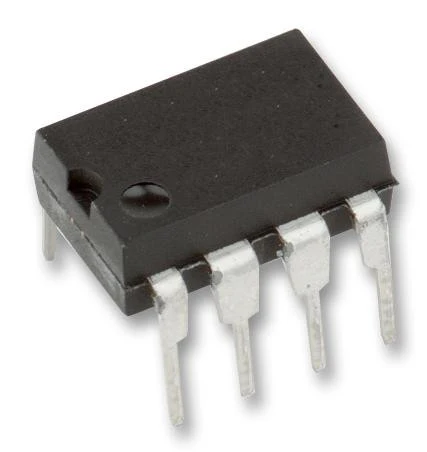

-70%MICROCHIP 24AA1025-I/P EEPROM, I2C, 1 Mbit, 128K x 8bit, 400 kHz, DIP, 8 Pins—
$7.03
$2.11The Story
The 24AA1025-I/P is a 1024kB I�C CMOS serial Electrically Erasable Programmable Read-Only Memory (EEPROM) capable of operation across a broad voltage range 1.7 to 5.5V. It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device has both byte write and page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads. Reads may be sequential within address boundaries 0000h to FFFFh and 10000h to 1FFFFh. Functional address lines allow up to four devices on the same data bus. This allows for up to 4Mb total system EEPROM memory.
- Low-power CMOS technology
- 2-wire serial interface (I�C� compatible)
- Cascadable up to four devices
- Schmitt trigger inputs for noise suppression
- Output slope control to eliminate ground bounce
- 100 and 400kHz Clock compatibility
- Page write time 3ms typical
- Self-timed erase/write cycle
- 128byte Page write buffer
- Hardware write-protect
- ESD protection >4000V
- More than 1million erase/write cycles
- Data retention >200 years
Applications
Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics, Automotive
Product details
| Operating Temperature Min | -40�C |
| Operating Temperature Max | 85�C |
| Clock Frequency | 400kHz |
| No. of Pins | 8Pins |
| Memory Size | 1Mbit |
| Product Range | 1Mbit Serial I2C EEPROMs |
| Memory Case Style | DIP |
| Supply Voltage Min | 1.7V |
| IC Interface Type | I2C |
| EEPROM Memory Configuration | 128K x 8bit |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | 24AA1025-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
