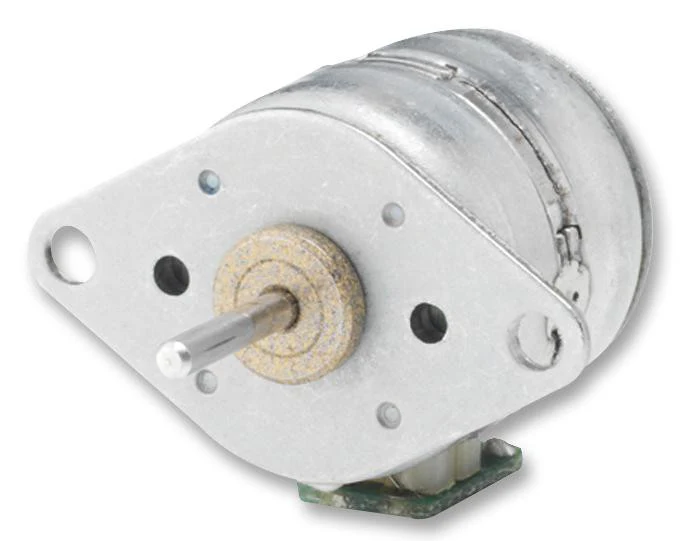

-70%MCLENNAN 15M020D1B Stepper Motor, 0.388 N-cm, 125 mA, Four, 40 ohm, 14 mH—
$47.28
$14.18The Story
The 15M020D1B is a 4-phase permanent magnet Instrument Stepper Motor with 18° angle, 0.00011kgcm² rotor inertia and 14mH inductance. The M-series motors offer excellent performance. The motors fitted with gear heads where increased torque and resolution are required at reduced operating speed. Suitable for use with unipolar or bipolar drive circuits.
- 4 Number of leads or terminals
Applications
Motor Drive & Control, Sensing & Instrumentation
Product details
| Inertia | 0.11g-cm² |
| Coil Type | - |
| Resistance | 40ohm |
| Current Rating | 125mA |
| Torque Max | 0.388N-cm |
| Product Range | - |
| No. of Phases | Four |
| Inductance | 14mH |
Other details
| Brand | MCLENNAN |
| Part Number | 15M020D1B |
| Quantity | Each |
| Technical Data Sheet EN |  |
