$295.68The Story

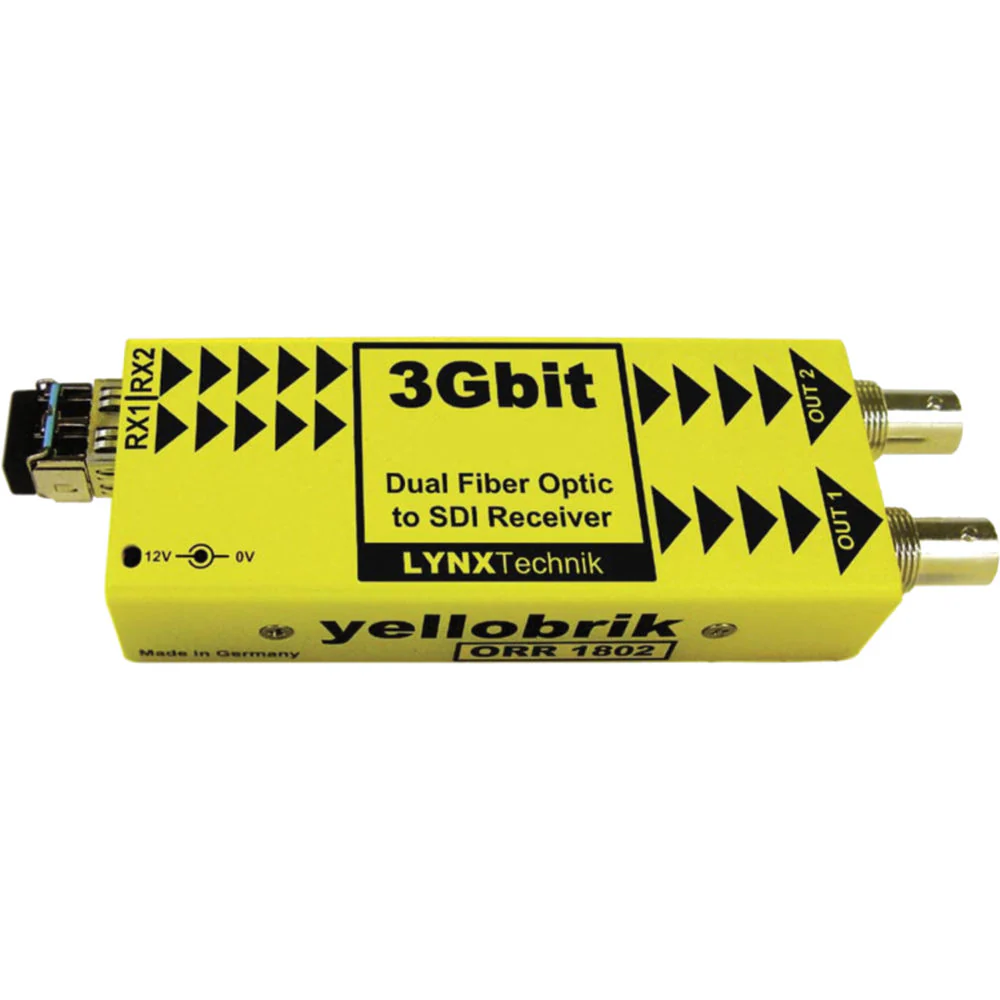

The Lynx Technik AG yellobrik ORR 1802 Dual Channel 3Gbit SDI to Fiber Receiver is designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
This receiver, when paired with a dual-channel fiber optic transmitter (e.g. yellobrik OTT 1812, OTT 1842), provides a dual-channel optical transmission system for signals up to 1080p60 (3 Gb/s), while preserving full uncompressed quality.
The ORR 1802 Receiver is compatible with any video signal according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards, as well as DVB-ASI.
- Supports SDI video inputs up to 3 Gb/s (1080p60)
- Dual channel
- Error-free optical transmission
- 1,260 to 1,620 nm input range
- Duplex LC/PC single-mode optical connection
- Supports hot swapping and hot plugging
Lynx Technik AG O RR 1802 specs
| Optical I/O | |
|---|---|
| Connectors | 2 x Fiber optic inputs Duplex (single-mode) using LC/PC Connections |
| Standards | SMPTE 297M - 2006 Hot pluggable |
| Wavelength | 1,260 to 1,620 nm |
| RX Sensitivity | -3 to -16 dBm RX active LED on side of module (SMF) Single Mode Fiber |
| SDI Video Output | |
|---|---|
| Connector | 2 x SDI video on 75 ? BNC connector |
| Standard | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI |
| Operation | Multi-standard operation from 270 Mb/s to 3 Gb/s |
| Return Loss | >15 dB to 1.5 GHz and >10 dB up to 3 GHz |
| Power | |
|---|---|
| Power Supply | 12 VDC Supports external power input from 9 to 14 VDC Power LED on side of module |
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 5.5 x 1.6 x 8.6" (14.0 x 4.2 x 22.0 cm) (length including connectors) |
| Weight | 4.4 oz (125.0 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 10.4 x 9.0 x 3.6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
