$295.68The Story

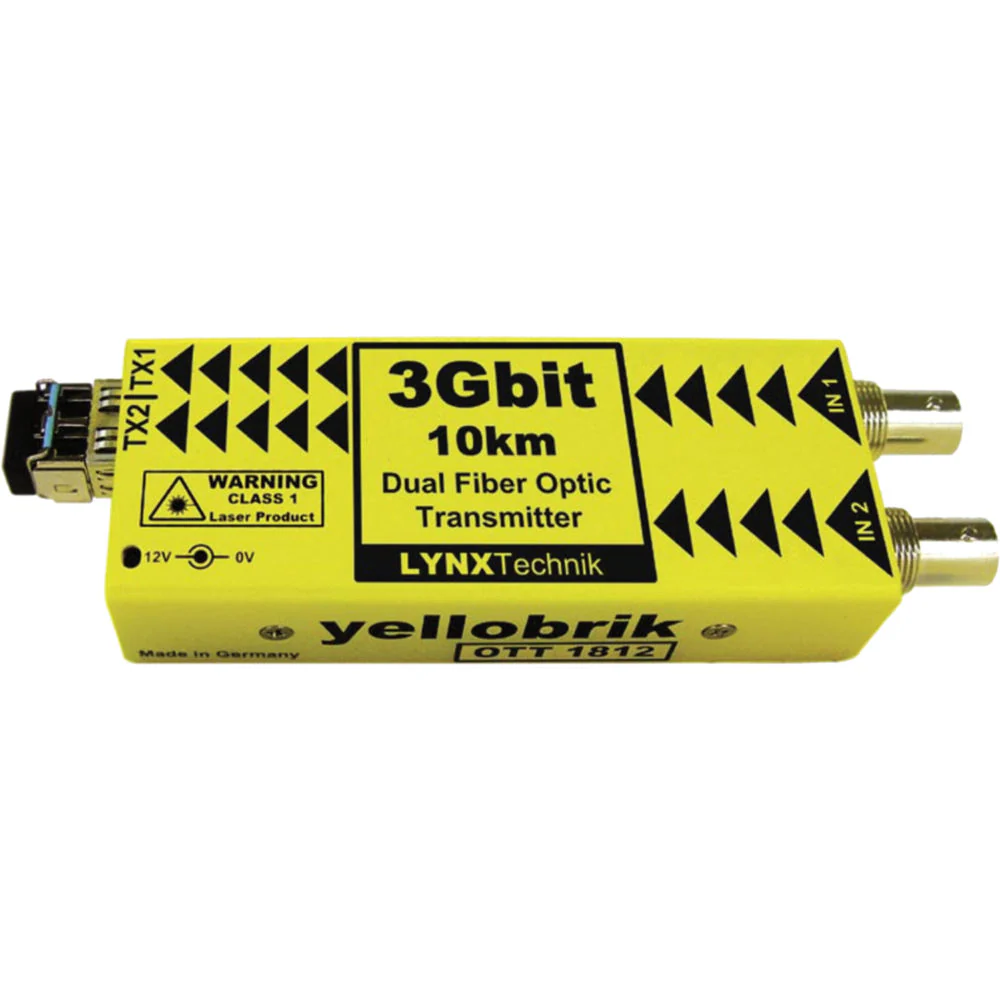

The Lynx Technik AG Dual-Channel 3Gbit SDI to Fiber Transmitter (6.2 mi) is designed to combat the restrictions involved with the distribution of uncompressed broadcast-quality video signals over a long distance.
Pairing of this transmitter with the dual-channel ?ber optic to SDI receiver (such as yellobrik ORR 1802) acts as a dual-channel optical transmission system for signals up to a resolution of 1080p60 (3Gbit/s) while preserving full uncompressed quality.
Each channel is fully independent and will auto-detect any video signal from 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M, and SMPTE 259M standards, as well as DVB-ASI.
Note: Fiber optic cable sold separately.
- Supports SDI video inputs up to 3Gbit/s (1080p60)
- Dual-channel support
- Error-free optical transmission
- Allows for signal transmission up to 6.2 mi at a rate of 3Gbit/s
- Duplex LC/PC single mode optical connection
- Supports hot swapping and hot plugging
| Input | 2 x SDI video on 75 ? BNC connector SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI Multi-standard operation from 270 Mbit/s to 3 Gbit/s Multi-rate reclocking 270 Mbit/s - 1.48 Gbit/s - 2.97 Gbit/s Return Loss: >15 dB to 1.5 GHz and >10 dB up to 3 GHz Automatic cable EQ (Belden 1694A cable) 820' (250 m) at 270 Mbit/s, 459' (140 m) at 1.5 Gbit/s, 262' (80 m) at 3 Gbit/s |
| Optical Outputs | 2 x Fiber optic outputs Duplex (single mode) using LC/PC connections SMPTE 297M - 2006 Wavelength: 1310 nm (each channel) Optical Power: -5 dBm (each channel) TX active LEDs on the side of the module Maximum Distance: 6.2 mi (10 km) at 3 Gbit/s (Single mode) |
| Power | 12 VDC power supply (included) Supports external power input from 9 to 14 VDC Power LED on side of module |
| Dimensions (L x W x H) | 5.5 x 1.6 x 8.7" (14.0 4.2 x 22.0 cm) (length including connectors) |
| Weight | 4.4 oz (125.0 g) |
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 10.3 x 9.2 x 3.5" |
