$3.11

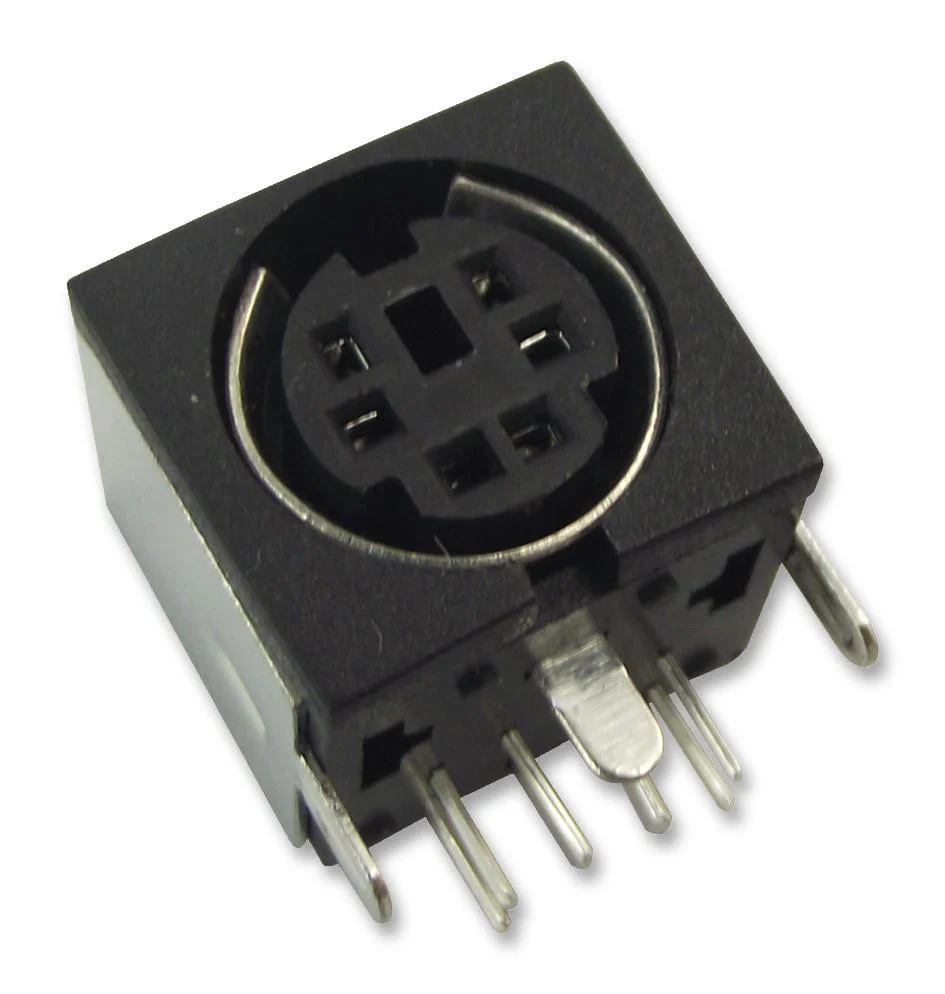

LUMBERG TM 0508 A/8 DIN Audio / Video Connector, 8 Contacts, Socket, PCB Mount, Silver Plated Contacts, Brass Body—
$3.11
The Story
The TM 0508 A/8 is a 8-pole Miniature Circular Connector, right angle version, shielded for printed circuit boards. UL94V-0 flame-rated polybutylene terephthalate (PBT) insulating body, gold-plated CuSn contacts. The socket is suitable for use with MP-371 miniature plug.
- 9.8 to 49N (�30% after test) Insertion force
- 7.8 to 34.3N (�30% after test) Withdrawal force
- >=1000 Mating cycles
- <=50mR Contact resistance
- <=1A AC, <=2A DC Current rating
- <=100VAC, <=12VDC Voltage rating
- 100MR Insulation resistance
Applications
Industrial, Audio, Imaging, Video & Vision
Product details
| No. of Contacts | 8Contacts |
| Contact Plating | Silver Plated Contacts |
| Gender | Socket |
| Product Range | - |
| Connector Body Material | Brass Body |
| Connector Mounting | PCB Mount |
Other details
| Brand | LUMBERG |
| Part Number | TM 0508 A/8 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
