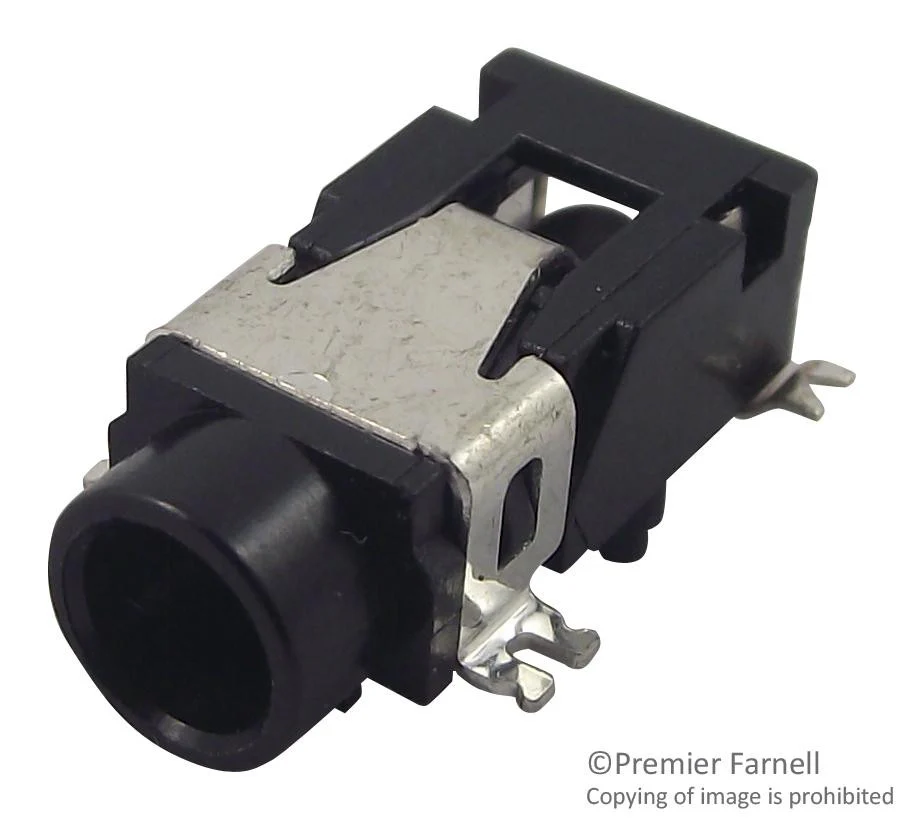

-70%LUMBERG 1503 02 Phone Audio Connector, 3 Contacts, Socket, 3.5 mm, Surface Mount, Silver Plated Contacts—
$3.08
$0.92The Story
The 1503 02 from Lumberg is a 3.5mm, 3pole stereo jack socket connector. The angular version jack chassis socket are according to JIS C 6560 JC35J3A standard for printed circuit boards, surface mounting technology (SMT) and manual soldering only.
- Rated current of 1A
- Rated voltage of 34VAC/VDC
- Insulating body material is polybutylene terephthalate, UL94-HB rated
- Copper alloy, tin/silver plated contact
- Mating with 1532 01,KLS 40, KLS 41, KLS 44, WKLS 40 jack plugs
- Temperature range from -20°C to 70°C
Applications
Audio, Industrial
Product details
| No. of Contacts | 3Contacts |
| Contact Plating | Silver Plated Contacts |
| Gender | Socket |
| Product Range | - |
| Pin Diameter | 3.5mm |
| Connector Body Material | Metal Body |
| Connector Mounting | Surface Mount |
Other details
| Brand | LUMBERG |
| Part Number | 1503 02 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
