Lilliput TK700-NP/C 7" Class WVGA LCD Monitor

WVGA (800 x 480) Native Resolution

1000 cd/m² Brightness

500:1 Contrast Ratio

HDMI, VGA, 2x RCA Composite Video Inputs

Add a high-brightness display to your system with the Lilliput TK700-NP/C 7" Class WVGA LCD Monitor . It has a native resolution of WVGA 800 x 480 with support for signals up to 4K at 30 fps. With a brightness rating of 1000 cd/m² and a contrast ratio of 500:1, the display is designed to appear clear and vibrant in most installation settings. The monitor is equipped with HDMI, VGA, and two RCA composite video inputs, 1/8" audio input, 1/8" headphone output, and a built-in speaker.

High-Brightness Display The TK700-NP/C features 800 x 480 resolution, 1000 cd/m² of brightness, and a 500:1 contrast ratio for use in various environments, such as human-machine interfaces, entertainment, retail, supermarkets, malls, CCTV monitoring, control machines, and more. Interface Options The display features HDMI, VGA, and two RCA composite video input signals to meet the needs of various professional display applications. Metal Housing The metal housing helps protect the display from damage, extending its life. Open Frame The open frame design allows for various mounting options, including rear, wall, desktop, and roof mounting.

Screen Size (Diagonal)	7"
Resolution	800 x 480
Supported Display Resolutions	Maximum: 3840 x 2160 / 30 Hz
Panel Type	LCD
Brightness	1000 cd/m²
Viewing Angle (H x V)	140 x 120°
Aspect Ratio	15:9
Contrast Ratio	500:1

Primary Connectivity Location	Display

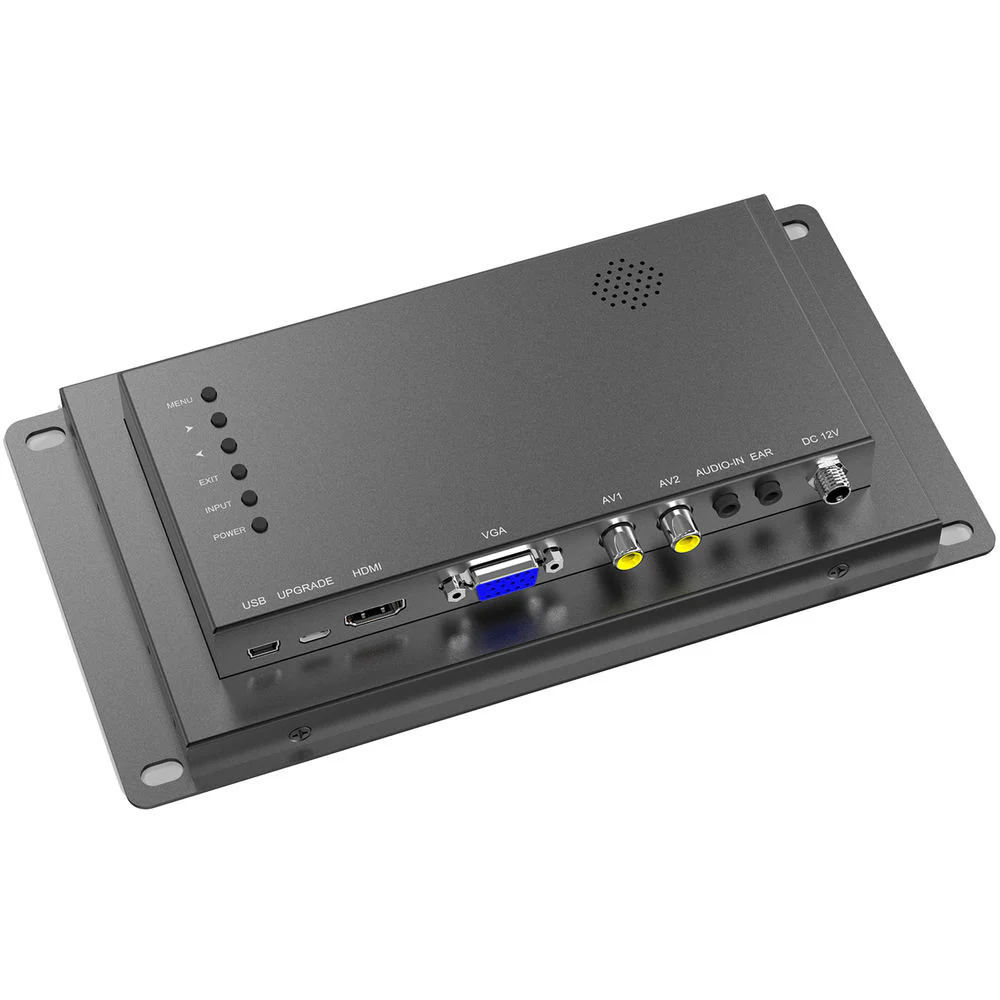

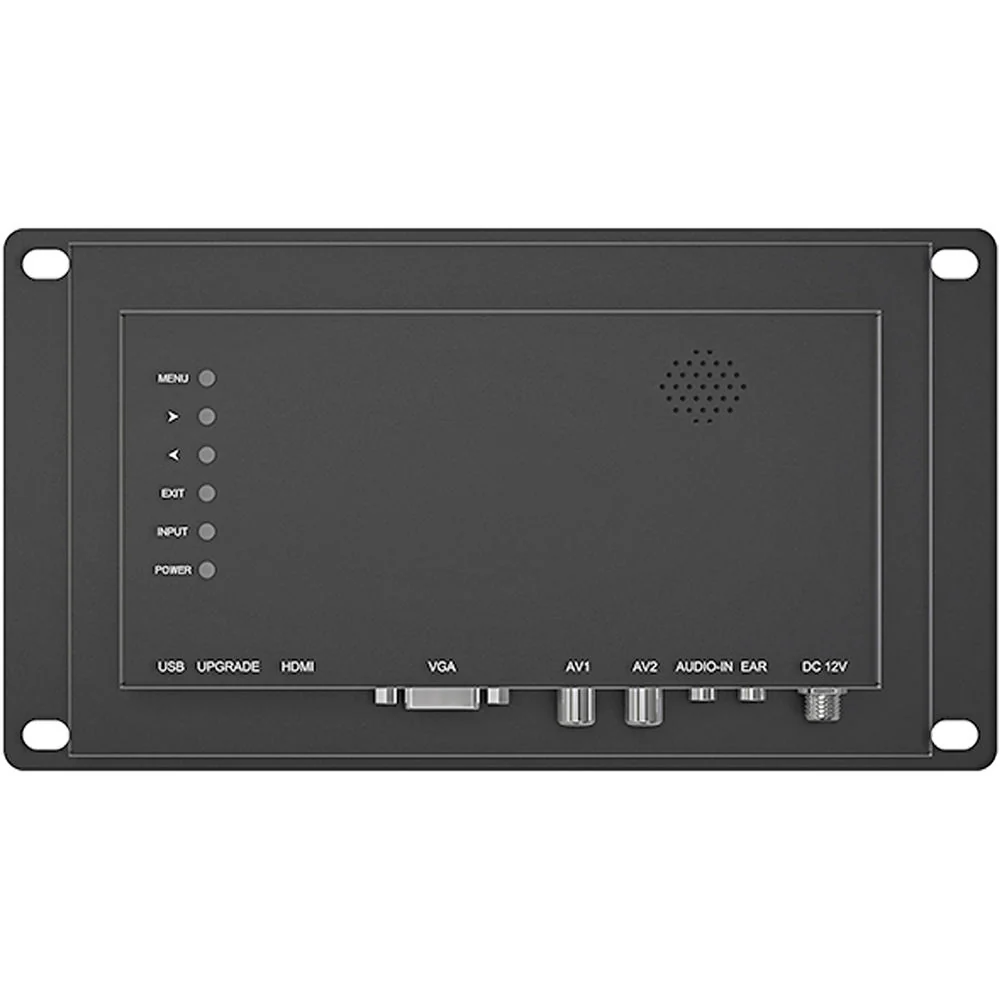

Input Ports	1 x HDMI � Audio, Video (Bottom) 1 x 15-Pin VGA � Video (Bottom) 2 x RCA Composite � Audio, Video (Bottom) 1 x 1/8" / 3.5 mm � Audio (Bottom)
Output Ports	1 x 1/8" / 3.5 mm � Headphone (Bottom)
USB Ports	1 x USB (Version Unspecified) Mini-B (Bottom) 1 x USB (Version Unspecified) Micro-B - Service (Bottom)

Built-In Speakers

Yes, 1 W

Power Consumption	Operational: < 8.5 W
DC Input Power	10 to 24 VDC

Operating Temperature	-4 to 140°F / -20 to 60°C
Storage Temperature	-22 to 158°F / -30 to 70°C

Material of Construction	Metal
Dimensions	11.0 x 7.7 x 1.4" / 279.6 x 195.5 x 36.1 mm
Weight	2.09 lb / 950 g

Package Weight	3.78 lb
Box Dimensions (LxWxH)	10.6 x 6.6 x 4.6"
