Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
HomeStore

Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)

Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)

$324.54

Original: $1,081.81

-70%
Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)—

$1,081.81

$324.54

The Story

Libec NH Series Video Head Overview

Designed to support small camera rigs weighing up to 8.8 lb, the NH10 75mm Ball/Flat Base Video Head with Pan Handle from Libec features a unified ball/flat mount design. The base of the tripod can fit either in a standard 75mm bowl or on a flat mount with a 3/8"-16 screw. Having both options available means you can transfer the head from a tripod with a bowl mount to a flat mount slider.

To achieve proper balance, the NH10 head includes a snap-on/off camera plate that can slide up to 1.2" of fore/aft adjustment, and it features 1/4"-20 and 3/8"-16 camera mounting screw options. The screw and locating pin are moveable to orient the plate on the camera to achieve the best possible balance. Once the camera is balanced, the continuous counterbalance and pan/tilt drag controls provide smooth movement. On the side, there are 1/4"-20 and 3/8"-16 threads to mount a variety of accessories such as a light, monitor, or extension arm.

Included with the NH10 is a pan handle that can be placed on the right or left side of the head by screwing it onto one of the mounts. The LED-illuminated bubble level helps to level the camera on uneven surfaces, even in low light.

In the Box

  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Pan Handle
  • Quick Release Plate
  • 1/4"-20 Screw
  • 3/8"-16 Screw

    Libec NH Series Video Head Specs

    Camera Plate
    Camera Plate Features Sideload, Sliding Balance Plate
    Camera Mounting Screw 1 x 1/4"-20 Male with Locating Pin
    1 x 3/8"-16 Male with Locating Pin
    Balance Plate Sliding Range 1.2" / 30.5 mm
    Safety Lock Yes
    Head
    Base Mount 3/8"-16 Female
    75 mm Half Ball
    Flat Base
    Counter Balance Continuous 5-Step (0 to 5.5 lb / 0 to 2.5 kg)
    Pan Handle Fittings 2
    Bubble Level 1 x Illuminated
    Accessory Mounting 1 x 1/4"-20 Female Thread
    1 x 3/8"-16 Female Thread
    Base Diameter 2.95" / 75 mm
    Pan & Tilt
    Drag Control Tilt: Continuous 3-Step
    Pan: Continuous 3-Step
    Drag Type Friction
    Vertical Tilt +90° to -70°
    Independent Pan Lock Yes
    Independent Tilt Lock Yes
    General
    Load Capacity 8.8 lb / 4 kg
    Operating Temperature -40 to 140°F / -40 to 60°C
    Weight 4 lb / 1.8 kg
    Packaging Info
    Package Weight 5.295 lb
    Box Dimensions (LxWxH) 15.8 x 8.4 x 6"

    Libec NH Series Video Head Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

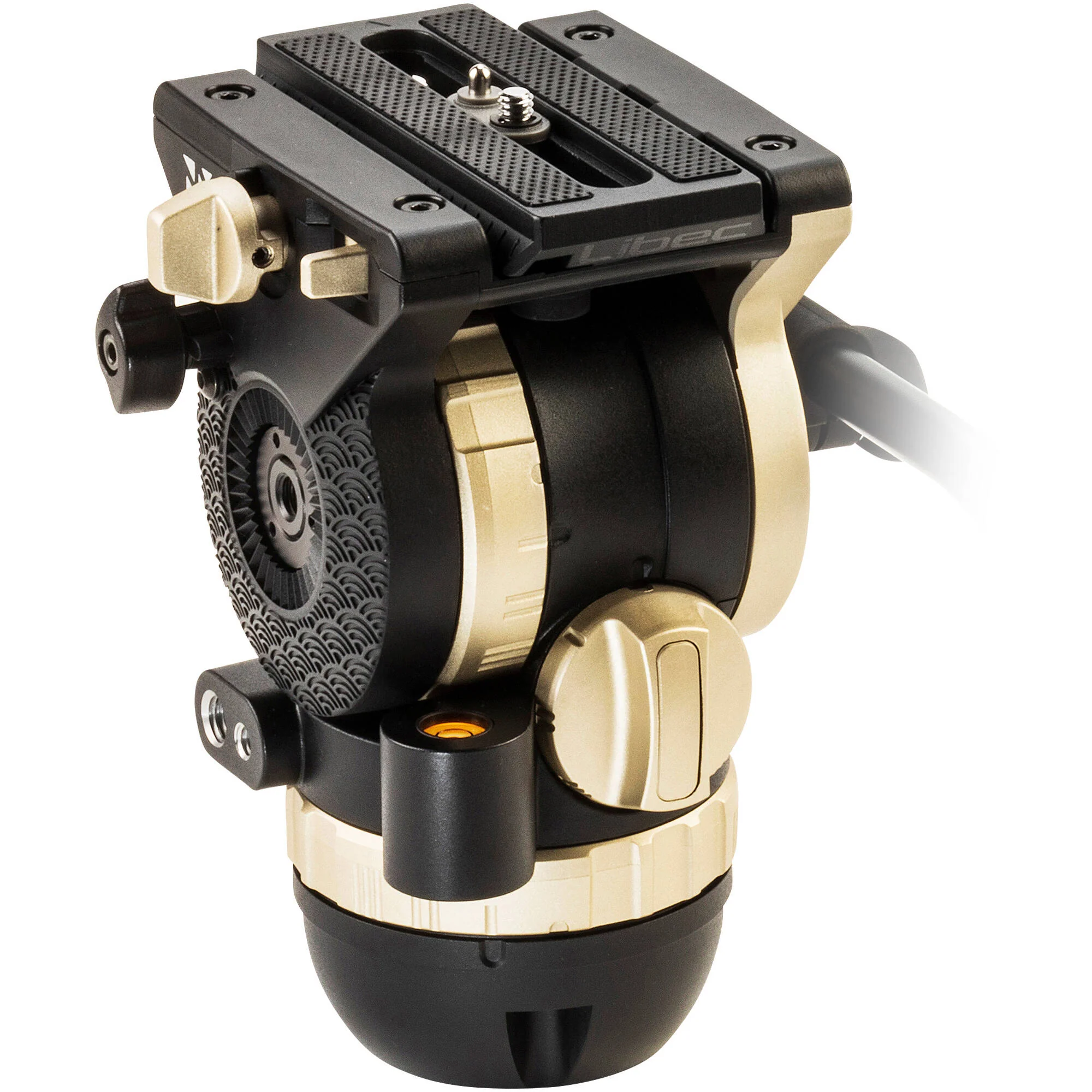

    Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

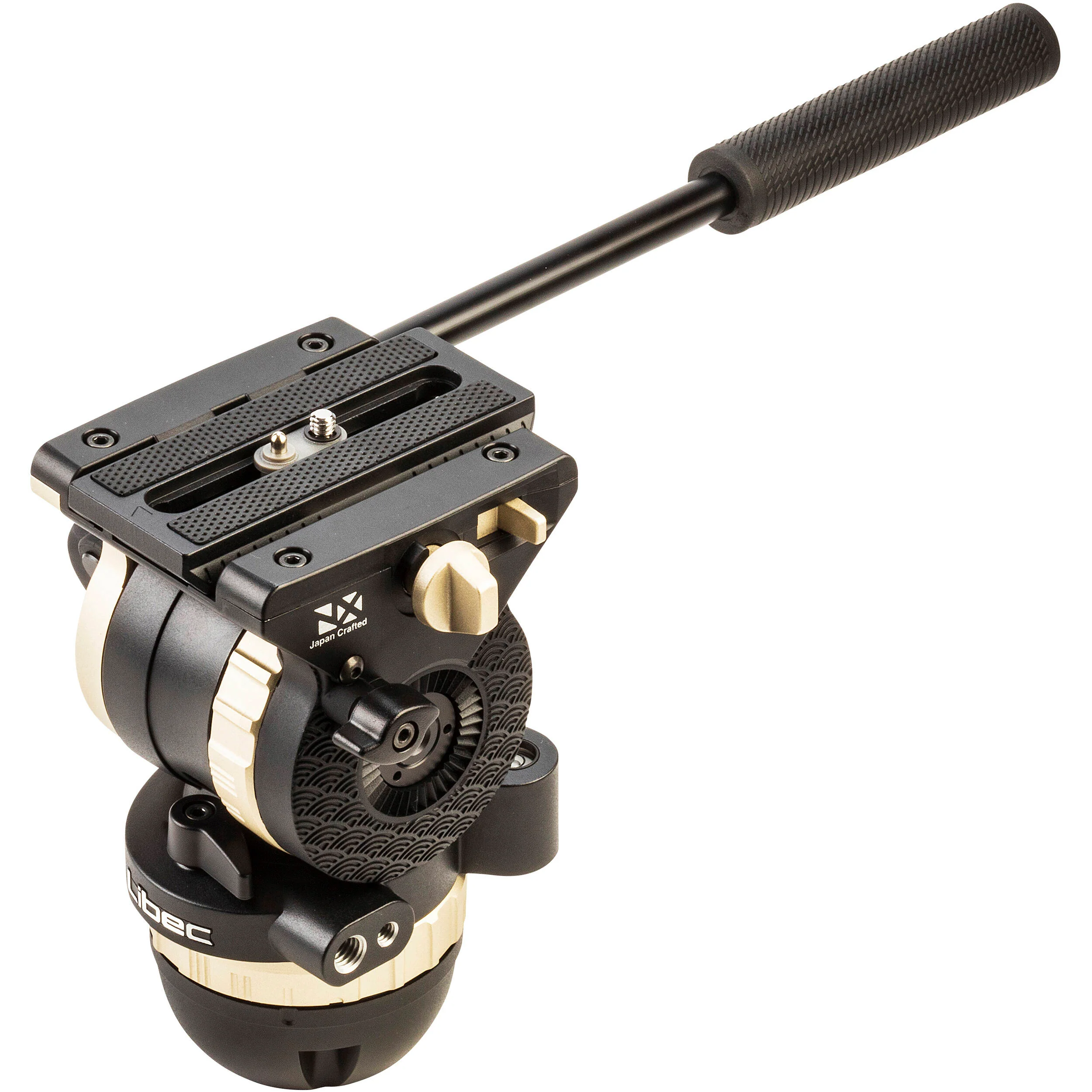

    Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

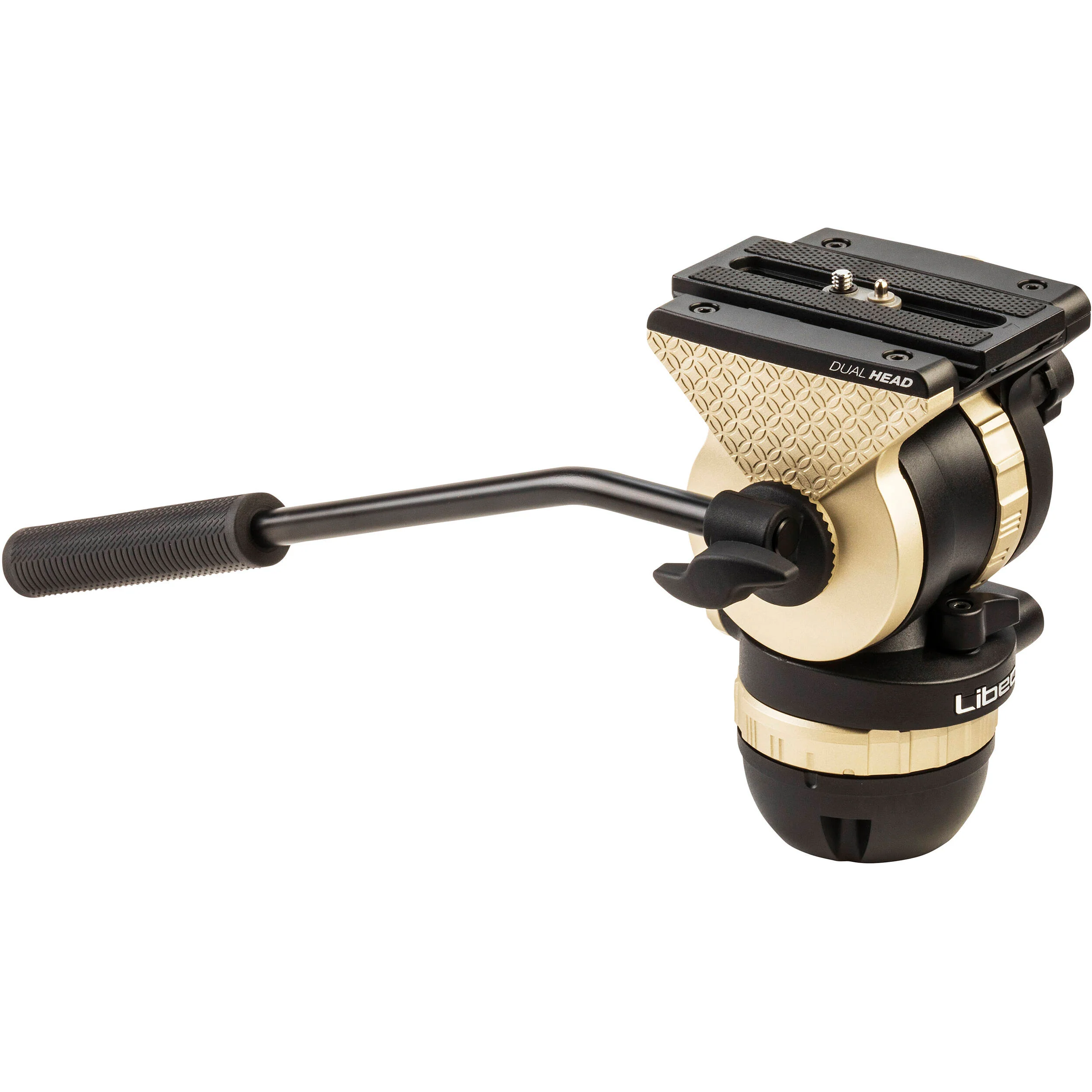

    Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload) - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

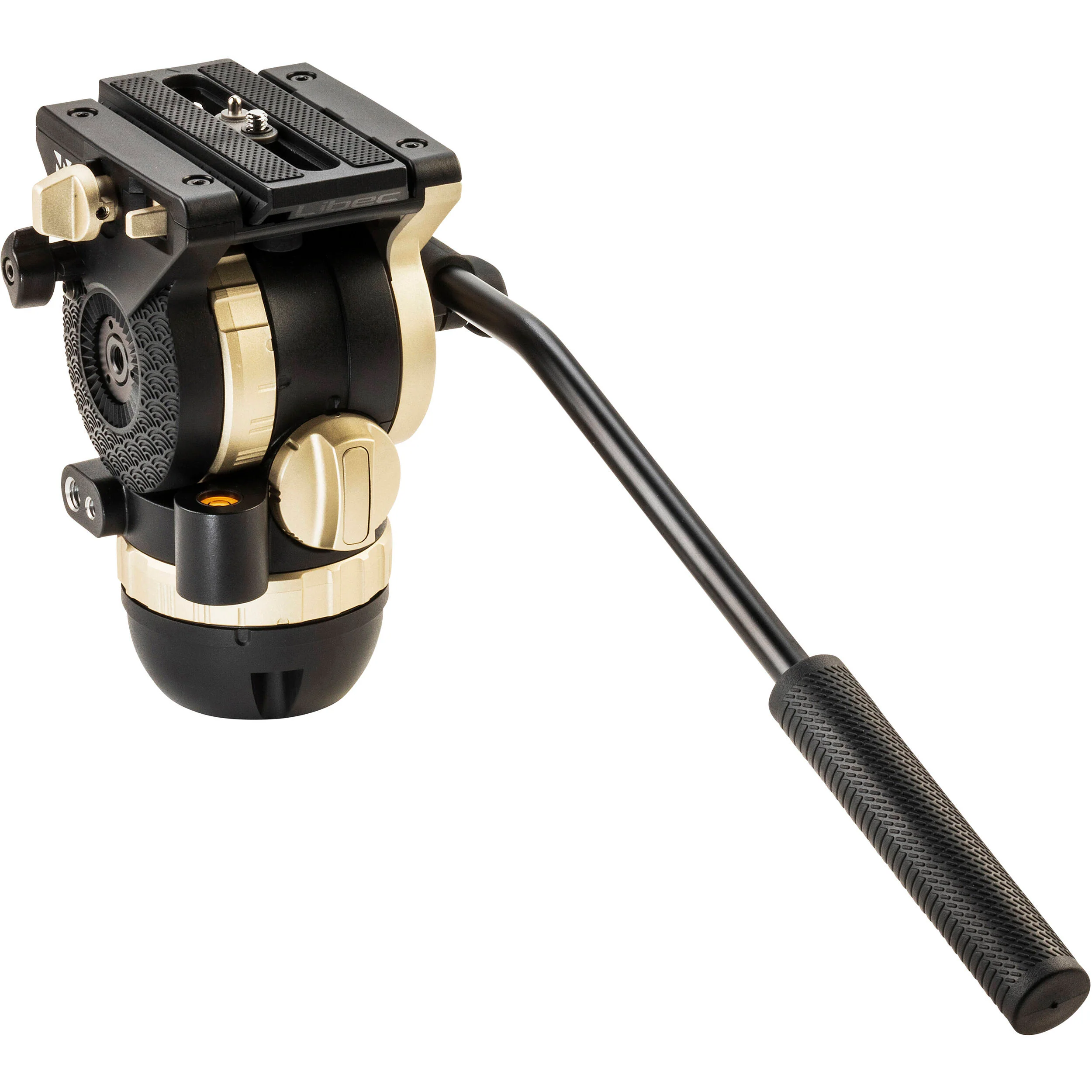

    Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload) - Image 5

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

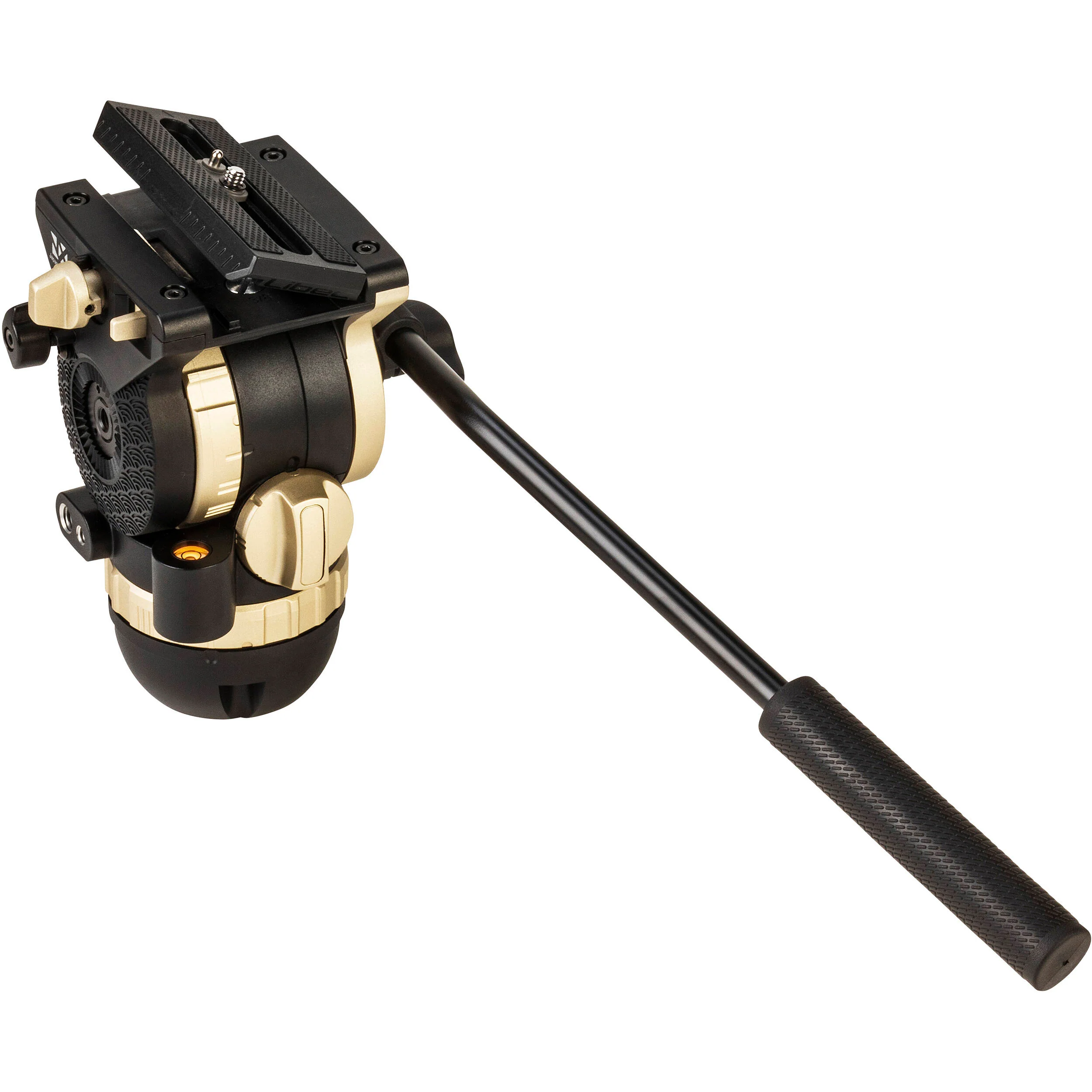

    Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload) - Image 6

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

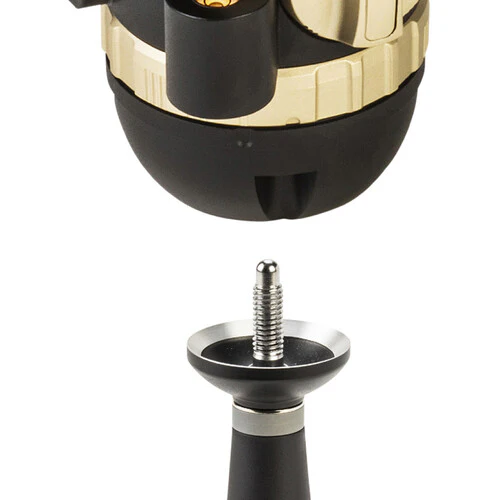

    Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload) - Image 7
