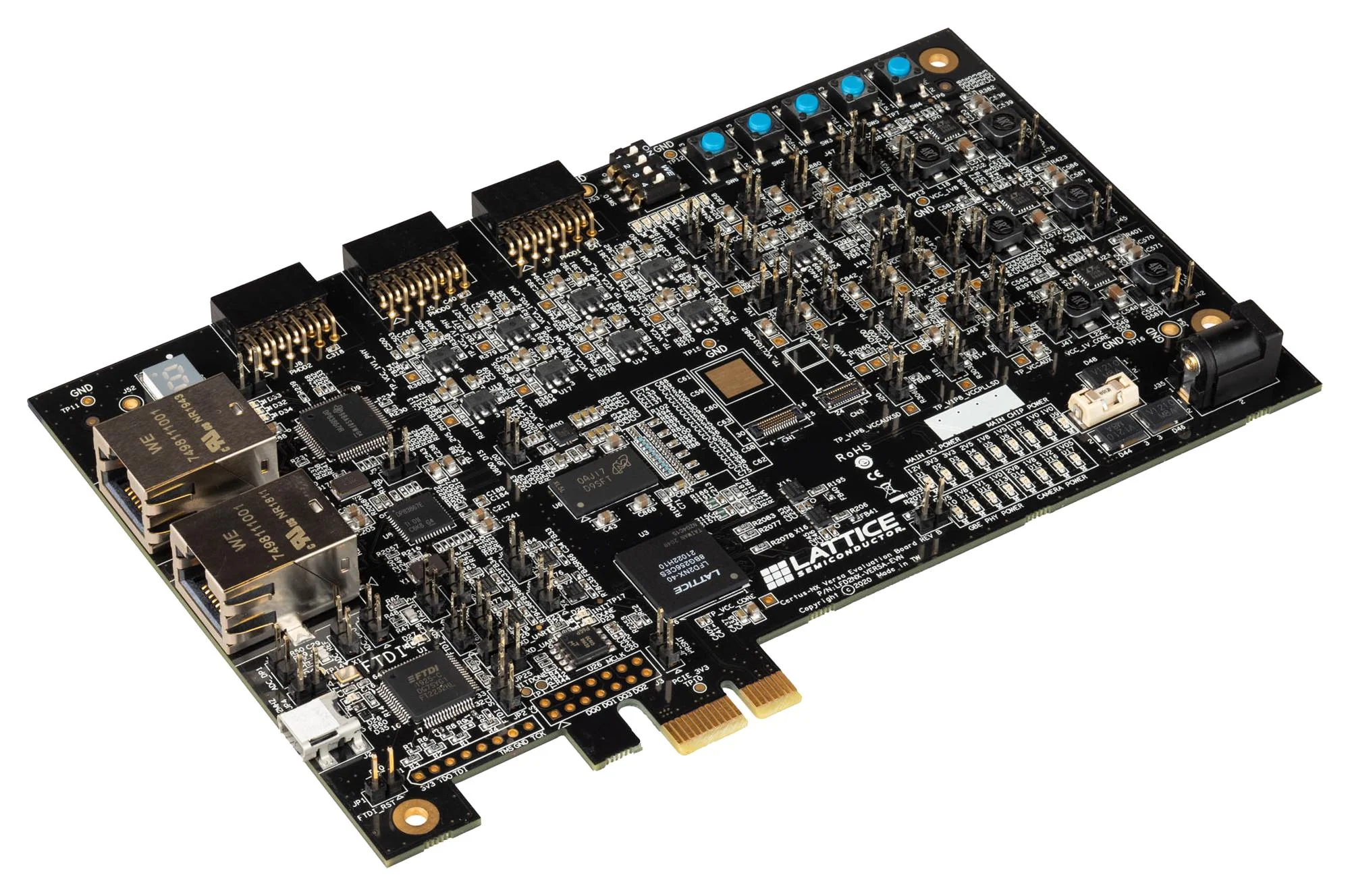

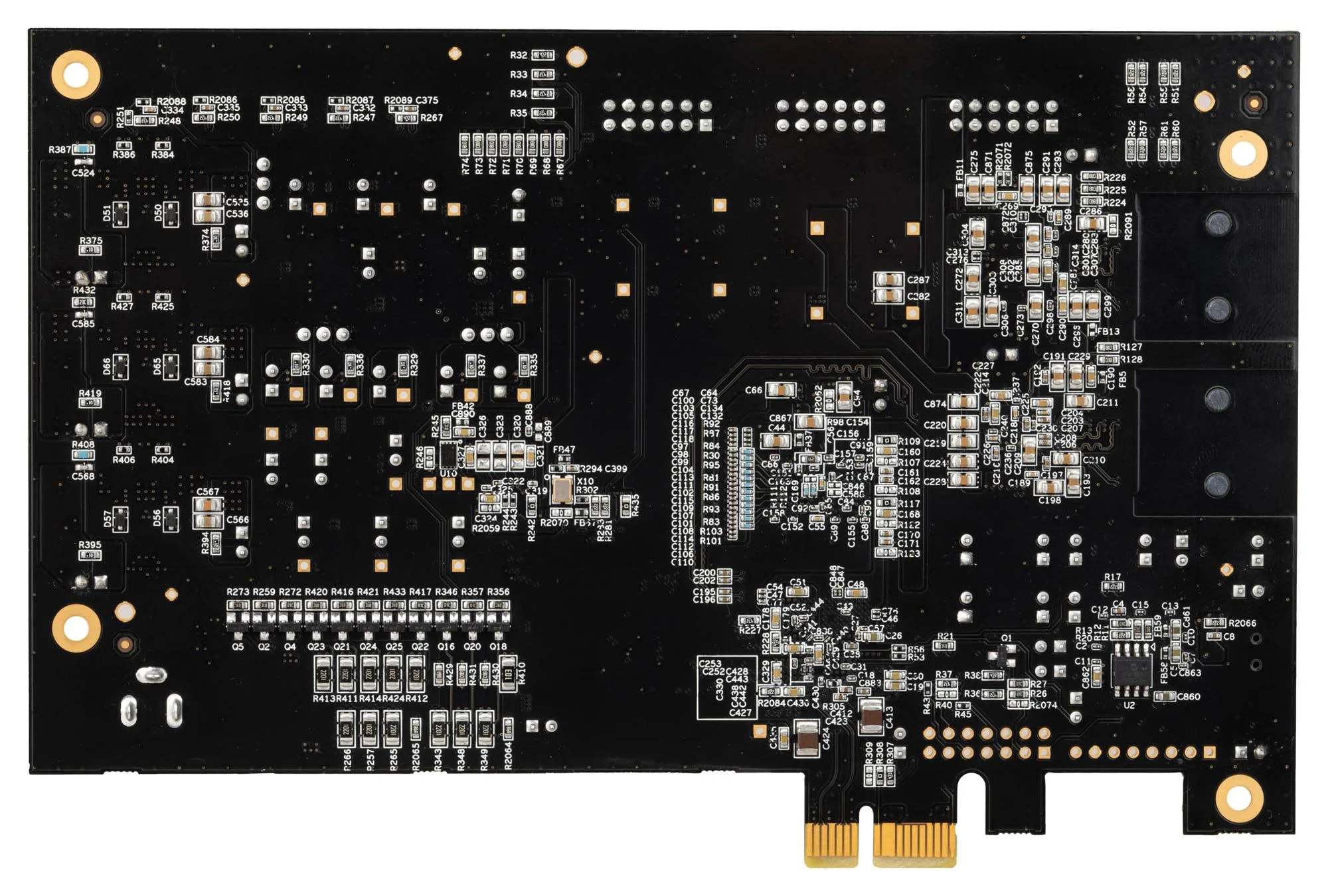

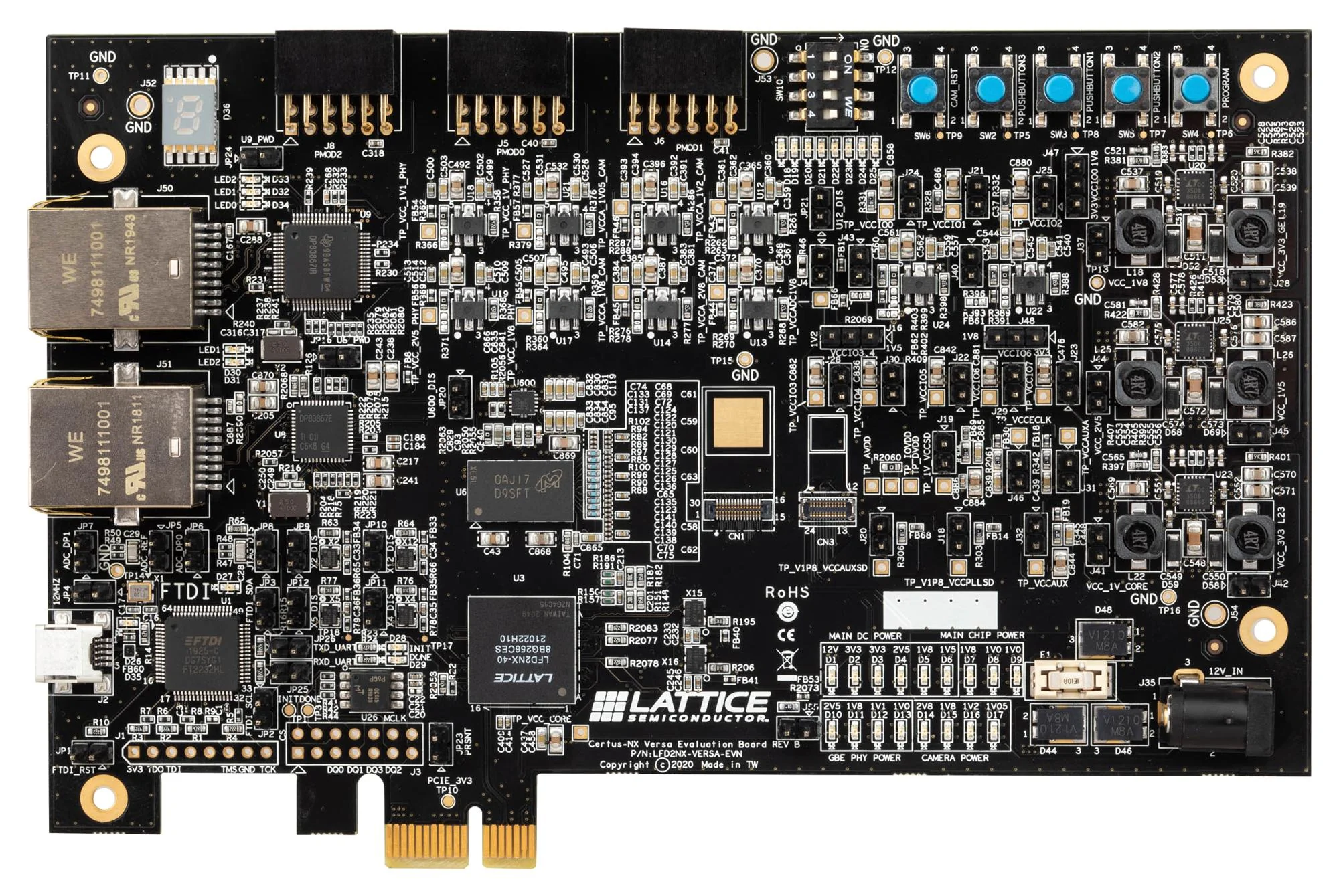

LATTICE SEMICONDUCTOR LFD2NX-VERSA-EVN Evaluation Board, LFD2NX-40-8BG256C, Certus-NX, FPGA

Certus�-NX Versa evaluation board allows designers to investigate and experiment with the features of the Certus-NX Field Programmable Gate Array (FPGA). The features of the Certus-NX Versa evaluation board can assist engineers with the rapid prototyping and testing of their specific designs. The Certus-NX Versa Evaluation board is part of the Certus-NX Versa Evaluation Board Kit. The guide is intended to be referenced in conjunction with demo user guides to demonstrate the Certus-NX FPGA.

• DDR3/DDR3L memory with 1066Mbps data rate and 16x bits data width
• Soft D-PHY camera connector and parallel camera connector
• SGMII and RGMII 1Gbps Ethernet interface
• 1x Gen2 PCIe interface with gold finger connector
• USB-B connection for device programming and I2C utility
• On-board boot flash - 128Mb SPI flash, with quad read feature
• 4 input DIP switches, 5push buttons, 8 status LEDs and one 7-segment LED for customer purposes
• Three 12-pin PMOD interface connectors
• Lattice Radiant® software programming support
• Multiple reference clock sources

Contents

Certus-NX versa evaluation board pre-loaded with demo design, USB-A to USB-B (mini) cable for programming FPGA via a PC, 12V AC/DC power adapter and international plug adapters, quick start guide with Lattice radiant software download information.
