-70%LATTICE SEMICONDUCTOR LCMXO3LF-6900C-S-EVN Starter Kit, MACHXO3LF, FPGA—
$265.69
$79.71The Story

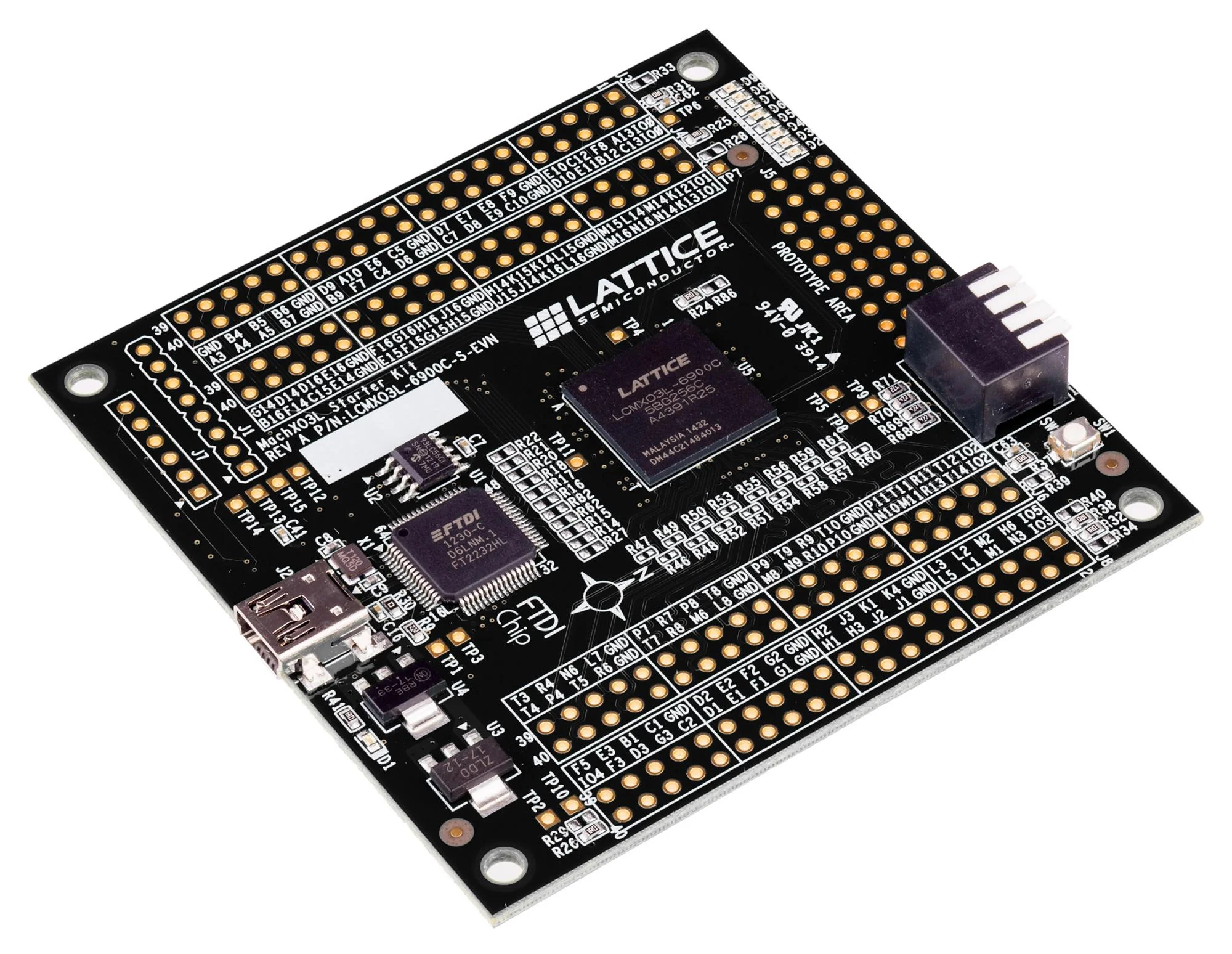

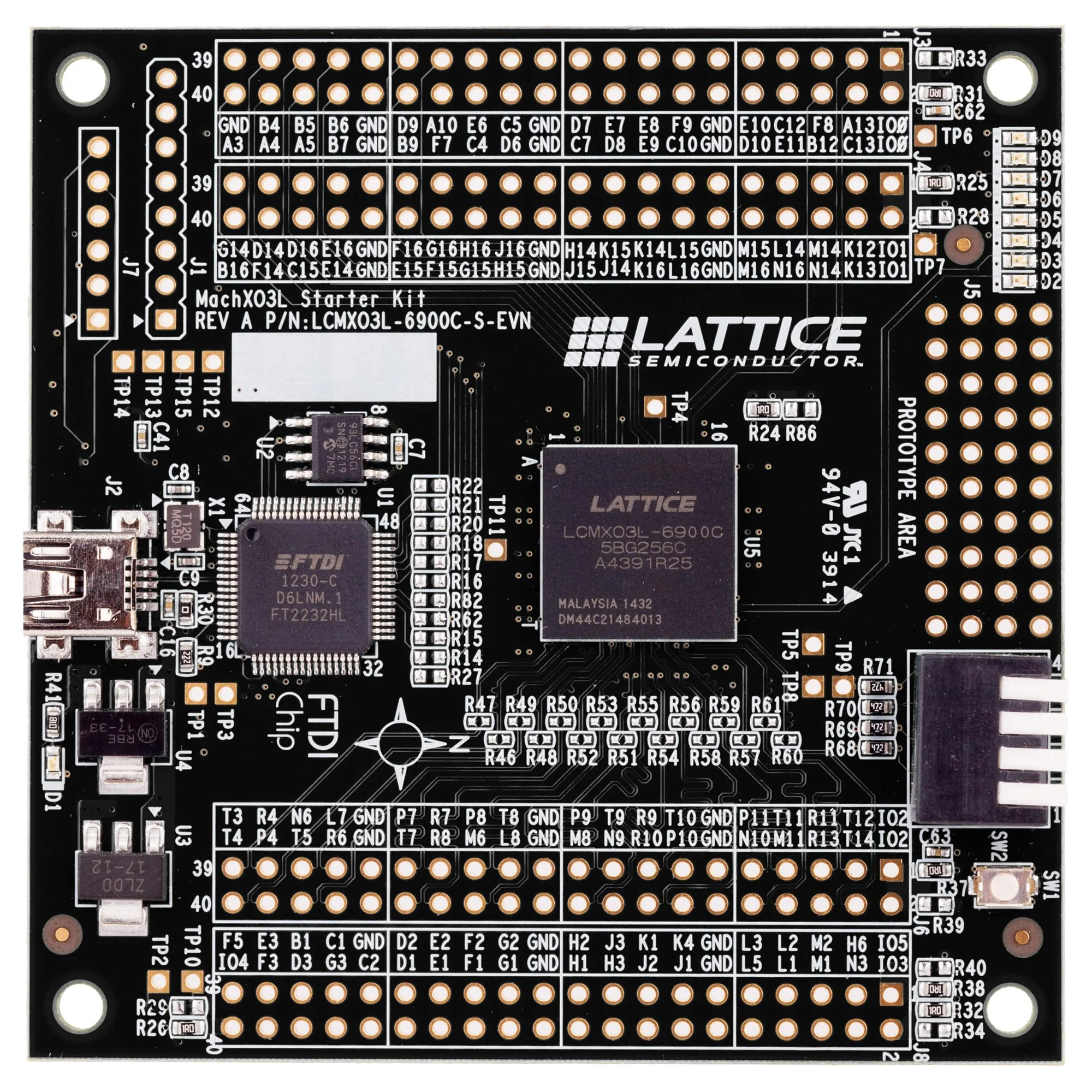

MachXO3LF starter kit is a basic breakout board to allow simple evaluation and development of MachXO3LF based designs. It has the LCMXO3LF-6900C-5BG256C device on it. A SPI Flash is available on this starter kit board for evaluating external boot or dual-boot functional capabilities. This Starter Kit board is a 3 x 3 inch form factor, and features a USB mini-B connector for power and programming, an LED array, and prototype area. It comes with a pre-loaded demonstration, a counter design that highlights use of the embedded MachXO3LF oscillator and programmable I/Os configured for LED drive. A USB cable is also included with the kit, and demos area available for download.
- MachXO3 FPGA - LCMXO3LF-6900C-5BG256C
- USB Mini-B connector (program/power)
- Pre-programmed example design (available on latticesemi.com)
- Eight LEDs
- 4-position DIP switch
- 40-hole prototyping area
- Four 2 x 20 expansion header landing for general I/O, JTAG and external power
- 1 x 8 expansion header landing for JTAG, 1 x 6 expansion header landing for SPI/ I2C
- SPI Flash for external boot or dual boot
- 3.3V and 1.2V supply rails
Contents
MachXO3LF breakout board, Pre-loaded demo, Mini USB cable, Quickstart guide.
Product details
| Silicon Manufacturer: Lattice Semiconductor |
| No. of Bits: - |
| Silicon Family Name: MachXO3 |
| Core Architecture: CPLD, FPGA |
| Core Sub-Architecture: - |
| Silicon Core Number: LCMXO3LF-6900C-5BG256C |
| Kit Contents: MachXO3LF Breakout Board, Pre-loaded Demo, Mini USB Cable, QuickStart Guide |
| Product Range: - |
Other details
| Brand | LATTICE SEMICONDUCTOR |
| Part Number | LCMXO3LF-6900C-S-EVN |
| Quantity | Each |
| Technical Data Sheet EN |  |
