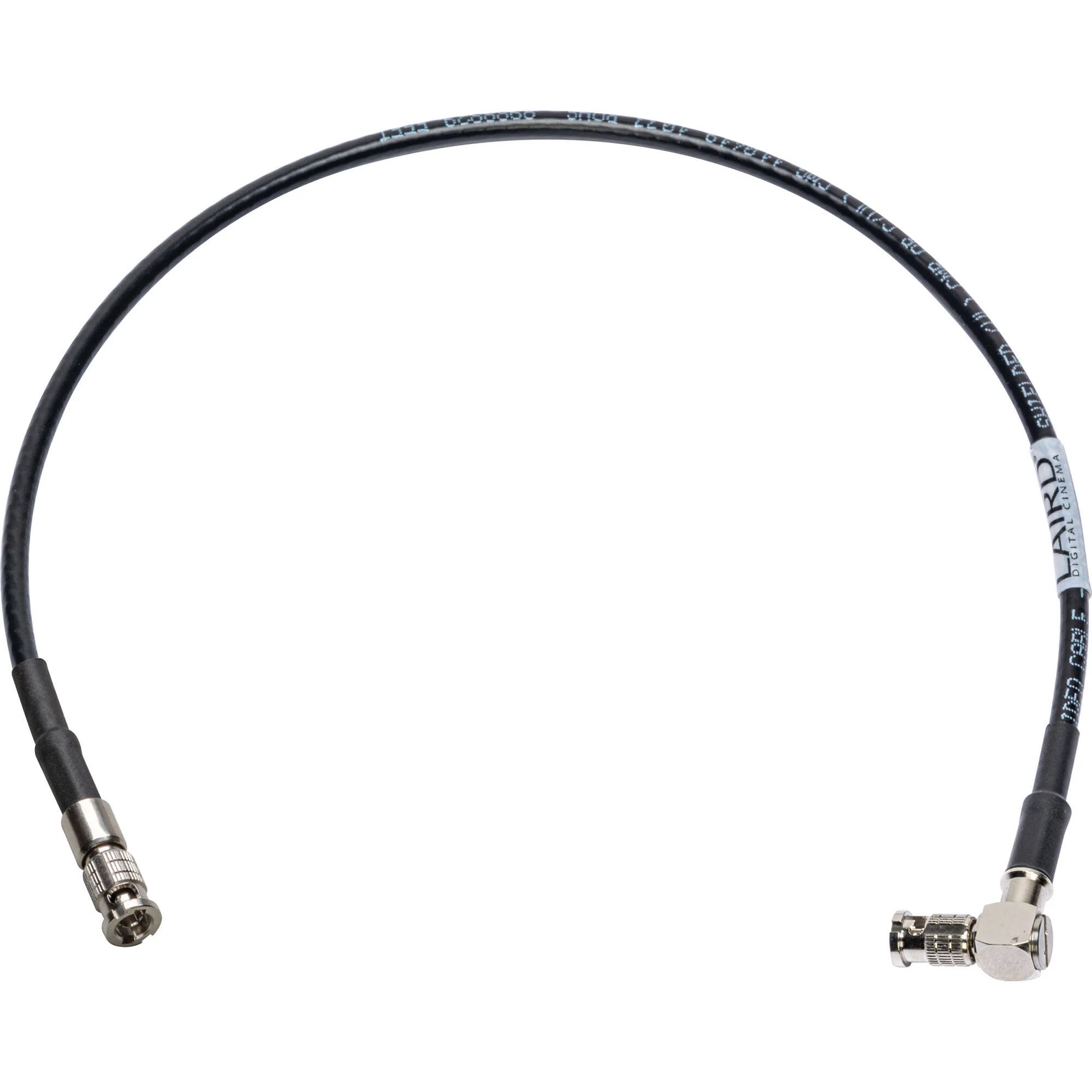

Laird Digital Cinema 4855R High-Density Right-Angle HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (18")
HomeStore

Laird Digital Cinema 4855R High-Density Right-Angle HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (18")

Laird Digital Cinema 4855R High-Density Right-Angle HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (18")

$23.90

Original: $79.67

-70%
Laird Digital Cinema 4855R High-Density Right-Angle HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (18")—

$79.67

$23.90

The Story

Laird Digital Cinema HDBNC4855-RA Overview

  • 1Description
  • 212G-SDI 4K UHD
  • 3HD-BNC Male Connectors
  • 4Silver-Plated Copper
  • 5Low Return Loss
  • 6SMPTE Compatible

The 18" High-Density HD-BNC Male to BNC Male 12G-SDI Cable from Laird Digital Cinema is designed for transmitting uncompressed 12G-SDI UHD 4K video signals in RF performance-critical applications. It features return loss and attenuation improvements, which make it highly suitable for high-density patch bays, routers, and signal distribution systems. This cable features a straight low-profile coax HD-BNC (micro BNC) male connector on one end and a right-angle HD-BNC connector on the other.

12G-SDI 4K UHD
Transmits uncompressed 12G-SDI 4K UHD video signals up to 149'
HD-BNC Male Connectors
HD-BNC male connectors on each end, one straight and one right angled
Silver-Plated Copper
A braided design and silver-plated copper conductor plus a polyethylene formula contribute to improved return loss and attenuation
Low Return Loss
15 dB return loss from 4.5 to 12 GHz
SMPTE Compatible
Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards

In the Box

  • Laird Digital Cinema 4855R High-Density Right-Angle HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (18")
  • Limited 1-Month Manufacturer Warranty
    Table of Contents
    • Description
    • 12G-SDI 4K UHD
    • HD-BNC Male Connectors
    • Silver-Plated Copper
    • Low Return Loss
    • SMPTE Compatible

    Laird Digital Cinema HDBNC4855-RA Specs

    General
    Connector 1
    1 x Micro-BNC
    Connector 2
    1 x Micro-BNC
    Cable Length
    18" / 45.7 cm
    Signal Type
    12G-SDI
    SMPTE Standards
    SMPTE 2081-1/2082-1
    Coaxial Type
    RG-59 (4855R)
    Conductor Material
    Silver-Plated Copper
    Insulation Type
    Polyvinyl Chloride (PVC)
    Jacket Type
    Polyvinyl Chloride (PVC)
    Shielding
    Tinned Copper Braid
    Wire Gauge
    23 AWG
    Weight
    0.08 lb / 35 g
    Electrical
    Capacitance
    16.3 pF/ft
