Laird Digital Cinema 4855R High-Density HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (3')
HomeStore

Laird Digital Cinema 4855R High-Density HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (3')

Laird Digital Cinema 4855R High-Density HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (3')

$23.11

Original: $77.02

-70%
Laird Digital Cinema 4855R High-Density HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (3')—

$77.02

$23.11

The Story

Laird Digital Cinema HDBNC4855-MM Overview

  • 1Description
  • 212G-SDI 4K UHD
  • 3HD-BNC Male Connectors
  • 4Silver-Plated Copper
  • 5Low Return Loss
  • 6SMPTE Compatible

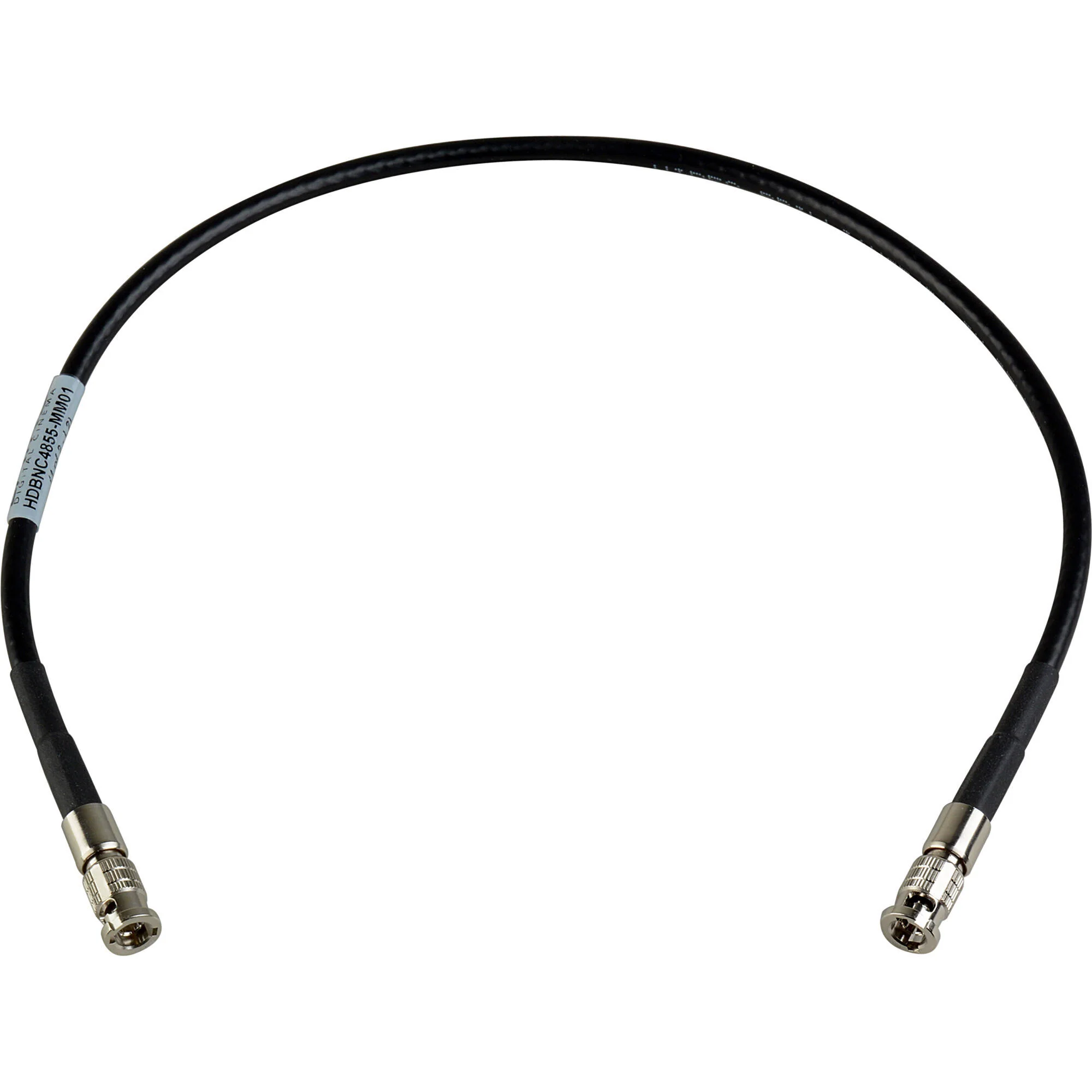

The 3' High-Density HD-BNC Male to BNC Male 12G-SDI Cable from Laird Digital Cinema is designed for transmitting uncompressed 12G-SDI UHD 4K video signals in RF performance-critical applications. It features return loss and attenuation improvements, which make it highly suitable for high-density patch bays, routers, and signal distribution systems. This cable features a straight low-profile coax HD-BNC (micro BNC) male connector on each end.

12G-SDI 4K UHD
Transmits uncompressed 12G-SDI 4K UHD video signals up to 149'
HD-BNC Male Connectors
HD-BNC male connectors on each end, both straight
Silver-Plated Copper
A braided design and silver-plated copper conductor plus a polyethylene formula contribute to improved return loss and attenuation
Low Return Loss
15 dB return loss from 4.5 to 12 GHz
SMPTE Compatible
Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards
    Table of Contents
    • Description
    • 12G-SDI 4K UHD
    • HD-BNC Male Connectors
    • Silver-Plated Copper
    • Low Return Loss
    • SMPTE Compatible

    Laird Digital Cinema HDBNC4855-MM Specs

    General
    Connector 1 1 x Micro-BNC
    Connector 2 1 x Micro-BNC
    Cable Length 3' / 0.9 m
    Signal Type 12G-SDI
    SMPTE Standards SMPTE 2081-1/2082-1
    Coaxial Type RG-59 (4855R)
    Conductor Material Silver-Plated Copper
    Insulation Type Polyvinyl Chloride (PVC)
    Jacket Type Polyvinyl Chloride (PVC)
    Shielding Tinned Copper Braid
    Wire Gauge 23 AWG
    Weight 1.6 oz / 45 g
    Electrical
    Capacitance 16.3 pF/ft

    Laird Digital Cinema HDBNC4855-MM Reviews
