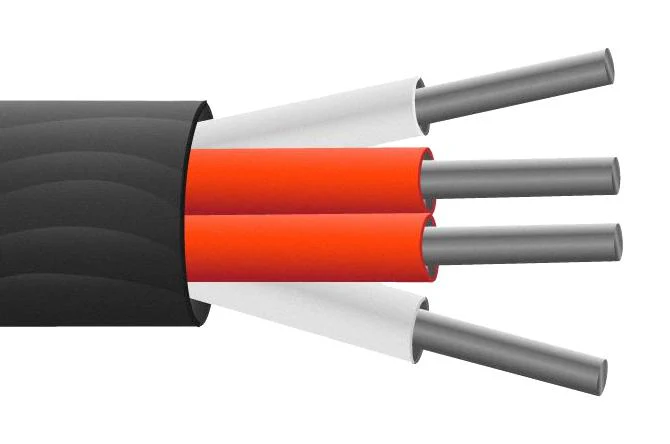

Labfacility WC-014-D WC-014-D Multicore Cable RTD Screened 4 Core 0.219 mm² 82 ft 25 m
HomeStore

Labfacility WC-014-D WC-014-D Multicore Cable RTD Screened 4 Core 0.219 mm² 82 ft 25 m

Labfacility WC-014-D WC-014-D Multicore Cable RTD Screened 4 Core 0.219 mm² 82 ft 25 m

$642.17
Labfacility WC-014-D WC-014-D Multicore Cable RTD Screened 4 Core 0.219 mm² 82 ft 25 m—
$642.17

The Story

  • PTFE insulated cable for extending platinum resistance thermometers
  • High temperature to 260°C, wrapped PTFE tape construction
  • Insulation rating -75°C to 260°C, can be used to extend 2, 3 or 4 wire RTD configurations
  • Commonly used for Pt100R thermometers
  • Also suitable with other types such as Pt130, Pt500 and Pt1000R
  • 4 core PTFE insulated 7/0.2mm silver plated copper conductors, twisted cores
  • Mylar tape, silver plated copper braided screen with PTFE insulated outer jacket
  • Cores colour coded 2 x red / 2 x white to IEC-751 + black outer jacket
  • Good mechanical strength and flexibility, resistant to oils, acids, other adverse fluids, steam, gas
  • 25m reel length

Product details

Cable Shielding Screened
No. of Cores 4Core
Wire Gauge -
Conductor Area CSA 0.219mm²
Reel Length (Imperial) 82ft
Reel Length (Metric) 25m
Jacket Colour Black
No. of Max Strands x Strand Size 7 x 0.2mm
Conductor Material Silver Plated Copper
Jacket Material PTFE
External Diameter 3.5mm
Voltage Rating -
Product Range -

Other details

Brand LABFACILITY
Part Number WC-014-D
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
