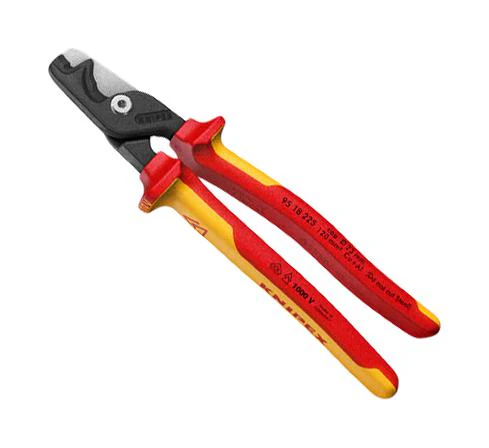

95 18 225 is a KNIPEX StepCut® XL, cable shears with step cut. Dual cutting areas stepped cutting edge holds small and larger cables close to the joint during the cut; the front cutting edge cuts very large cables step by step. High-leverage joint, long handles and optimised cutting edges: noticeably easier cutting than with compact cable shears.
- Large cutting capacity cuts solid copper or aluminium cables up to 35mm²
- Easy one- or two-handed operation with minimum handle opening for large cable diameters
- Adjustable, high-leverage bolted joint provides precise and smooth cutting
- Slim head for easier accessibility, pinch guard prevents operator's fingers being pinched
- Not suitable for steel-reinforced cables, e.g. ACSR
- Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
- Burnished shears and head, 1000Volt Insulated, 1" tip width, insulating multi-component handle
- Stranded cables fine stranded cables solid cable type
- Dimension is 234 x 65 x 29mm, 1 1/4" jaw length and width, 1/2" jaw thickness, 1/4" tip thickness
Warnings
Do no use on live circuits. Always switch off power. Always wear approved eye protection. Technical changes and errors reserved.
Product details
Other details
| Brand | KNIPEX |
| Part Number | 95 18 225 |
| Quantity | Each |
| Technical Data Sheet EN |  |
