$158.62
Original: $528.73

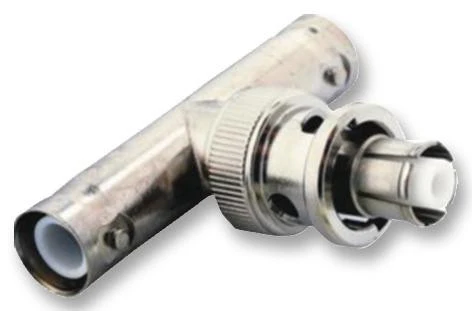

-70%KINGS 1709-3 RF / Coaxial Adaptor, Inter Series Coaxial, Tee Adapter, SHV, Jack, SHV, Plug, Plug—
$528.73
$158.62The Story
The 1709-3 is a Female to 2 Male Tee Adapter, SHV series, with gold-plated contact, Tee orientation. The SHV outer contact ground connection is maintained through the centre contact mating cycle. The centre contacts are recessed to prevent shock hazards when the connectors are unmated. High voltage connectors are designed for use where the normal operating voltage of standard coaxial connectors is inadequate.
- 5KV Voltage rating
- 10?MR Insulation resistance
- Waterproof
- Non-constant impedance
- Quick to connect and disconnect with bayonet coupling
- Recessed centre contacts prevent shock hazards while unmated
- Outer contact ground connection is maintained through centre contact mating cycle
Applications
Aerospace, Defence, Military, Medical, RF Communications, Industrial
Product details
| Convert From Gender | Jack |
| Convert To Gender | Plug, Plug |
| Convert From Coax Type | SHV |
| Convert To Coax Type | SHV |
| Connector Type | Inter Series Coaxial |
| Product Range | - |
| Adapter Body Style | Tee Adapter |
Other details
| Brand | KINGS |
| Part Number | 1709-3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
