-70%Kemet T520V226M020ATE040 Tantalum Polymer Capacitor 22 µF 20 V T52X KO-CAP® Series ± 20% 0.04 ohm—
$6.28
$1.88The Story
The T520 series Organic Capacitor (KO-CAP) is a solid electrolytic capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. Suitable for general purpose DC applications up to 12.8V. This series is ideal for DC-to-DC converters, bulk decoupling and hold-up.
- Volumetrically efficient
- High frequency capacitance retention
- 100% Accelerated steady state aging
- 100% Surge current tested
- EIA standard case sizes
Product details
| Capacitance | 22µF |
| Voltage Rating | 20V |
| Product Range | T52X KO-CAP® Series |
| Capacitance Tolerance | ± 20% |
| Manufacturer Size Code | V |
| ESR | 0.04ohm |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 105°C |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
Other details
| Brand | KEMET |
| Part Number | T520V226M020ATE040 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Application Note EN | |
| Manufacturer Catalogue EN | |
| CAD Multiple Formats EN | |

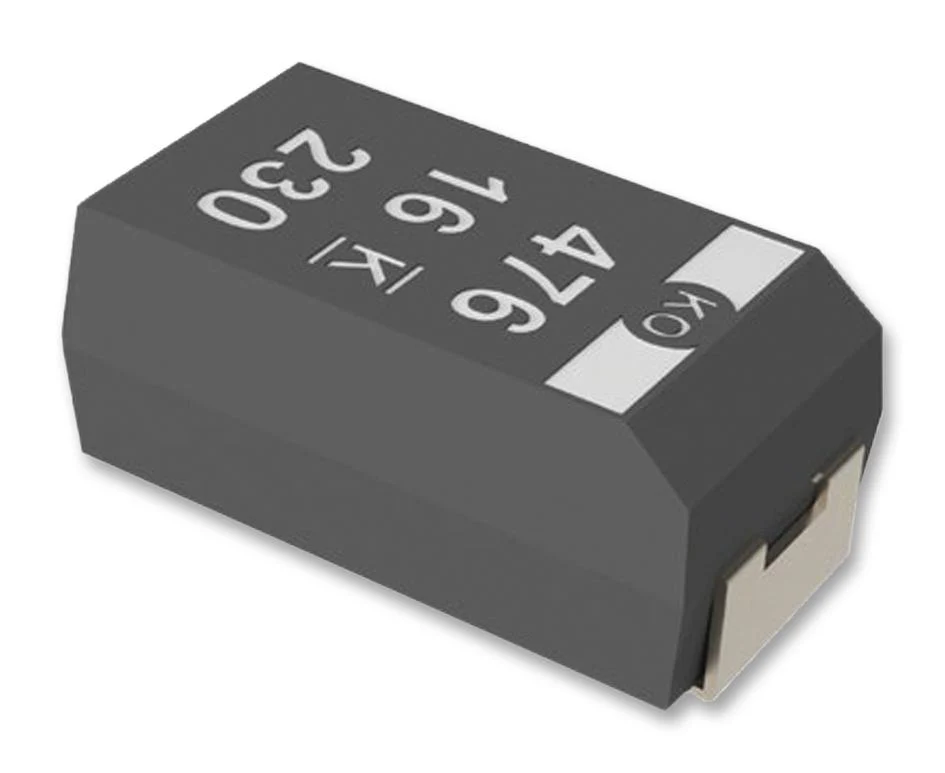

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
