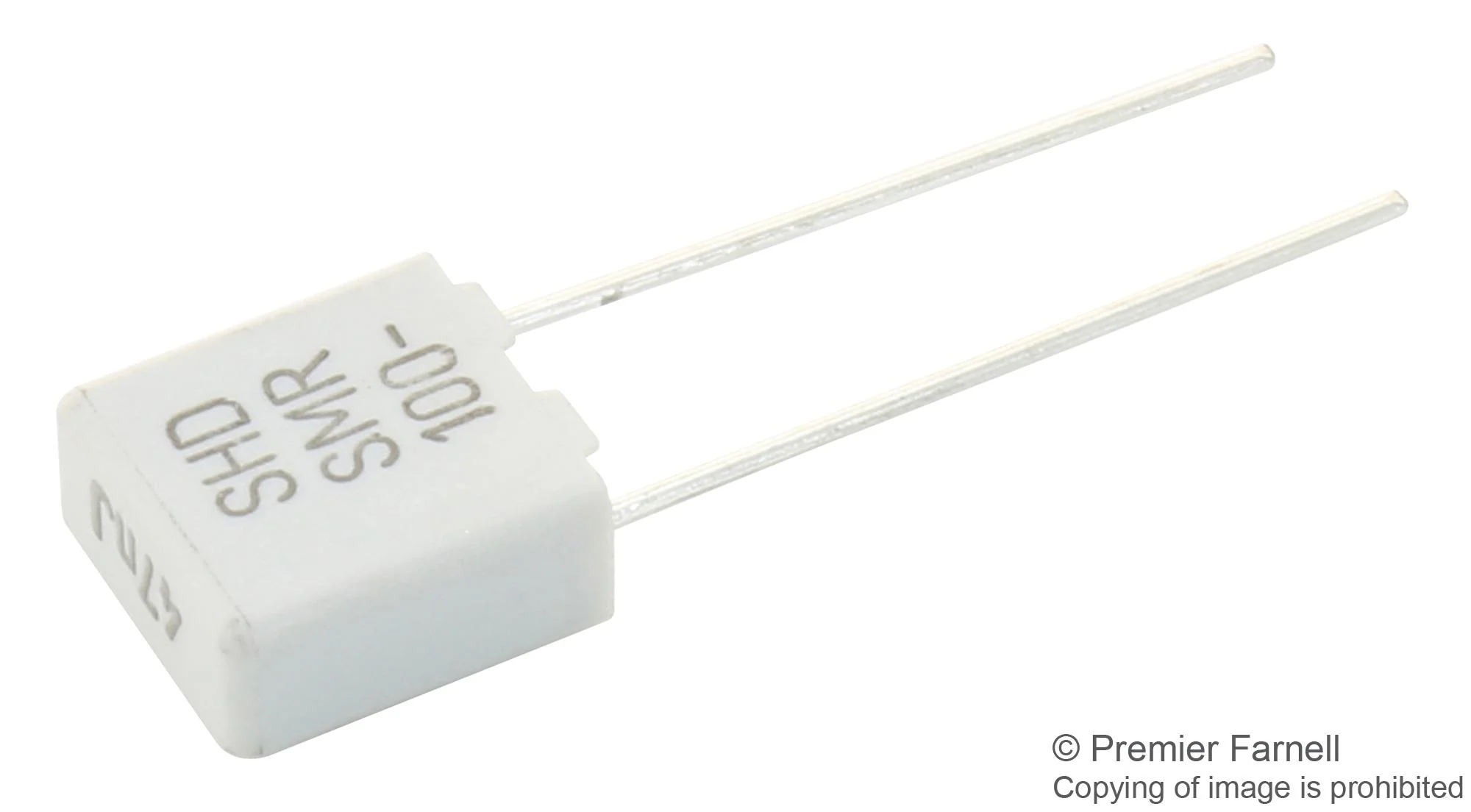

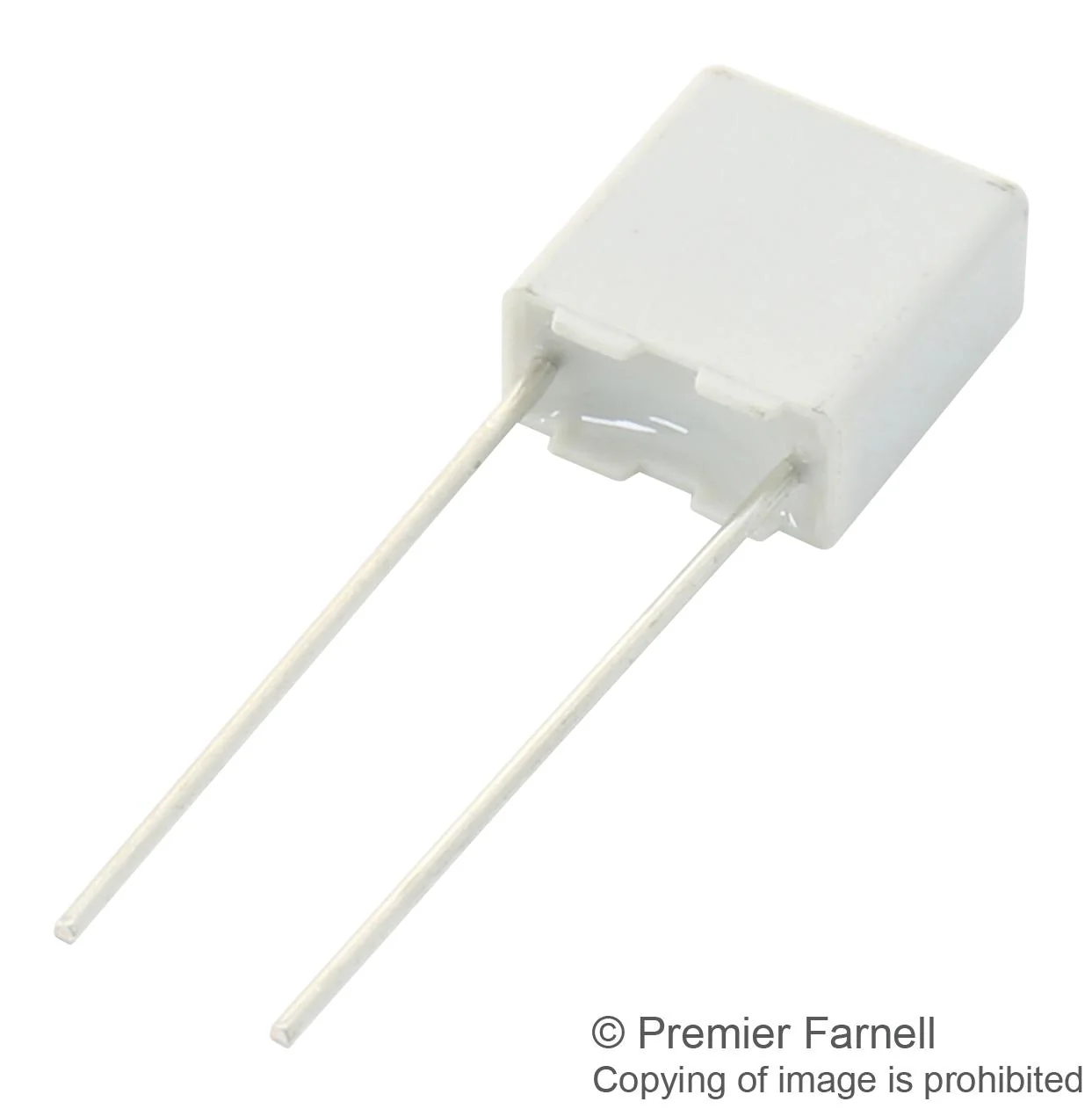

Kemet SMR5104J50J01L16.5CBULK SMR5104J50J01L16.5CBULK General Purpose Film Capacitor Metallized PPS Radial Box - 2 Pin 0.1 µF ± 5% 30 V 50

The SMR Series is a metallized polyphenylene sulfide film capacitor with vacuum-evaporated aluminum electrodes. Radial leads of tinned wire are electrically welded to the contact metal layer on the ends of the capacitor winding. The capacitor is encapsulated in self- extinguishing material meeting the requirements of UL 94 V-0. Typical applications include automotive and other applications with high ambient temperatures, as well as those requiring high stability and low losses. The capacitor offers excellent sound quality in audio applications.

• Voltage range: 50 - 400 VDC; 30 - 200 VAC
• Capacitance range: 0.001 - 22 µF / Capacitance tolerance: ±10%, ±20%, ±2.5% and ±5% on request
• Lead spacing: 5 - 27.5 mm
• Climatic category: 55/150/56, IEC 60068-1 / Category temperature range -55 to +150°C / Rated temperature +125°C
• Tape and reel packaging in accordance with IEC 60286-2
• RoHS Compliant and lead-free terminations

Other details

Brand	KEMET
Part Number	SMR5104J50J01L16.5CBULK
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
Manufacturer Catalogue EN
Product Change Notice EN
