-70%Kemet FC0V224ZFTBR24 Supercapacitor Edlc 0.22 F 3.5 V FC Series +80% -20%—
$5.82
$1.75The Story

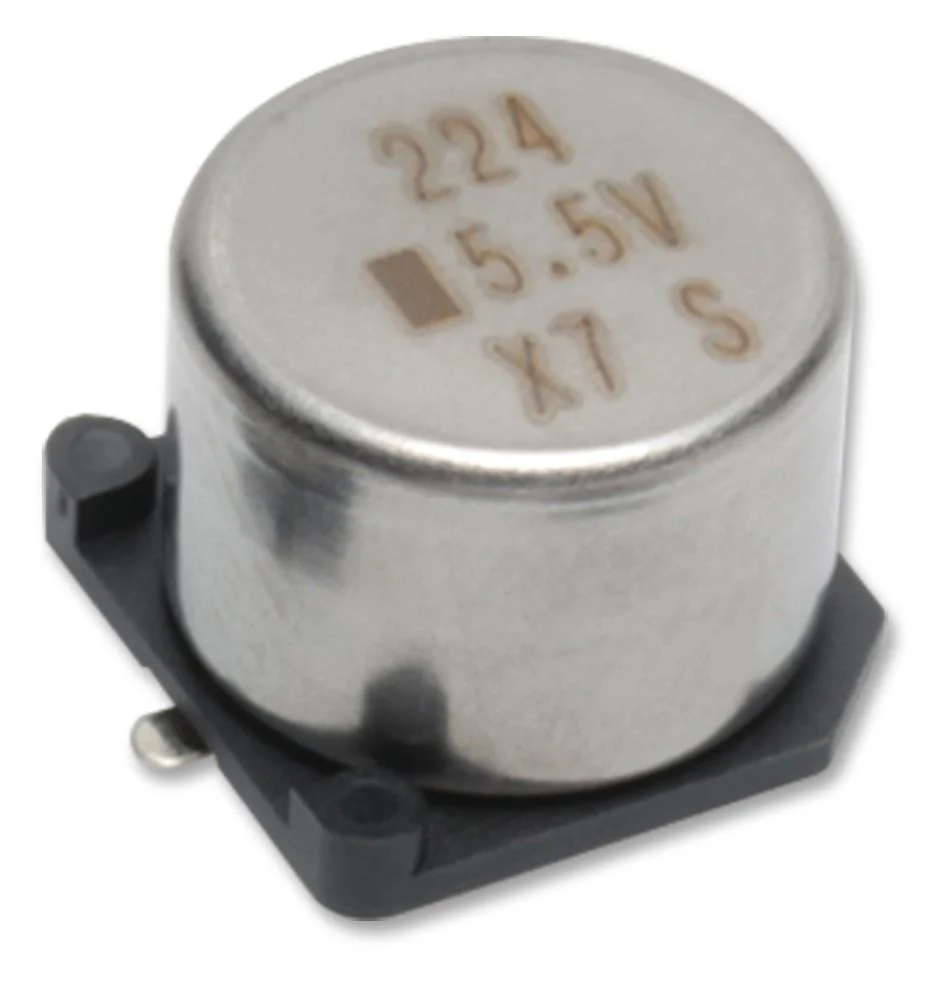

The FC0V224ZFTBR24 is a cylindrical SMD Supercapacitor designed specifically for reflow soldering, allowing them to be attached to a printed circuit board (PCB) directly. This supercapacitor have characteristics ranging from traditional capacitors and batteries. As a result, supercapacitors can be used like a secondary battery when applied in a DC circuit. This device is best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
- Surface mount without holder
- Maintenance free
- Highly reliable against liquid leakage
- Lead-free environmental
- Positive electrode forward orientation
- Maximum Current @ 30 Minutes 0.2mA
Product details
| Capacitance | 0.22F |
| Voltage Rating | 3.5V |
| Capacitor Terminals | - |
| Product Range | FC Series |
| Capacitance Tolerance | +80%, -20% |
| Lead Spacing | - |
| Lifetime @ Temperature | 1000 hours @ 70°C |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 70°C |
| ESR | 25ohm |
| Capacitor Case Style | Radial Can - SMD |
| Diameter | 10.5mm |
| Height | 5.5mm |
| RoHS Phthalates Compliant | Yes |
Other details
| Brand | KEMET |
| Part Number | FC0V224ZFTBR24 |
| Quantity | Each (Supplied on Cut Tape) |
| Manufacturer Catalogue EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
