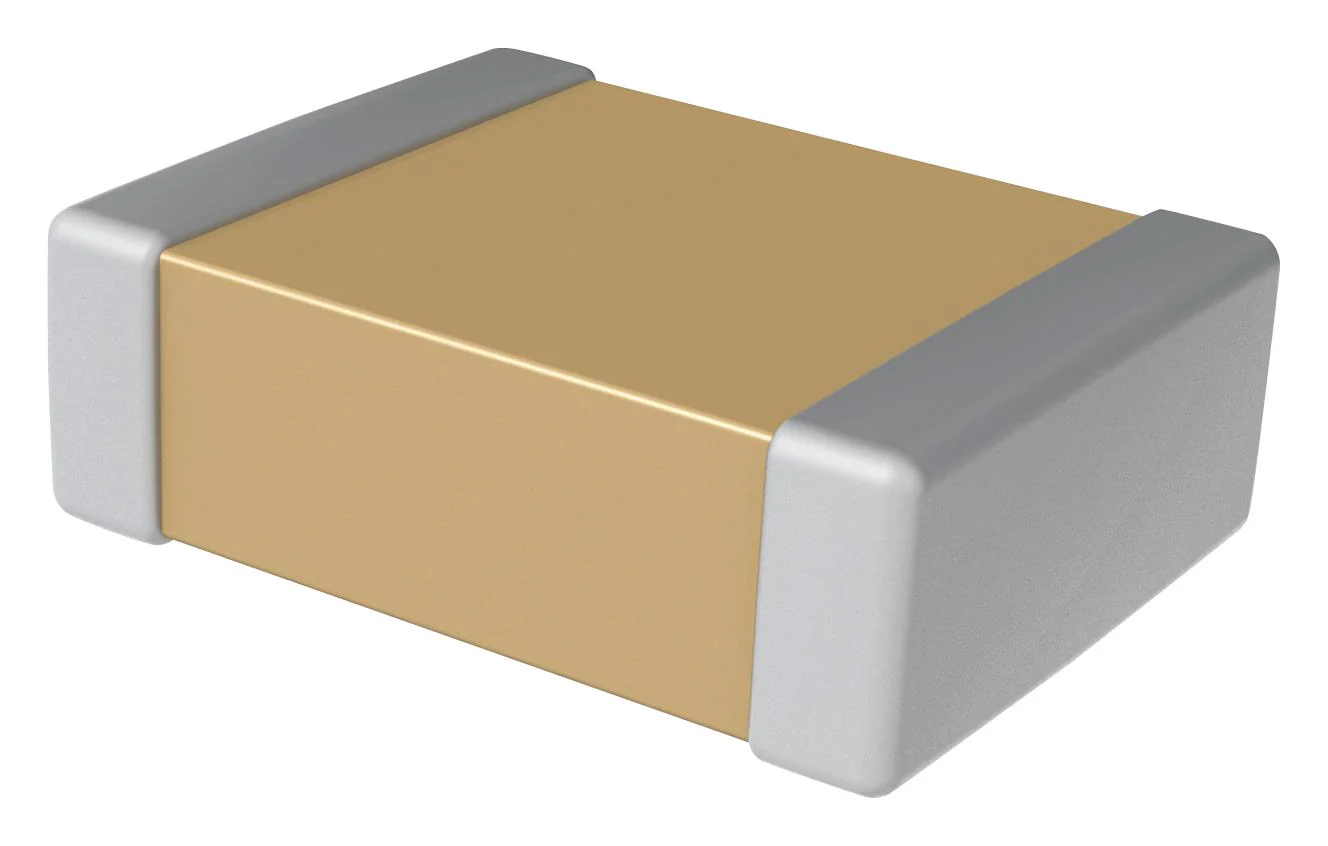

![Kemet C2220C331JFGACTU C2220C331JFGACTU SMD Multilayer Ceramic Capacitor 330 pF 1.5 kV 2220 [5650 Metric] ± 5% C0G / NP0](https://img.tanotishq.shop/images/product/kemet-c2220c331jfgactu-c2220c331jfgactu-smd-multilayer-ceramic-capacitor-330-pf-1-5-kv-2220-5650-metric-plusmn-5-c0g-np0-1.jpg)
$2.07
Original: $6.90
-70%Kemet C2220C331JFGACTU C2220C331JFGACTU SMD Multilayer Ceramic Capacitor 330 pF 1.5 kV 2220 [5650 Metric] ± 5% C0G / NP0—
$6.90
$2.07The Story
KEMET's High Voltage surface mount MLCCs in C0G dielectric feature a 125°C maximum operating temperature and are considered "stable". The C0G dielectric is a Class I material. Components of this classification are temperature compensating and are suited for resonant circuit applications or those where Q and stability of capacitance characteristics are required. C0G exhibits no change in capacitance with respect to time and voltage and boasts a negligible change in capacitance with reference to ambient temperature. Capacitance change is limited to ±30ppm/ºC from -55°C to +125°C. These devices exhibit low ESR at high frequencies and find conventional use as snubbers or filters in applications such as switching power supplies and lighting ballasts. Typical applications include timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression and energy storage.
- Operating temperature range from -55°C to +125°C
- Capacitance range includes E24 decade values from 1pF to 0.15µF
- DC voltage rating from 500V to 3000V
- EIA 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 2824, 3040, 3640 and 4540 case sizes available
- Available capacitance tolerances of ±0.10pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10% and ±20%
- High ripple current capability
- Extremely low ESR and ESL
- No piezoelectric noise
- High thermal stability
- No capacitance decay with time
Other details
| Brand | KEMET |
| Part Number | C2220C331JFGACTU |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
