Kemet C1812C102MGRACTU SMD Multilayer Ceramic Capacitor 1000 pF 2 kV 1812 [4532 Metric] ± 20% X7R C Series

KEMET's High Voltage surface mount MLCCs in X7R Dielectric feature a 125°C maximum operating temperature and are considered "temperature stable." The Electronics Industries Alliance (EIA) characterizes X7R dielectric as a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from -55°C to +125°C.

• Operating temperature range from -55°C to +125°C
• Capacitance range includes E24 decade values from 10pF to 560nF
• DC voltage rating from 500V to 3000V
• EIA 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes available
• Exceptional performance at high frequencies, low ESR and ESL
• Industry leading CV values
• Industry leading CV values
• Non polar device, minimize installation concerns

Product details

Capacitance	1000pF
Voltage Rating	2kV
Ceramic Capacitor Case	1812 [4532 Metric]
Capacitance Tolerance	± 20%
Dielectric Characteristic	X7R
Product Range	C Series KEMET
Operating Temperature Min	-55°C
Operating Temperature Max	125°C
Automotive Qualification Standard	-
MSL	MSL 1 - Unlimited

Other details

Brand	KEMET
Part Number	C1812C102MGRACTU
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN

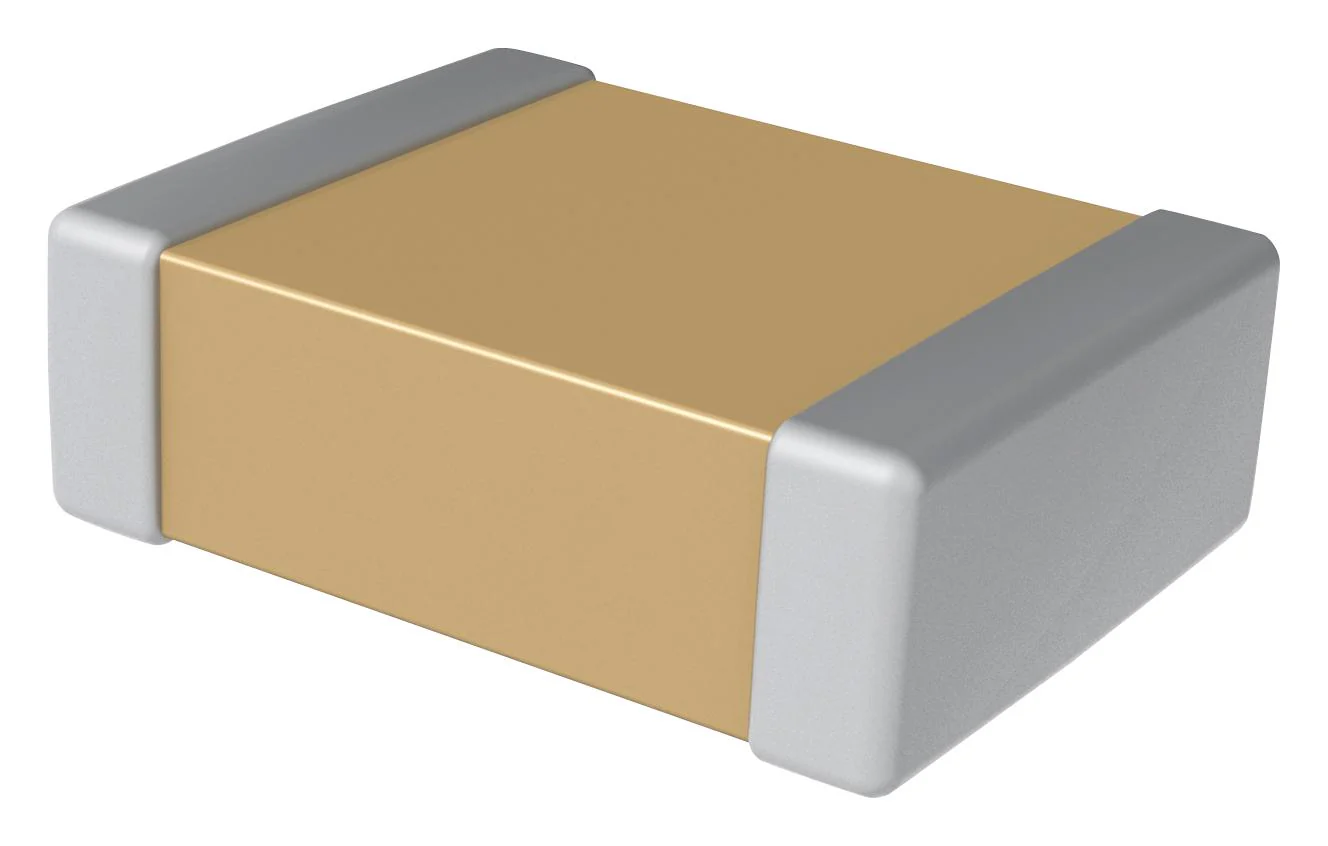

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
