Kahayan Solid 4000 Mix Bus Stereo Processor (500 Series)
HomeStore

Kahayan Solid 4000 Mix Bus Stereo Processor (500 Series)

Kahayan Solid 4000 Mix Bus Stereo Processor (500 Series)

$531.22

Original: $1,770.73

-70%
Kahayan Solid 4000 Mix Bus Stereo Processor (500 Series)—

$1,770.73

$531.22

The Story

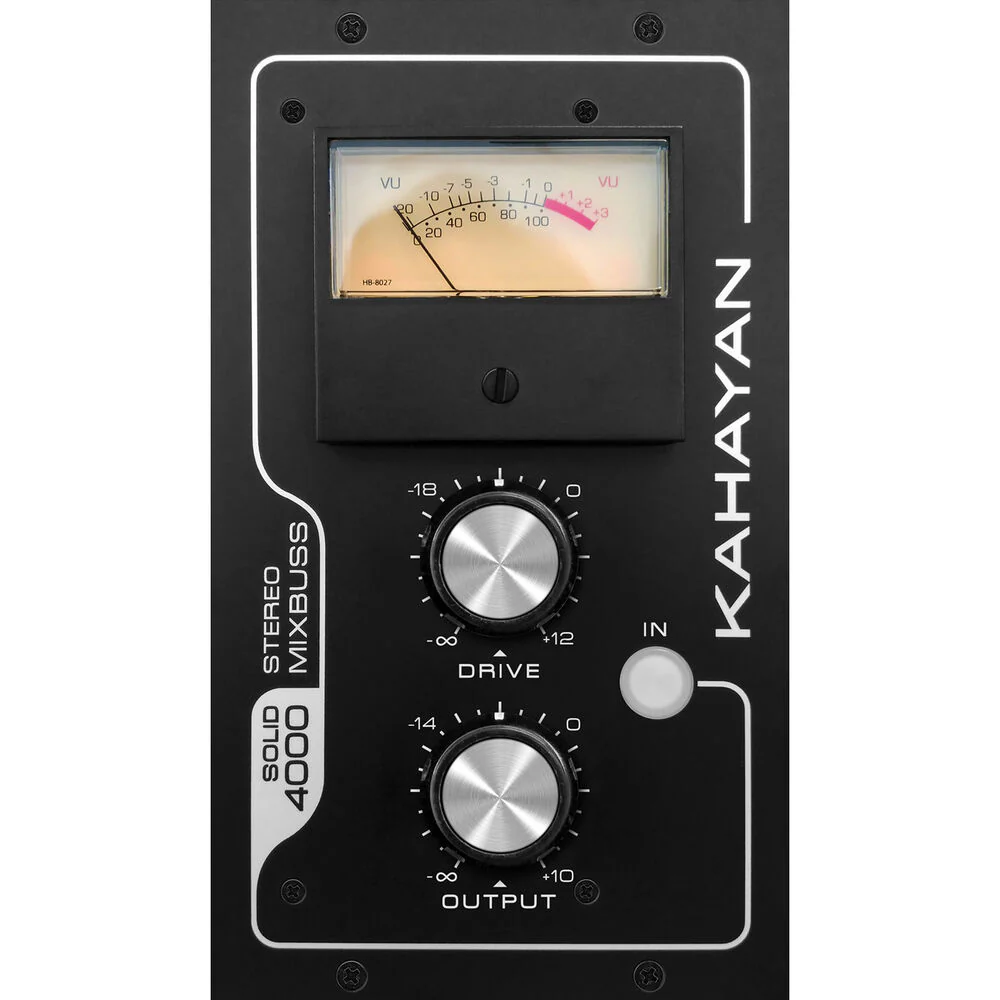

Kahayan Solid 4000 Mix Bus 500 Overview

Audio professionals looking for that classic SSL sound will appreciate the Kahayan Solid 4000 Mix Bus, a 500-series stereo processor designed to be inserted on a stereo bus that imparts the characteristics of an SSL 4000-series mixing console. The processor offers a drive control for harmonic saturation and an output knob to compensate for the Drive signal.

Setup and Basic Aspects
  • Bypass: switch on or bypass the mix-bus processor. When the LED is on, the unit is active
  • Drive: controls harmonic distortion; it sounds like aggressively hitting a console mix bus. High settings increase grit and drive. Lower settings tend to open up the dynamics. Begin with extreme settings, so you can really hear the effect (distortion)
  • Output: fader to compensate the output level as you adjust the drive control
  • VU meter: works like a classic VU-meter that you can find in the consoles, but it is positioned after drive control and gives a view of the saturation level. The 0 VU is calibrated in a 1% THD position; over that level, the saturation increases

In the Box

  • Kahayan Solid 4000 Mix Bus Stereo Processor (500 Series)
  • Limited 2-Year Manufacturer Warranty

    Kahayan Solid 4000 Mix Bus 500 Specs

    Format
    2-Slot 500-Series Module
    Connections
    2 x Balanced Inputs and 2 x Balanced Outputs
    Control
    Drive Fader: Attenuate or Enhance the Stereo Signal at -? dB to +12 dB
    Output Fader: Attenuate or Enhance the Stereo Signal at -? dB to +10 dB
    Headroom: +24 dBu
    Power
    500-Series Rack Enclosure (Sold Separately)

    Left Slot: +16 V / 142 mA (Max), -16 V / 46 mA (Max)
    Right Slot: +16 V / 41 mA (Max), -16 V / 41 mA (Max)
    Dimensions
    Not Specified by Manufacturer
    Weight
    2.2 lb / 1.0 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
