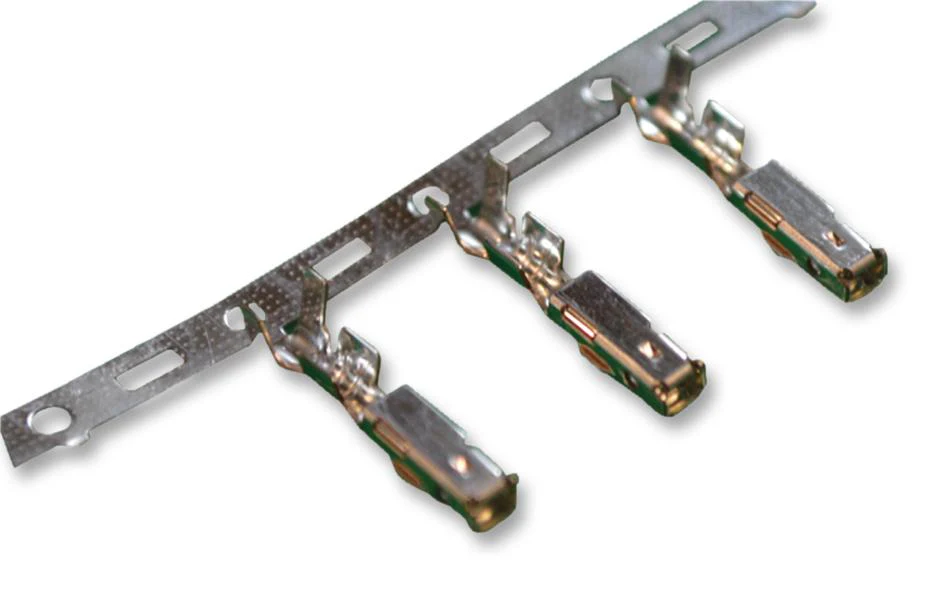

JST (JAPAN Solderless TERMINALS) SWPJR-21T-M0.5 SWPJR-21T-M0.5 Contact WPJ Socket Crimp 18 AWG Tin Plated Contacts Series Receptacle Housing Connectors

The WPJ series wire-to-wire and wire-to-board crimp style Connector recently introduced by JST Corporation was designed for both extreme moisture and non-submersion applications. Three different control key patterns prevent miss-mating while their unique terminal structure has been designed to withstand mating mistakes while maintaining the contact reliability. An inner lock housing feature prevents accidental disconnection to ensure connector mating integrity even under adverse conditions. WPJ series connectors have a 5mm pitch and are available in 2 and 3 circuits. Wire sizes 22 to 18AWG with either standard or thin insulation types are accommodated. Current rating is 7A AC/DC (18AWG) at 300VAC/DC. The contacts are copper alloy, tin-plated. Housings and top-entry, fully shrouded headers are UL94V-0 rated PBT (glass filled) material.

• IPX7 Water-proof grade
• 1500VAC/minute Withstanding voltage

Applications

Automotive, Consumer Electronics, Portable Devices

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	JST (JAPAN SOLDERLESS TERMINALS)
Part Number	SWPJR-21T-M0.5
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
