The Story

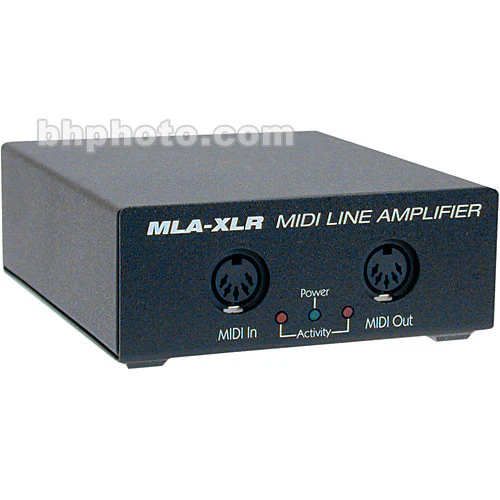

The MLA-XLR from JL Cooper is designed to act as a single channel, bi-directional, long distance amplifier or driver for MIDI signals. While the normal MIDI protocol specifies a maximum cable distance of about 50 feet, this is sometimes not sufficient for some installations.
The MLA-XLR takes a MIDI input and converts it to a balanced, differential signal using the RS-422 specification. At the other end, another MLA-XLR detects the signal using a sensitive receiver that has a high degree of noise immunity. Connecting the two MLA-XLRs are two standard, shielded, twisted pair microphone cables.
The combination of a low impedance, differential driver coupled with a sensitive differential receiver signal lends itself to long distance, error free installations and making it possible to send a MIDI signal through 1000 feet of cable or more. The MLA-XLR is compatible with the JLCooper MLA-1 and MLA10.
Note: Installation requires a MIDI Line Amplifier at either end
- MIDI line amplifier that allows for MIDI cable runs over 1,000 foot using standard XLR microphone cable
- Single MIDI input connectors
- Single MIDI output connectors
- Detachable terminal strip connector
- MIDI activity LEDs
- Multiple units may be networked
- 1/4 rack-mount enclosure
| Connection | XLR |
| MIDI In | Single |
| MIDI Out | Single |
| Activity Indicators | On both ports |
| Multiple Units | Yes |
| Stand-Alone | Not applicable |
| Bypass/Panic | No |
| Synchronizer | Not applicable |
| System Requirements | Installation requires a MIDI Line Amplifier at each side |
| Specialties | Compatible with the JL Cooper MLA-1 and MLA-10 |
| Packaging Info | |
|---|---|
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 12.2 x 7.7 x 2.1" |
- External Power Supply
- One (1) Year Warranty
