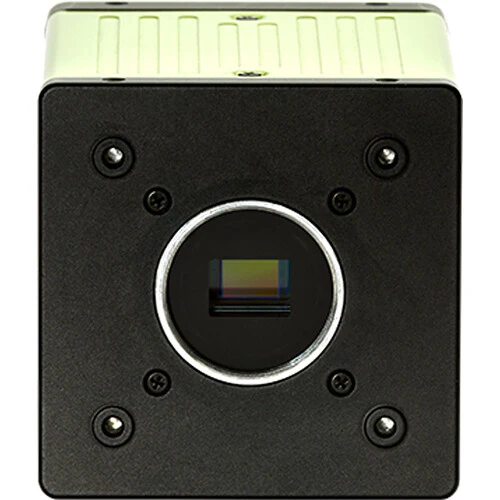

JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount)
HomeStore

JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount)

JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount)

$2,320.17

Original: $7,733.91

-70%
JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount)—

$7,733.91

$2,320.17

The Story

JAI FS-1600T-10GE-NNM Overview

The 1.6MP Fusion Series Multispectral Camera from JAI is a powerful 3-CMOS sensor, prism-based multispectral camera. It is designed to deliver simultaneous images of different spectral bands with a visible color channel from 400-670 nm, a near infrared (NIR) channel from 700-800 nm, and a second NIR channel from 820-1000 nm. Boasting an effective pixel resolution of 1440 x 1080 and a maximum frame rate of 213 fps, the camera has a C-mount lens mount and is ideal for the inspection of surface properties and sub-surface defects in the target subjects when combined across both NIR bands or within a single NIR band. It is equipped with a backwards-compatible 10 GigE Vision interface with dual-stream output for optimal networking flexibility, speed, and overall performance.

Simultaneous 3-Channel Multispectral Imaging
With a monochrome channel and two separate NIR channels, the camera helps designers of multispectral systems to leverage the different way that some biological substances, foods, chemicals, and other materials appear when viewed in different portions of the visible/NIR spectrum.
Replaces Multiple Inspection Stations with a Single Setup
The camera's prism technology ensures perfect two-channel alignment, allowing users to replace multiple inspection stations with a single setup, providing both ease of use and lower equipment and maintenance costs.
Individual Exposure Time Adjustment for Each Channel
Separate exposure control for each channel allows the channels to be adjusted to one another without changes in the gain, maintaining a consistent signal-to-noise ratio at all times.
Additional Details
  • Backwards-compatible 10 GigE Vision interface auto-negotiates to match the speed of connected equipment including NBaseT (5 GigE and 2.5 GigE) and standard 1 Gb/s 1000BaseT GigE Vision
  • Sequence trigger mode for on-the-fly change of gain, exposure, and ROI
  • Supports IEEE 1588 Precision Time Protocol for synchronization in multi-camera applications
  • Triple-stream output enables color and NIR images to be simultaneously output over a single cable
  • Single- and multi-ROI modes
  • Significantly higher NIR sensitivity than previous CCD models

Items Included

  • JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount)
  • Sensor Protection Cap
  • Limited 6-Year Manufacturer Warranty

Additional Resources

No additional resources available

JAI FS-1600T-10GE-NNM Specs

General
Type
Area Scan
Lens Mount
C-Mount
Interface
10 Gb/s GigE Vision
Sensor
1/2.9" IMX273 1.6MP Monochrome Sensor
Sensor Resolution
1440 x 1080
Frame Rate
213 fps
Shutter Type
Global
Video Output
8/10/12-Bit
Power
Power Source
Plug-In Power (Not Included)
DC Input Power
10 to 25 VDC
Power Consumption
11.6 W
Physical
Color
Black / Green
Certifications
CE, FCC, RoHS, WEEE
Operating Conditions
23 to 113°F / -5 to 45°C at 20 to 80% Humidity
Storage Conditions
-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
Dimensions
3.4 x 2.4 x 2.4" / 86.5 x 62 x 62 mm
Weight
9.5 oz / 270 g

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

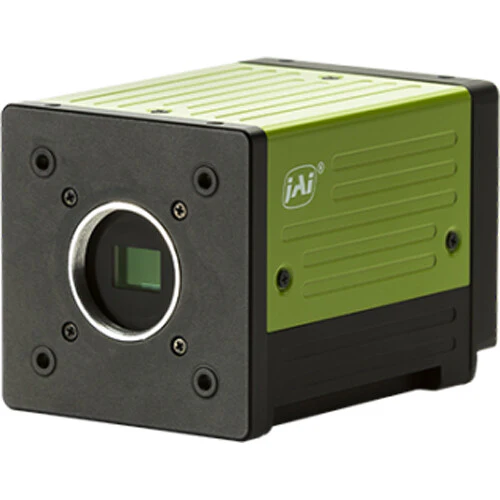

JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

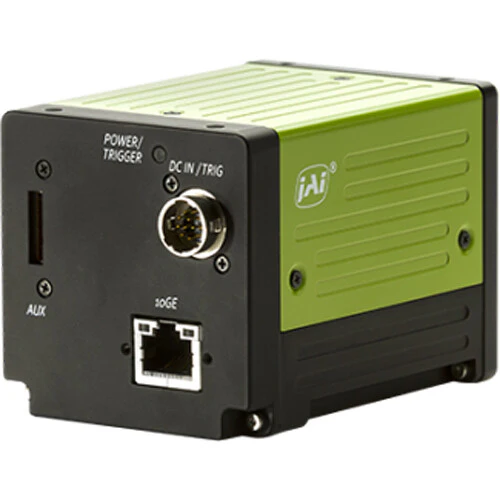

JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

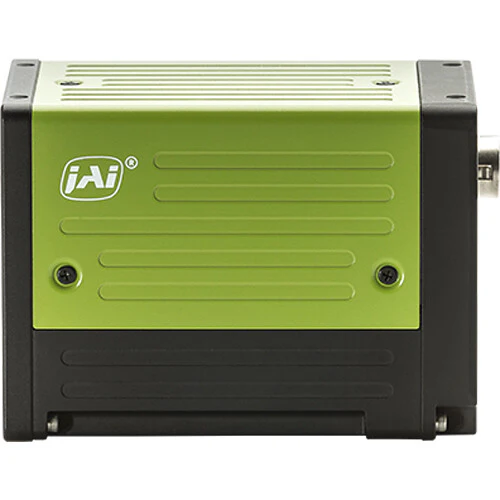

JAI 1.6MP Fusion Series Multispectral Camera (10 GigE, 213 fps, Monochrome, C-Mount) - Image 4
