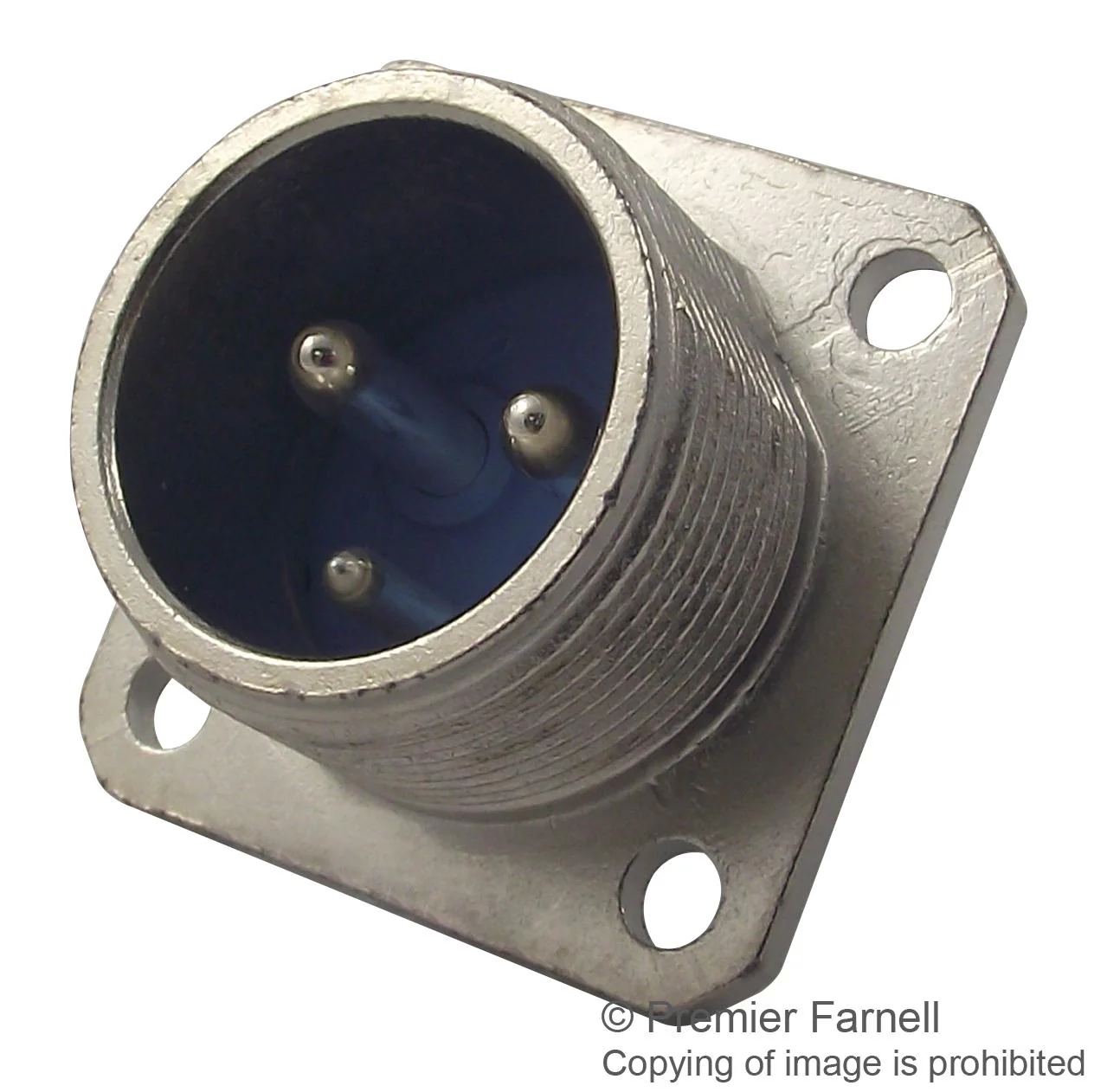

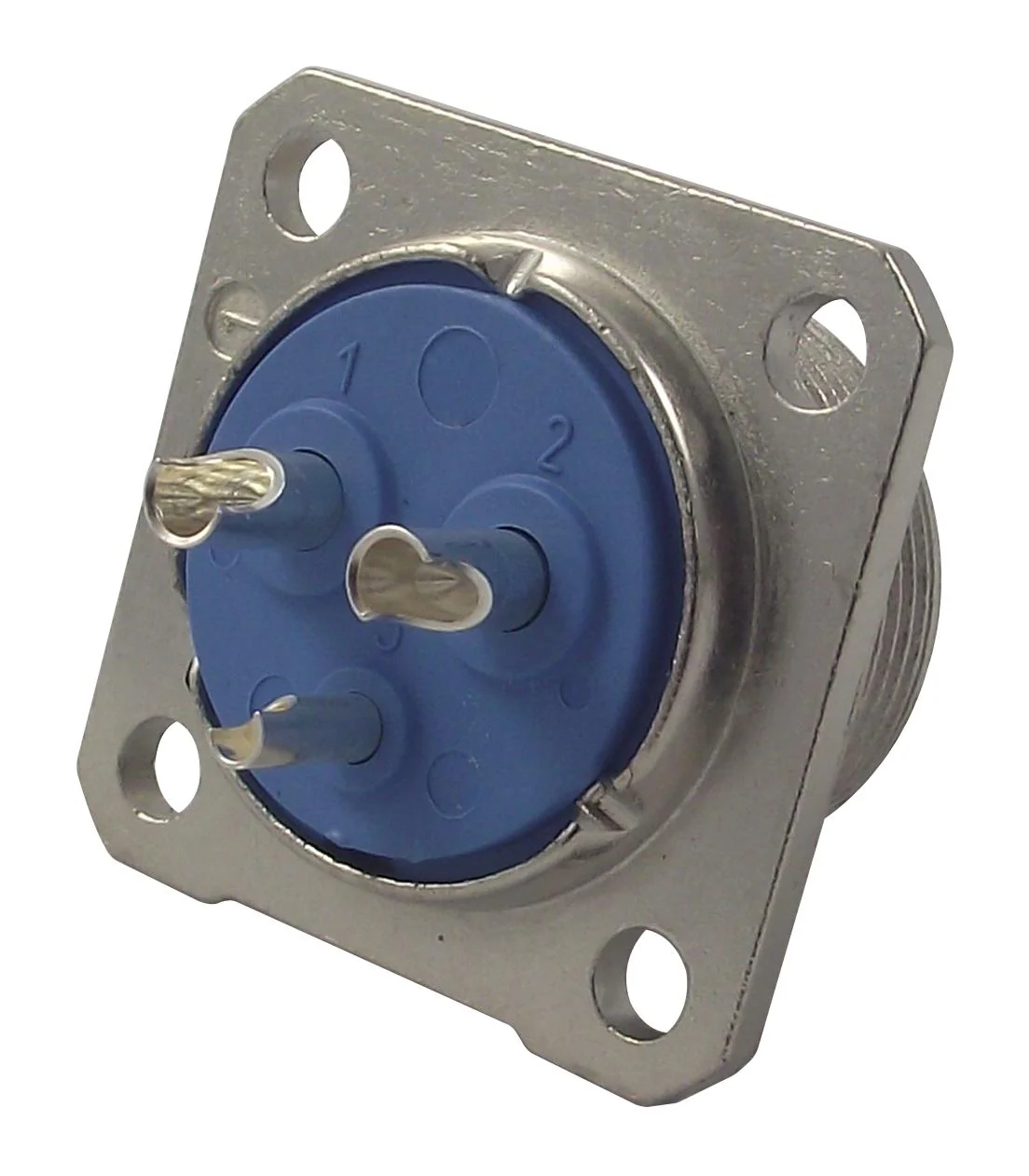

-70%JAEGER 038 351 006 Circular Connector, Standard Series, Panel Mount Receptacle, 3 Contacts, Solder Pin, Metal Body—
$18.86
$5.66The Story
The 038 351 006 is a 3-contact shell-1 size Circular Connector, square flanged pin insert receptacle, male to female type made of nickel plated light metal alloy body, gold finish brass contact.
- 0.0015R Contact resistance
- 5000MR Insulation resistance
- -40 to 100°C Operating temperature range
Applications
Industrial
Product details
| Product Range: Standard Series |
| Circular Connector Shell Style: Panel Mount Receptacle |
| No. of Contacts: 3Contacts |
| Circular Contact Type: Solder Pin |
| Coupling Style: - |
| Connector Body Material: Metal Body |
| Connector Body Plating: - |
| Contact Material: Brass |
| Contact Plating: Gold |
Other details
| Brand | JAEGER |
| Part Number | 038 351 006 |
| Quantity | Each |
| Technical Data Sheet EN |  |
