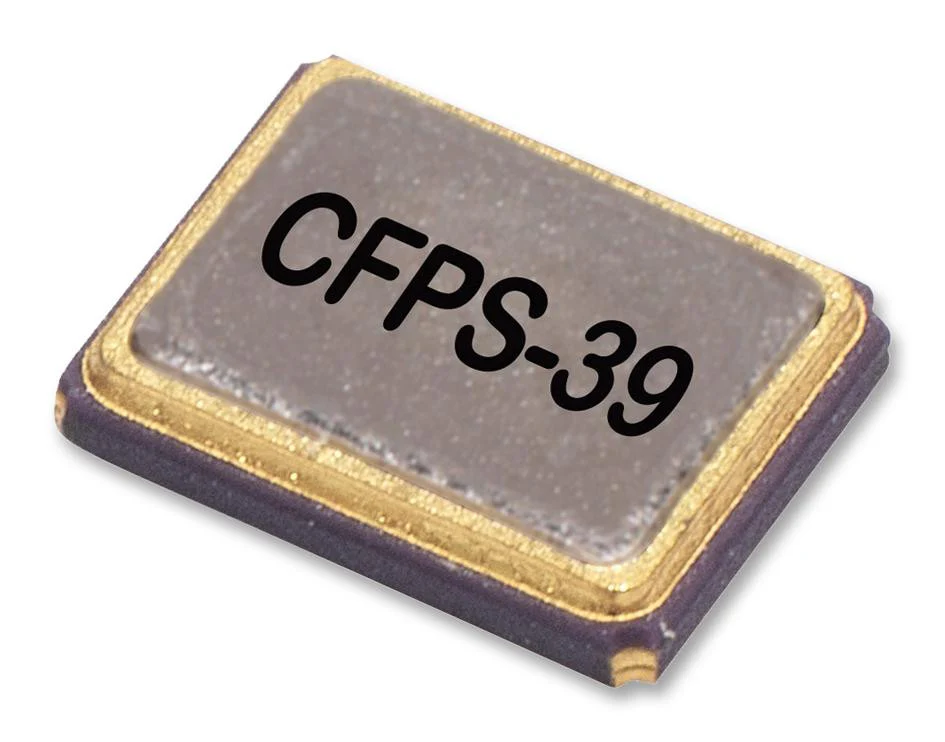

IQD FREQUENCY PRODUCTS LFSPXO025497 Oscillator, Crystal, 30 MHz, 50 ppm, SMD, 3.2mm x 2.5mm, 3.3 V, CFPS-39 Series—
$2.30
The Story
This is a Oscillator, Crystal, 30 MHz, 50 ppm, SMD, 3.2mm x 2.5mm, 3.3 V, CFPS-39 Series product from IQD FREQUENCY PRODUCTS with the model number LFSPXO025497
Product details
| Frequency Nom | 30MHz |
| Frequency Stability + / - | 50ppm |
| Oscillator Case | SMD, 3.2mm x 2.5mm |
| Supply Voltage Nom | 3.3V |
| Product Range | CFPS-39 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Oscillator Output Compatibility | CMOS |
Other details
| Brand | IQD FREQUENCY PRODUCTS |
| Part Number | LFSPXO025497 |
| Quantity | Each |
| Technical Data Sheet EN |  |
