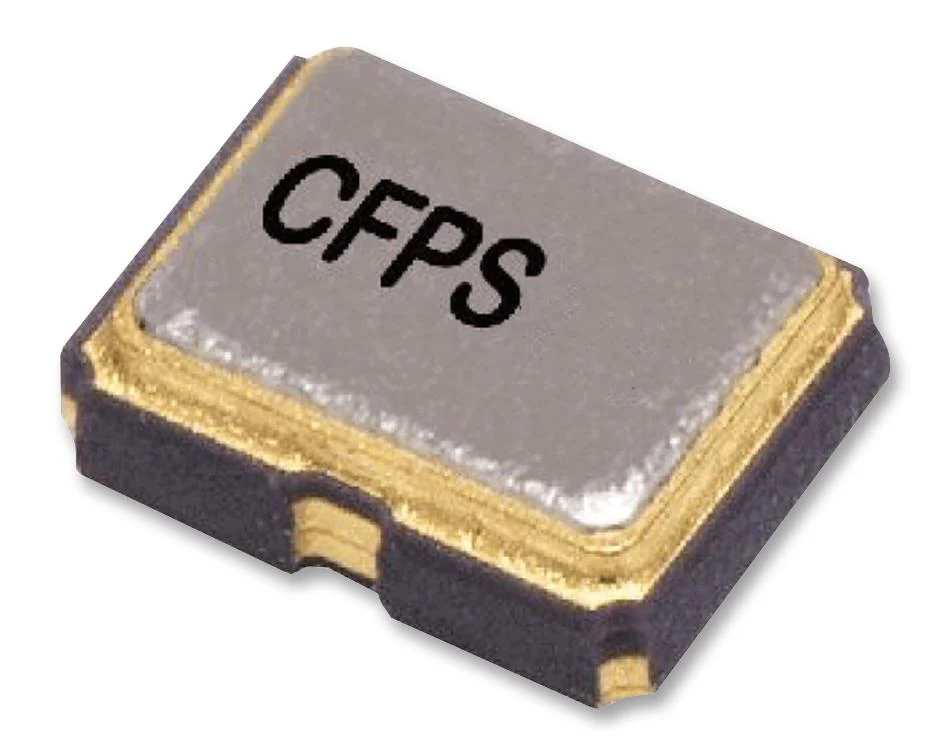

IQD Frequency Products LFSPXO025019 LFSPXO025019 Oscillator Crystal 32 MHz 50 ppm SMD 3.2mm x 2.5mm 3.3 V CFPS-39 Series—
$2.51
The Story

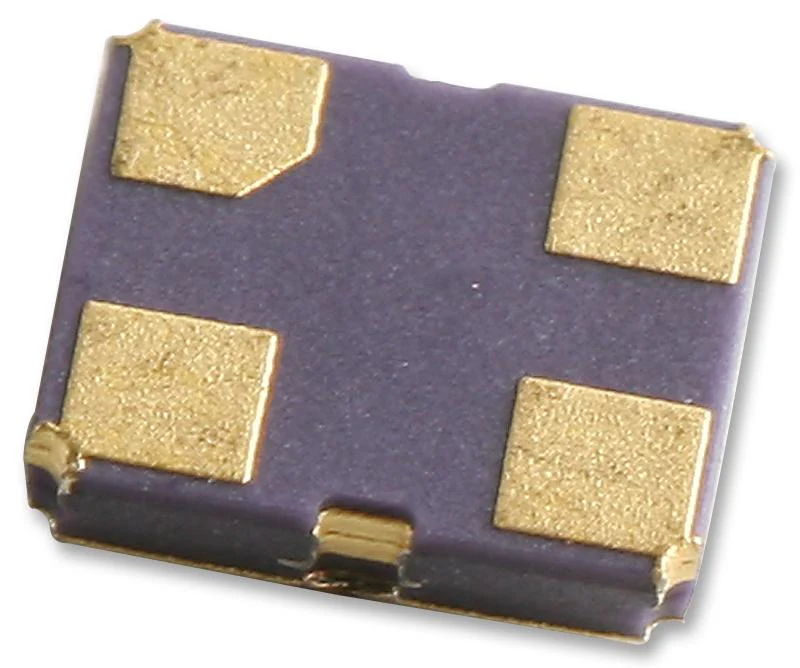

The CFPS-39IB 32.0MHZ is a 3.2 x 2.5mm 3.3V 50ppm Crystal Clock Oscillator with ceramic and a seam sealed metal lid, hermetically sealed. The CFPS-39 series oscillator with logic-1 to pad-1 enables oscillator output, logic-0 to pad-1 disables oscillator output, when disabled the oscillator output goes to the high impedance state. No connection to pad-1 enables oscillator output.
- CMOS output compatibility
- 15pF Maximum drive capability
- 5ns Rise and fall time
- 45 to 55% Duty cycle
Clock & Timing
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | IQD FREQUENCY PRODUCTS |
| Part Number | LFSPXO025019 |
| Quantity | Each |
| Technical Data Sheet EN |  |
