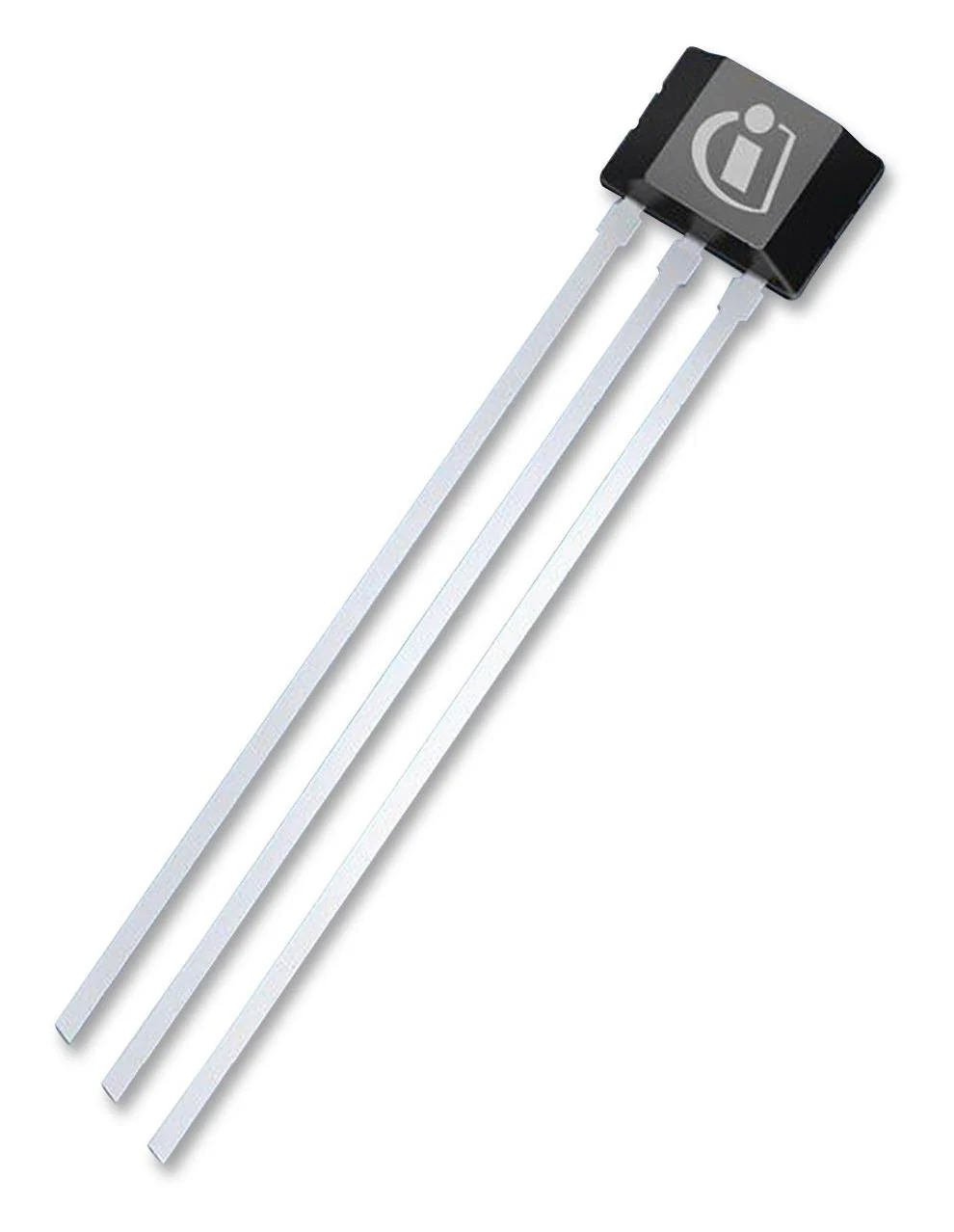

INFINEON TLV49645TAXBXA1 Hall Effect Switch, Unipolar Hall Effect Switch, 0.0075 T, 0.005 T, 3 V, 26 V TLV4964-5TA, SP001274784—
$0.80
The Story
Product Overview
TLV49645TAXBXA1 is a high precision hall effect switch for consumer applications.
- 3.0 to 26V supply voltage, 1.6mA typical supply current
- Open drain output interface, operation from unregulated power supply
- Output overcurrent & overtemperature protection, high ESD performance
- Active error compensation, high stability of magnetic thresholds
- Output rise time is 0.5ms typical at (1.2khm /50pF)
- Power-on time is 80µs typical at (VDD = 3V, B ? BRP - 0.5mT or B ? BOP + 0.5mT)
- Hysteresis is 3.0mT typical
- Delay time is 15 µs typical
- Industrial temperature range from -40°C to +125°C
- 3-pin TO-92S package
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | INFINEON |
| Part Number | TLV49645TAXBXA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
