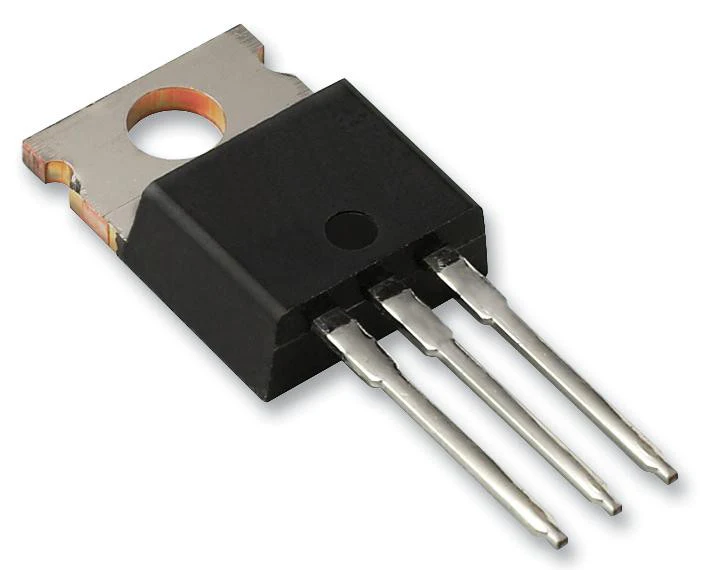

-70%INFINEON IRF1310NPBF MOSFET Transistor, N Channel, 41 A, 100 V, 36 mohm, 10 V, 4 V—
$3.89
$1.17The Story
The IRF1310NPBF is a 100V single N-channel HEXFET� Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using advanced planar technology.
- 175�C Operating temperature
- Dynamic dV/dt rating
- Fully avalanche rated
Applications
Power Management
Product details
| Power Dissipation Pd | 170W |
| Operating Temperature Max | 175�C |
| Continuous Drain Current Id | 41A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 4V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 100V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | TO-220AB |
| On Resistance Rds(on) | 0.036ohm |
| MSL | - |
Other details
| Brand | INFINEON |
| Part Number | IRF1310NPBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
