$1.90
Original: $6.33

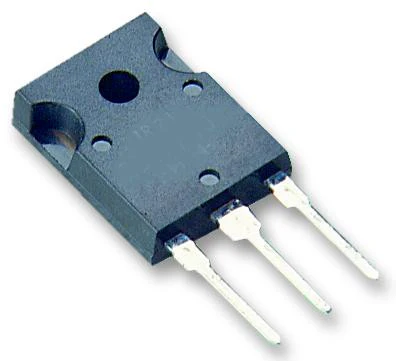

-70%INFINEON IPW80R280P7XKSA1 Power MOSFET, N Channel, 17 A, 800 V, 0.24 ohm, 10 V, 3 V—
$6.33
$1.90The Story
This is a Power MOSFET, N Channel, 17 A, 800 V, 0.24 ohm, 10 V, 3 V product from INFINEON with the model number IPW80R280P7XKSA1
Product details
| Drain Source Voltage Vds | 800V |
| Transistor Case Style | TO-247 |
| Transistor Polarity | N Channel |
| Power Dissipation Pd | 101W |
| Threshold Voltage Vgs | 3V |
| Product Range | CoolMOS P7 Series |
| Rds(on) Test Voltage Vgs | 10V |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 17A |
| No. of Pins | 3Pins |
| On Resistance Rds(on) | 0.24ohm |
| MSL | - |
Other details
| Brand | INFINEON |
| Part Number | IPW80R280P7XKSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
