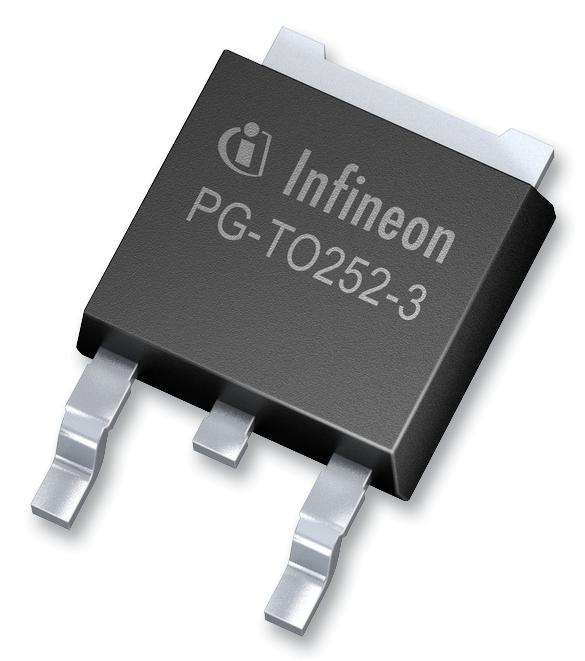

INFINEON IPD90P04P405ATMA2 Power MOSFET, P Channel, 40 V, 90 A, 0.0047 ohm, TO-252 (DPAK), Surface Mount
HomeStore

INFINEON IPD90P04P405ATMA2 Power MOSFET, P Channel, 40 V, 90 A, 0.0047 ohm, TO-252 (DPAK), Surface Mount

INFINEON IPD90P04P405ATMA2 Power MOSFET, P Channel, 40 V, 90 A, 0.0047 ohm, TO-252 (DPAK), Surface Mount

$1.18

Original: $3.94

-70%
INFINEON IPD90P04P405ATMA2 Power MOSFET, P Channel, 40 V, 90 A, 0.0047 ohm, TO-252 (DPAK), Surface Mount—

$3.94

$1.18

The Story

Product Overview

IPD90P04P405ATMA2 is a OptiMOS®-P2 power-transistor in a 3 pin TO-252 package.

  • Continuous drain current is -90A
  • Power dissipation is 125W
  • P-channel - normal level - enhancement mode
  • AEC qualified
  • 175°C operating temperature
  • 100% avalanche tested

Product details

Technical Specifications

Channel Type

P Channel

Continuous Drain Current Id

90A

Transistor Case Style

TO-252 (DPAK)

Rds(on) Test Voltage

10V

Power Dissipation

125W

Operating Temperature Max

175°C

Qualification

AEC-Q101

SVHC

No SVHC (21-Jan-2025)

Drain Source Voltage Vds

40V

Drain Source On State Resistance

0.0047ohm

Transistor Mounting

Surface Mount

Gate Source Threshold Voltage Max

4V

No. of Pins

3Pins

Product Range

OptiMOS P2 Series

MSL

MSL 1 - Unlimited

Other details

Brand INFINEON
Part Number IPD90P04P405ATMA2
Quantity Each (Supplied on Cut Tape)
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
