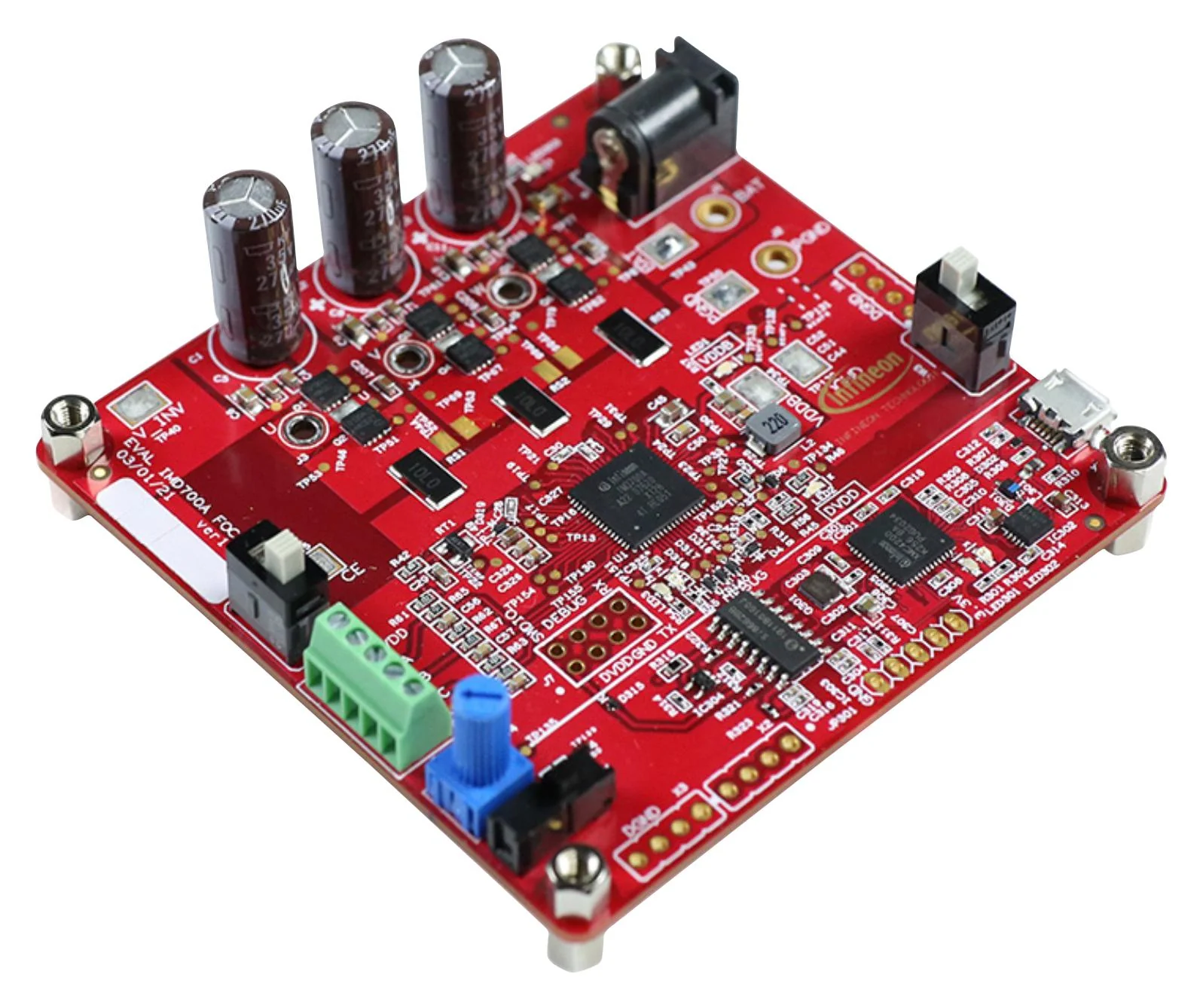

Infineon EVALIMD700AFOC3SHTOBO1 Evaluation Board IMD701A Bldc Motor Driver 300 W Control—
$382.60
The Story
EVALIMD700AFOC3SHTOBO1 is an evaluation board fully integrated BLDC motor drive solution based on the MOTIX� IMD701A. The EVAL_IMD700A_FOC_3SH, with configurable gate drive, on-board power supplies and protection, is capable of driving up to 300 W motor utilizing sensorless FOC control. Using MOTIX� IMD701A, our latest fully programmable motor controller integrating XMC1404 microcontroller with MOTIX� 6EDL7141 3-phase gate driver IC in one package to enable the development of next generation battery operated products using BLDC or PMSM motors.
- Configurable gate drive, on-board power supplies and protection
- Can operate independently or with Infineon motor control GUI
- Operates up to 300W with no heatsink required
- Supply voltage range from 12V to 24V
- 20A maximum output current
Other details
| Brand | INFINEON |
| Part Number | EVALIMD700AFOC3SHTOBO1 |
| Quantity | Each |
| Manufacturer Catalogue EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
