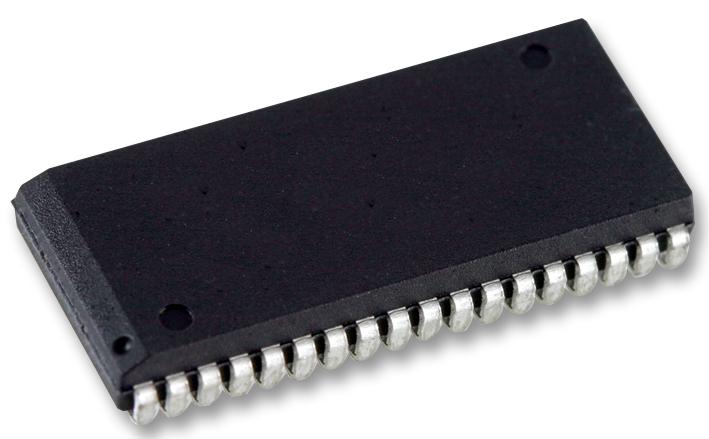

INFINEON CY7C1049GN-10VXIT SRAM, 4 Mbit, 512Kword x 8bit, 4.5 V to 5.5 V, SOJ-36 SP005648627, CY7C1049GN-10VXIT

CY7C1049GN-10VXIT is a CY7C1049GN high-performance CMOS fast static RAM device organized as 512K words by 8-bits. Data writes are performed by asserting the chip enable active-low (CE) and write enable (WE) inputs LOW, while providing the data on I/O0 through I/O7 and address on A0 through A18 pins. Data reads are performed by asserting the chip enable active-low (CE) and output enable (OE) inputs LOW and providing the required address on the address lines. Read data is accessible on the I/O lines (I/O0 through I/O7).

• High speed is tAA = 10ns
• Low active and standby currents
• Active current: ICC = 38mA typical
• 1.0V data retention
• TTL-compatible inputs and outputs
• 4.5V to 5.5V voltage range
• 36-pin moulded SOJ package
• Industrial temperature range from �40°C to +85°C
• 65nm process technology
