-70%Iluminar IR312-2 Series Medium-Range IR Illuminator (940nm, 120°)—
$959.01
$287.70The Story
Iluminar IR312-C120-24-2 Overview

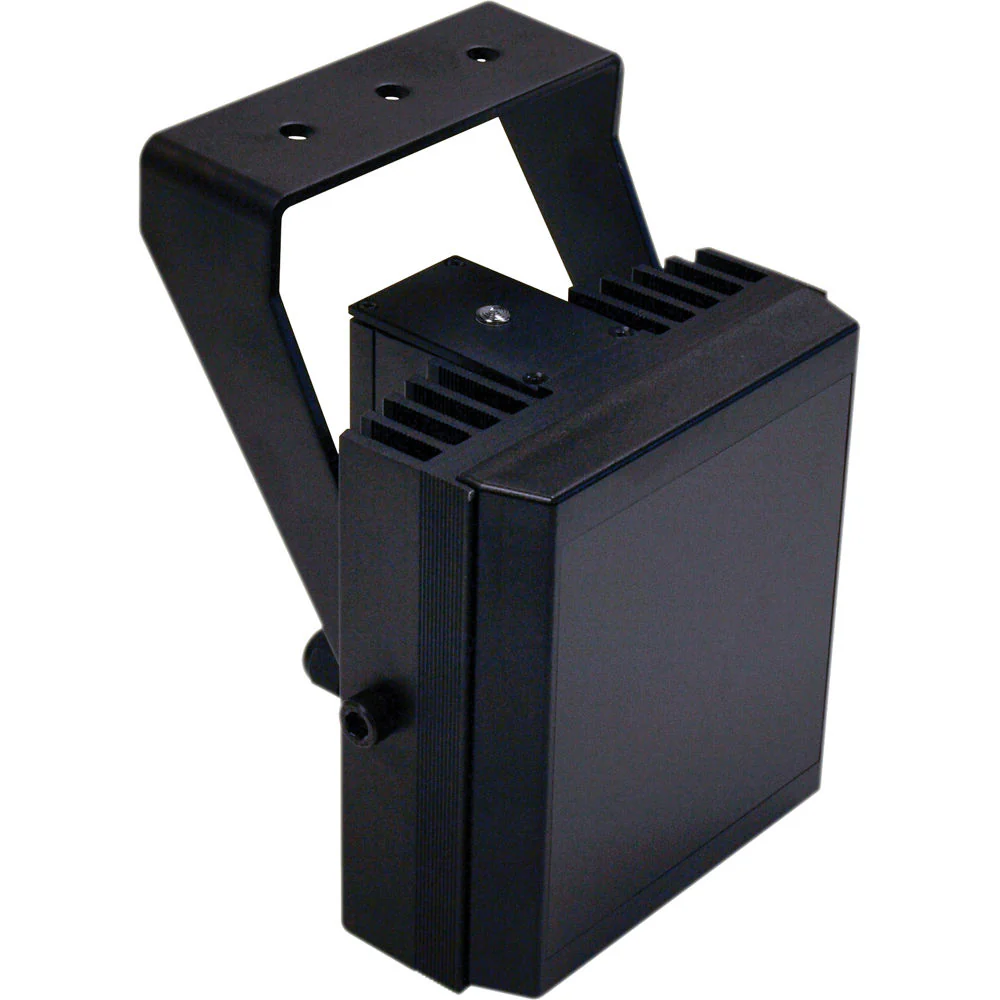

The black 940nm IR312-2 Series Medium-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 33' and offers an illumination angle of 120°. The IP67-rated and vandal-proof IR illuminator can be used outdoors. The anodized aluminum housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140°F.
Medium-range IR illuminator with SMT LED technology
Illumination distance up to 33' and illumination angle up to 120°
940nm wavelength
115' horizontal field of view
Low power consumption of 24W
IP67 weatherproof rating
Built-in photocell (IR on/off)
Telemetry input for remote switching
Pressure equalization vent prevents thermal expansion and pressure cycling
Black anodized finish
Black powder-coated stainless steel wall mount
In the Box
- Iluminar IR312-2 Series Medium-Range IR Illuminator (940nm, 120°)
- M6 Allen Key
Iluminar IR312-C120-24-2 Specs
| Illumination Angle | 120° |
| Illumination Distance | 33' / 10 m |
| Horizontal Field-of-View | 115' / 35 m |
| Wavelength | 940 nm (Covert) No Visible Glow from Illuminator - Ideal for Transportation or High-Security Applications |
| Electronics | High-Efficiency Surface Mount High-Power LEDs with Advanced Current Limited Integral Control Circuitry |
| Number of SMT LEDs | 8 |
| Photocell | Adjustment via Remote |
| Illumination | Adjustment via Remote |
| Mount | Black, Powder-Coated Stainless Steel Wall Mount Adjustable via M6 Allen Key (Included) |
| Construction | Extruded Aluminum |
| Front Window | Polycarbonate High Transmittance Protective (Vandal-Proof) IR Filter |
| Power Cable | 9' / 3 m |
| Input Voltage | 12 to 32 VDC or 24 VAC |
| Input Current | 1 A at 24 VAC |
| Power Consumption | 24 W |
| IP Rating | IP67 in Accordance with EN 60529:1992 |
| Certifications | Safety: EN 60598:2004 Electrical Safety EN 60825-1 Laser Eye Safety EMC: EN 61000, FCC Part 15.107 15.108 Class B WEEE Directive 202/96/EC RoHS Directive 202/95/EC |
| Operating Temperature | -58 to 140°F / -50 to 60°C |
| Dimensions | 4.33 x 4.33 x 3.15" / 110 x 110 x 80 mm |
| Weight | 2.2 lb / 1 kg |
Packaging Info
| Package Weight | 3.455 lb |
| Box Dimensions (LxWxH) | 12.5 x 6 x 5.7" |
