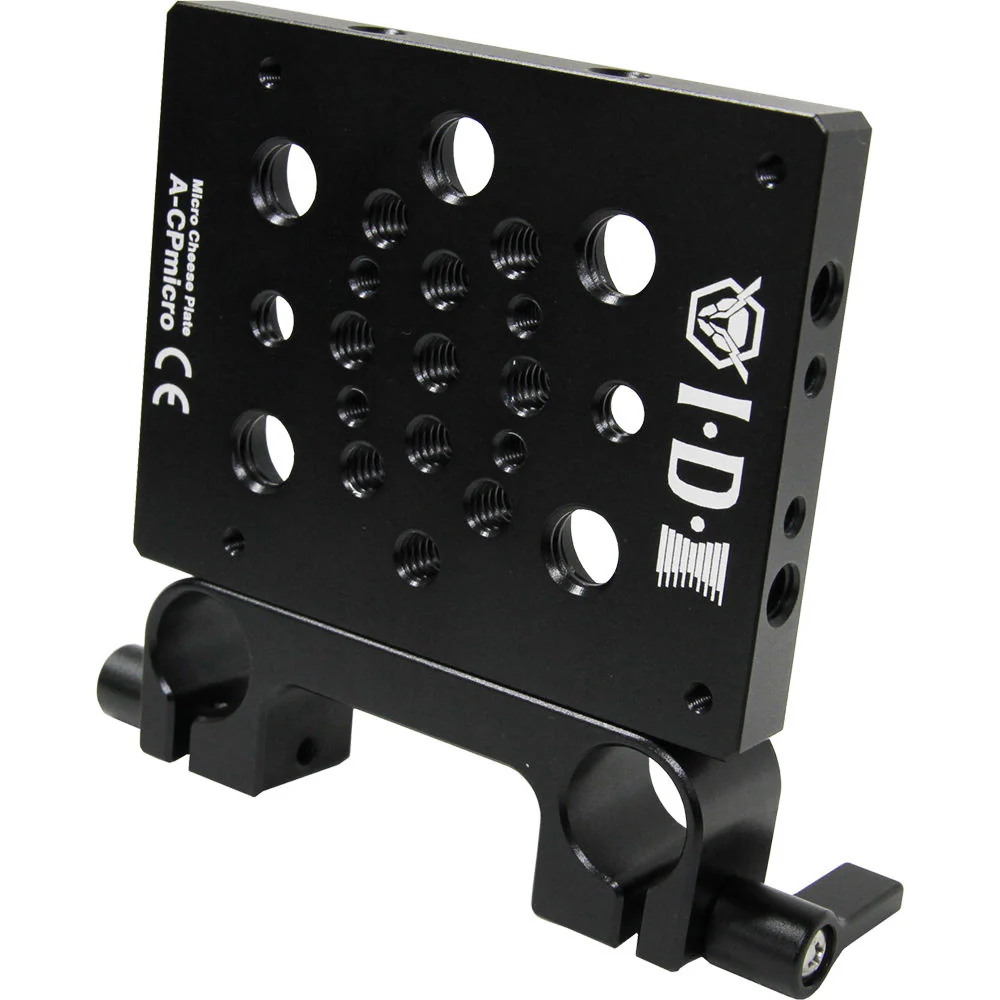

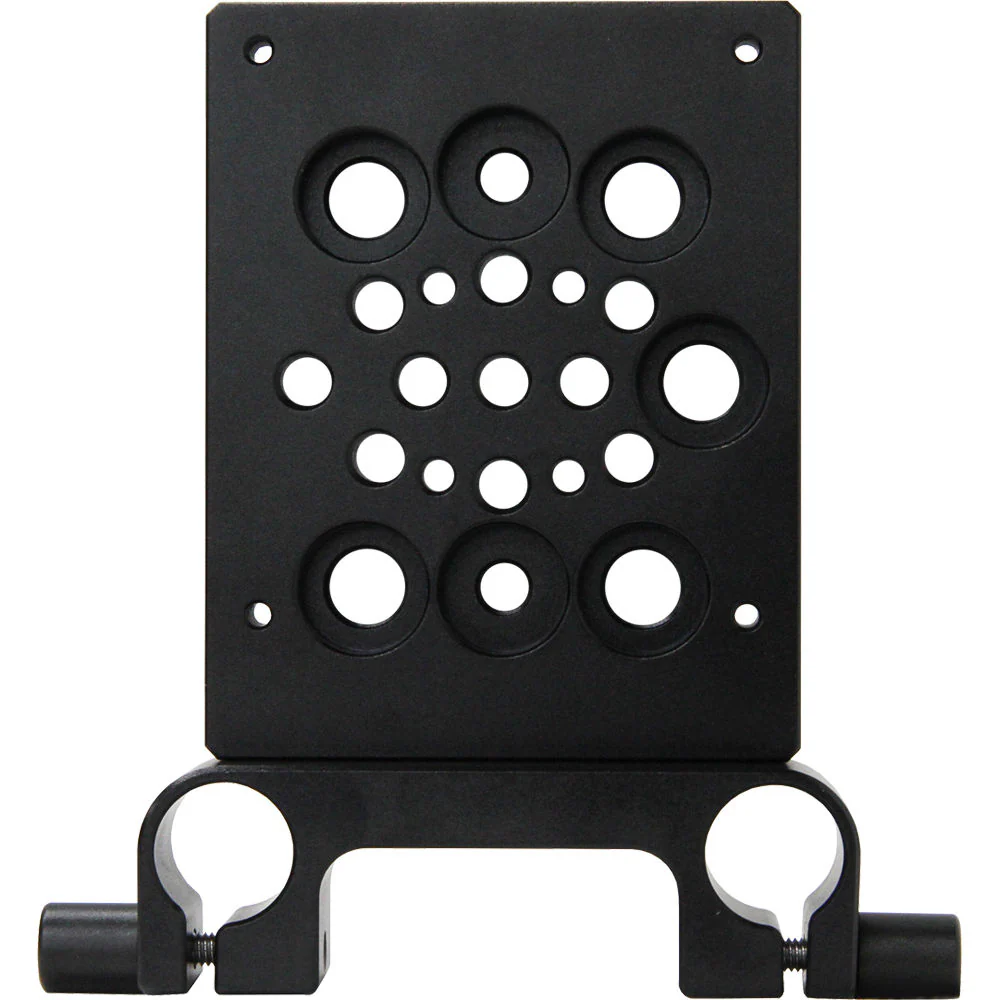

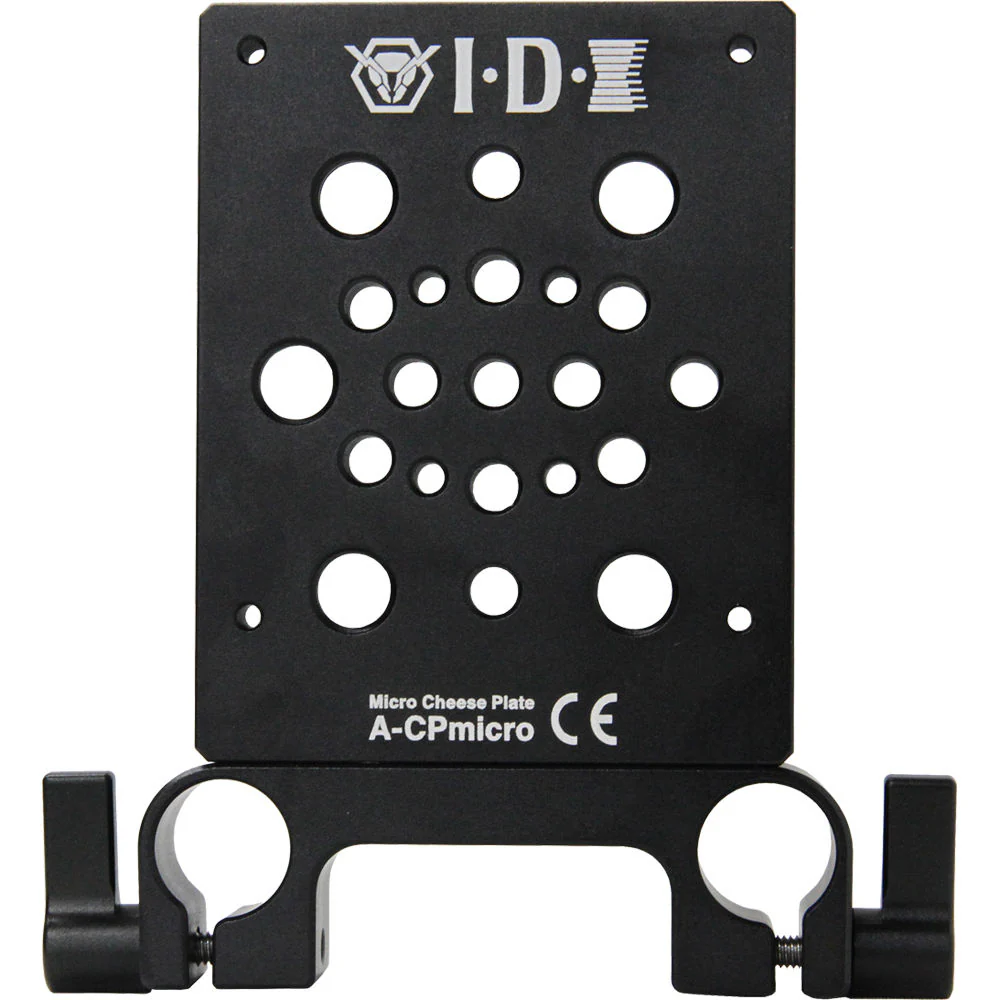

IDX System Technology Multipurpose Cheese Plate for P-Vmicro V-Mount Plate

Cheese Plate with 15mm Rod Clamp

Compatible wtih V-Mount Battery Plate

Multiple 1/4"-20 and 3/8"-16 Threads

Aluminum Construction

Use this Multipurpose Cheese Plate from IDX to mount the P-Vmicro V-mount battery plate onto a separately available 15mm rod. The sturdy aluminum cheese plate provides numerous 1/4"-20 and 3/8"-16 threads for accessory mounting and a 15mm rod clamp. The rod ports are tightened using thumbscrews.

Compatibility P-Vmicro V-mount battery plate
15mm rods UPC: 825781013144

Material of Construction	Anodized Aluminum
Mounting Threads	19 x 1/4"-20 6 x 3/8"-16 4 x M4 4 x M3
Rod Standard	15 mm
Dimensions	3.11 x 4.29 x 0.71" / 7.9 x 10.9 x 1.8 cm
Weight	6.0 oz / 170 g

Package Weight	0.445 lb
Box Dimensions (LxWxH)	5.05 x 4.6 x 1.05"
