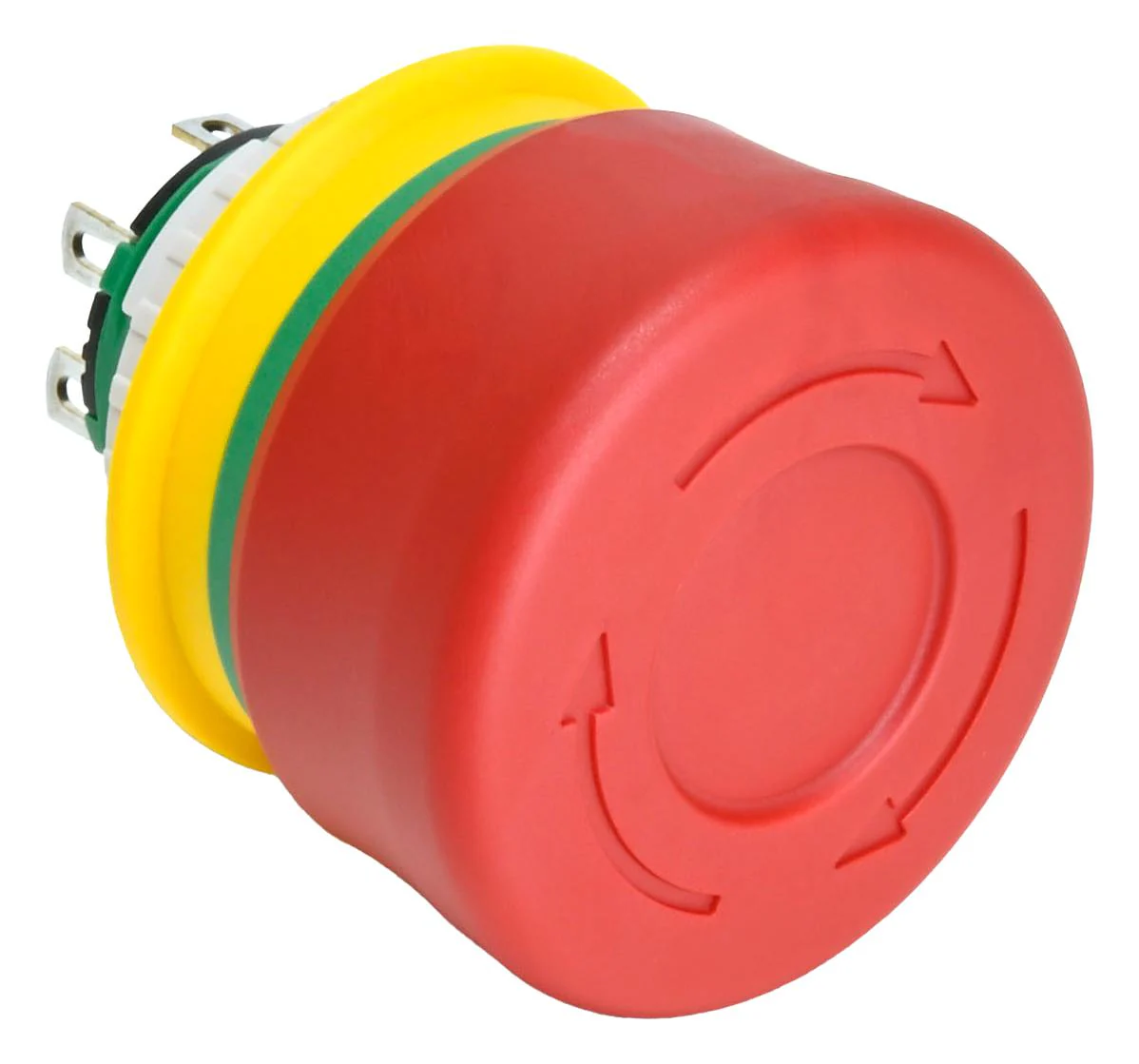

IDEC XA1E-BV3SG02R Emergency Stop Switch, Red, 16 mm, DPST-NC, Pushlock Turn Reset/Push-Pull, Solder Lug, 3 A, 125 V

XA1E-BV3SG02R is a ø16 XA series emergency stop, push lock pull or turn reset switch. It has a compact and unibody design with a panel depth of 12.6mm. Applicable standards are IEC 60947-1, EN 60947-1, JIS C 8201-1 IEC 60947-5-1, EN 60947-5-1, JIS C 8201-5-1, IEC60947-5-5, EN60947-5-5, JIS C 8201-5-5, UL60947-5-5, UL991, NFPA79, ISO13850, UL508, CSA C 22.2 No. 14, GB/T14048.5.

• 2NC contact, solder terminal style, red bright red button colour
• Safety lock mechanism (IEC60947-5-5: 6.2), 50mohm max. (initial value) contact resistance
• Direct opening action mechanism (IEC60947-5-5: 5.2, IEC60947-5-1 annex K.), reverse energy structure
• Panel front IP65, IP67, IP69K, UL Type 4X degree of protection, 100Mohm min insulation resistance
• Indicator and escape structure, 900 operations per hour operation frequency
• 100000 times min, 250000 time min (24VAC/DC, 100mA) electrical durability
• Short-circuit protection, rated operating voltage range from 30 to 250V, 5A rated current
• 0.8 to 0.9N·m recommended tightening torque of locking ring range
• 1.25mm² max connectable wire, 310 to 350°C, within 3 seconds terminal soldering conditions
• Operating temperature range from -25 to +70?C
