$10.81
Original: $36.04

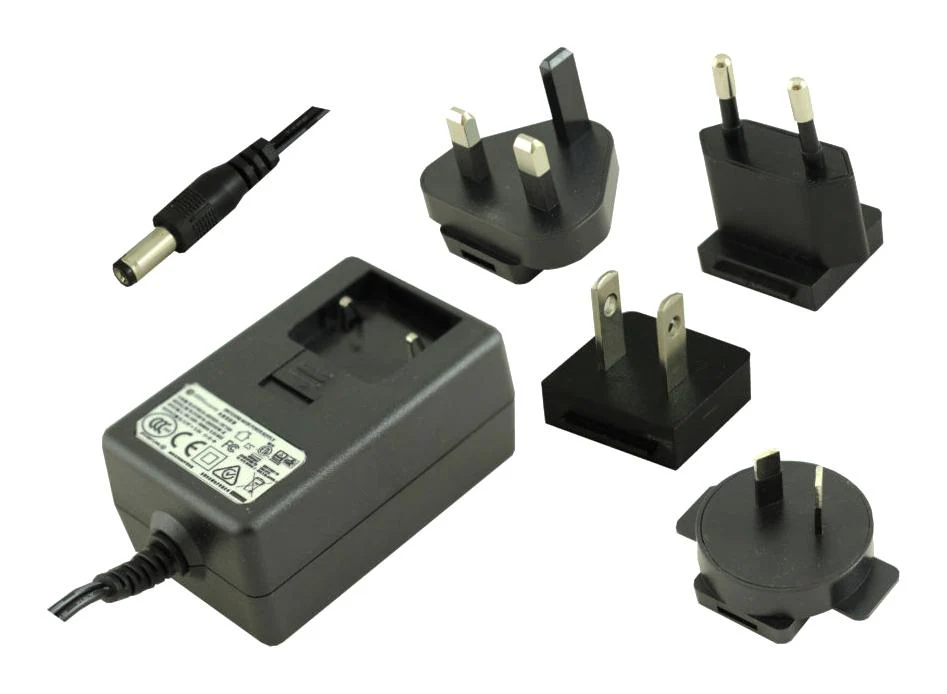

-70%Ideal Power 15DYS850-150336W-K AC/DC Supply ITE & Hazardous Locations 1 Output 50 W 15 VDC 3.36 A—
$36.04
$10.81The Story
The 15DYS650-150336W-K from Ideal Power is an AC to DC interchangeable power supply. Certified to several international approvals to EN 60950-1 & EN 60065 standards. It is supplied with 4 interchangeable AC plugs (UK, Euro, US, Aust).
- Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
- Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
- 15VDC output voltage, ±5% voltage regulation at constant voltage mode
- 3.36A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
- 50W maximum output power, size of 84.5mm x 52mm x 36mm
- 100% ATE tested
- NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
- Ambient operating temperature range from 0°C to 45°C
- High reliability, built-in OVP, OCP & SCP
- 100% smart burn-in test for 4hours
Consumer Electronics, Industrial
Product details
| Power Supply Applications | ITE & Hazardous Locations |
| No. of Outputs | 1 Output |
| Output Power Max | 50W |
| Output Voltage - Output 1 | 15VDC |
| Output Current - Output 1 | 3.36A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | - |
| Plug Type | AU, EU, UK, US |
Other details
| Brand | IDEAL POWER |
| Part Number | 15DYS850-150336W-K |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The 15DYS650-150336W-K from Ideal Power is an AC to DC interchangeable power supply. Certified to several international approvals to EN 60950-1 & EN 60065 standards. It is supplied with 4 interchangeable AC plugs (UK, Euro, US, Aust).
- Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
- Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
- 15VDC output voltage, ±5% voltage regulation at constant voltage mode
- 3.36A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
- 50W maximum output power, size of 84.5mm x 52mm x 36mm
- 100% ATE tested
- NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
- Ambient operating temperature range from 0°C to 45°C
- High reliability, built-in OVP, OCP & SCP
- 100% smart burn-in test for 4hours
Consumer Electronics, Industrial
Product details
| Power Supply Applications | ITE & Hazardous Locations |
| No. of Outputs | 1 Output |
| Output Power Max | 50W |
| Output Voltage - Output 1 | 15VDC |
| Output Current - Output 1 | 3.36A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | - |
| Plug Type | AU, EU, UK, US |
Other details
| Brand | IDEAL POWER |
| Part Number | 15DYS850-150336W-K |
| Quantity | Each |
| Technical Data Sheet EN | |
