$18.70
Original: $62.32

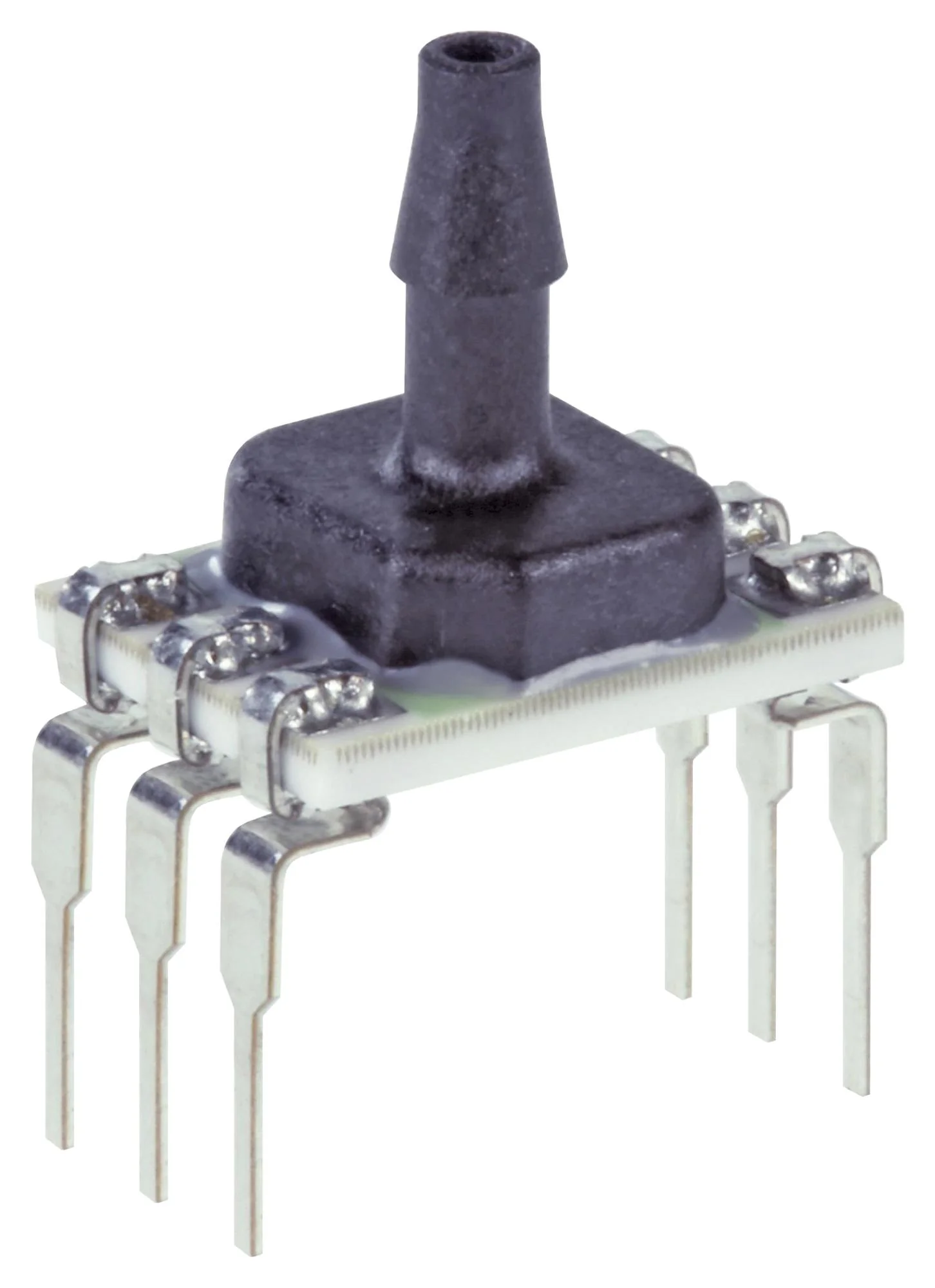

-70%Honeywell ABPDANV030PGSA3 Pressure Sensor 30 psi SPI Gauge 3.3 VDC Single Axial Barbed 3.1 mA—
$62.32
$18.70The Story
ABP series basic amplified board mount pressure sensors are piezoresistive silicon pressure sensors offering a ratiometric output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board application specific integrated circuit (ASIC). Calibrated output values for pressure are updated at approximately 1KHz for analogue and 2KHz for digital. All products are designed and manufactured according to ISO 9001 standards. ABP series is calibrated over the temperature range of 0°C to 50°C (32°F to 122°F). These sensors measure gage and differential pressures. Applications include medical, industrial and commercial.
- Proprietary Honeywell technology, protected by multiple global patents
- Industry leading long term stability of ±0.25 %FSS, total error band (TEB) of ±1.5%FSS
- Industry-leading accuracy of ±0.25 %FSS BFSL, high burst pressures, industry-leading flexibility
- Meets IPC/JEDEC J-STD-020D.1 moisture sensitivity level 1 requirements
- Energy efficient, small size (as small as 8mm x 7mm)
- DIP (Dual Inline Pin) package, 3.3V supply voltage
- SPI output type
- Single axial barbed port
- Silicone gel coating, diagnostics on
- 0psi to 30psi gage measurement
Other details
| Brand | HONEYWELL |
| Part Number | ABPDANV030PGSA3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Enhanced Product Overview EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
