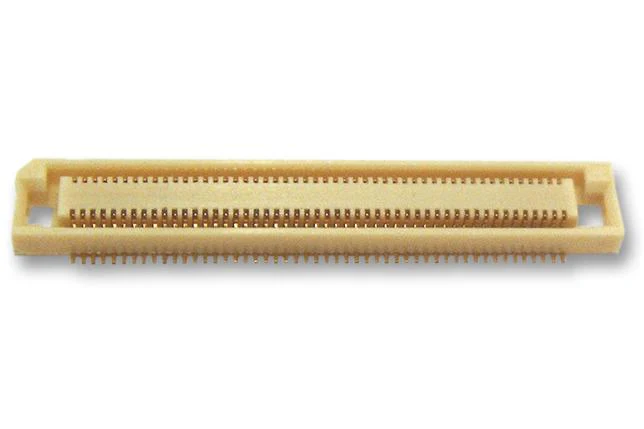

HIROSE(HRS) FX8C-100S-SV5(91) FX8C-100S-SV5(91) Mezzanine Connector 0.6mm Height Receptacle 0.6 mm 2 Rows 100 Contacts Surface Mount—
$6.45
The Story
The FX8C series Stacking Connector feature stacking height of mated connector ranges from 3 to 16mm. The coplanar tolerance at the solder area is less than 0.1mm. Built-in guide ribs and a chamfer allow for ±0.6mm of mis-alignment and ensure easy mating. Bosses located on the bottom side of the connector differ in position and diameter to prevent mis-orientating the parts on the board. In order to enhance mounting reliability and accuracy when mounting two of the same connectors at the same time, Hirose offers the option of having two connectors attached to one another by means of a spacer. Pitch between the two connectors is 11mm.
- SMT Coplanarity
- Mis-insertion Prevention
- Dual Connected Products
Industrial
Other details
| Brand | HIROSE(HRS) |
| Part Number | FX8C-100S-SV5(91) |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
