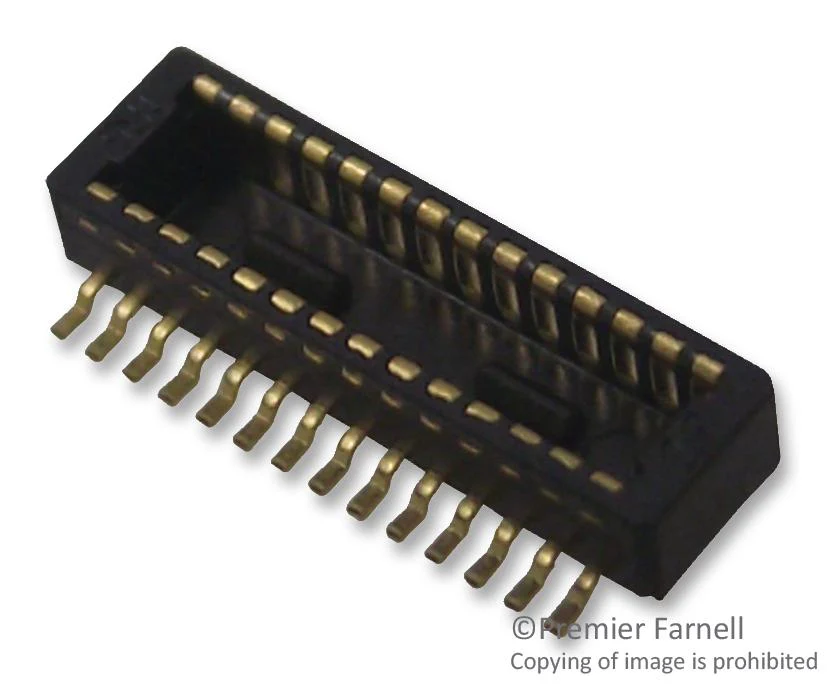

-70%HIROSE(HRS) DF40C-24DP-0.4V(51) Mezzanine Connector Header 0.4 mm 2 Rows 24 Contacts Surface Mount Phosphor Bronze—
$1.33
$0.40The Story
The DF40 series Board-to-Board and Board-to-FPC Connector with space saving design that has a minimum connector width, yet still retains a sufficient vacuum area for easy pick-and-place mounting. In addition to its space saving design, several stack heights are available and add versatility to any application. Stack heights - 1.5, 2, 2.5, 3, 3.5 and 4mm. Despite its small stature and low profile, the contacts deliver strong contact forces and an effective mating length of 0.45mm on the 1.5mm stacking height. This connector utilizes a locking system that prevents accidental unmating issues and emits a clear tactile click to ensure that mating has been completed. The use of guide ribs allows 0.33mm of self-alignment on this connector. Both sides of the connector have been reinforced with the addition of shock absorbing ribs. Nickel-plated barriers were added to protect the contact areas from potential solder wicking.
- High density mounting
- Multiple stack height options
- High contact reliability
- Reinforced structure with shock absorbing ribs
- Solder wicking prevention
- Contamination resistant design
- High speed signal with noise prevention
- Minimum Width: 3.38mm
Industrial
Footnotes The contacts in each of the 4 corners serve as metal solder brackets only and should NOT be used for current carrying.Other details
| Brand | HIROSE(HRS) |
| Part Number | DF40C-24DP-0.4V(51) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
| Drawing EN | |
