Original: $749.94
-70%$749.94
$224.98The Story
Hikvision DS-2CD6425G1 Overview

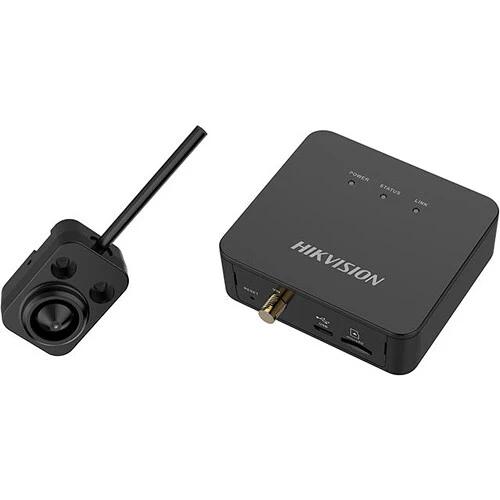

Designed for covert surveillance, the Hikvision DS-2CD6425G1-20 2MP Modular Network Camera with 3.7mm Pinhole Sensor includes a main body and an L-shaped sensor unit with a 3.7mm pinhole lens and 6.6' cable for flexible placement. The camera uses a 1/2.8" progressive scan CMOS sensor to capture 1080p resolution video at 30 fps. A 75.5° horizontal field of view is delivered by the 3.7mm lens. Two-way audio is possible thanks to an audio input and output. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Hikvision DS-2CD6425G1 Specs
| Sensor | 2 MP 1/2.8" CMOS |
| Focal Length | 3.7mm |
| Maximum Aperture | f/2.5 |
| Lens Field of View | Horizontal: 75.5° Vertical: 41.6° Diagonal: 87.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.002 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, PCM |
| Pan/Tilt | None |
| Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Application Programming Interface (API) | ONVIF, ISAPI, SDK, ISUP 5.0 |
| Analytics | Motion Detection, Video Tampering Alarm, Exception (HDD Full, HDD Error, Network Disconnected), Video Quality Diagnosis, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection, Defocus Detection, Scene Change Detection |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 3.65 W |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | Bulgarian Czech English Estonian French German Hungarian Italian Japanese Korean Portuguese Russian Slovak Spanish Thai Traditional Chinese Turkish Vietnamese |
| Dimensions | H: 2.7 x W: 3.1 x L: 1.0" / H: 69.0 x W: 77.5 x L: 26.0Â mm |
| Weight | 0.2Â lb / 90Â g |
Hikvision DS-2CD6425G1 Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
