Original: $719.03
-70%$719.03
$215.71The Story
Headliner HL90100 Overview

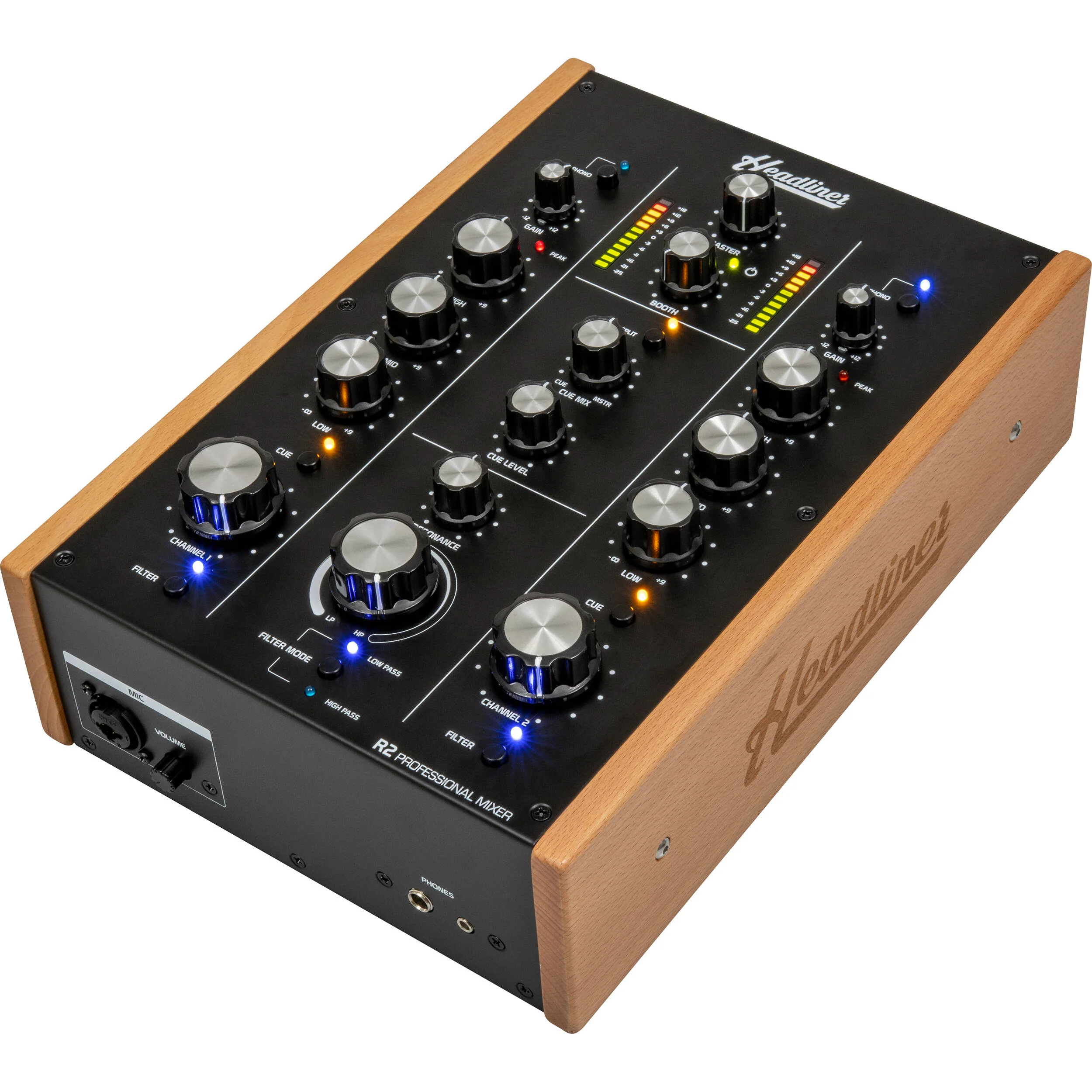

House music, techno, and classic funk DJs who also enjoy spinning soul and disco jams will delight in the technical prowess and sleek design of the R2 2-Channel Rotary DJ Mixer from Headliner. The versatile rotary DJ mixer features two stereo channels with selectable Line and Phono RCA inputs with gain and peak LEDs and three-band isolator EQs on each channel, a mic input with level control, and an integrated, high-current headphone amplifier. A built-in analog filter boasts High-Pass and Low-Pass modes with frequency and resonance control and genuine ALPS potentiometers round out the many features on this feature-rich unit.
The R2 has independent Master and Booth outputs with balanced XLR and unbalanced RCA connectors for added flexibility when connecting to any sound system. There is also a headphone selector, a large channel volume control knob, and a filter activation switch with LED status indicators. Connect any type of headphones you desire via dual 1/4" and 1/8" jacks and manipulate the headphone Cue section to control volume and to mix between Cue and Master listening modes or blend the two for executing seamless mixes from one track to another. The compact, high-quality unit features a classic look with a sturdy metal enclosure adorned with stained wood side panels.
- Two stereo channels with selectable Line and Phono RCA inputs
- Each channel features gain control with peak LED, 3-band isolator EQ, headphones Cue selector with LED, channel volume control, and filter activation switch with LED
- Master channel features analog filter, headphone monitoring, and output control section
- Analog filter features selectable High-Pass / Low-Pass filter modes with frequency and resonance controls
- Genuine ALPS potentiometers
- Headphone Cue control section features headphones volume control, headphones mix control (Cue/Master), and split monitor switch
- High-current headphone amplifier with dual 1/4ďż˝ and 3.5mm jacks

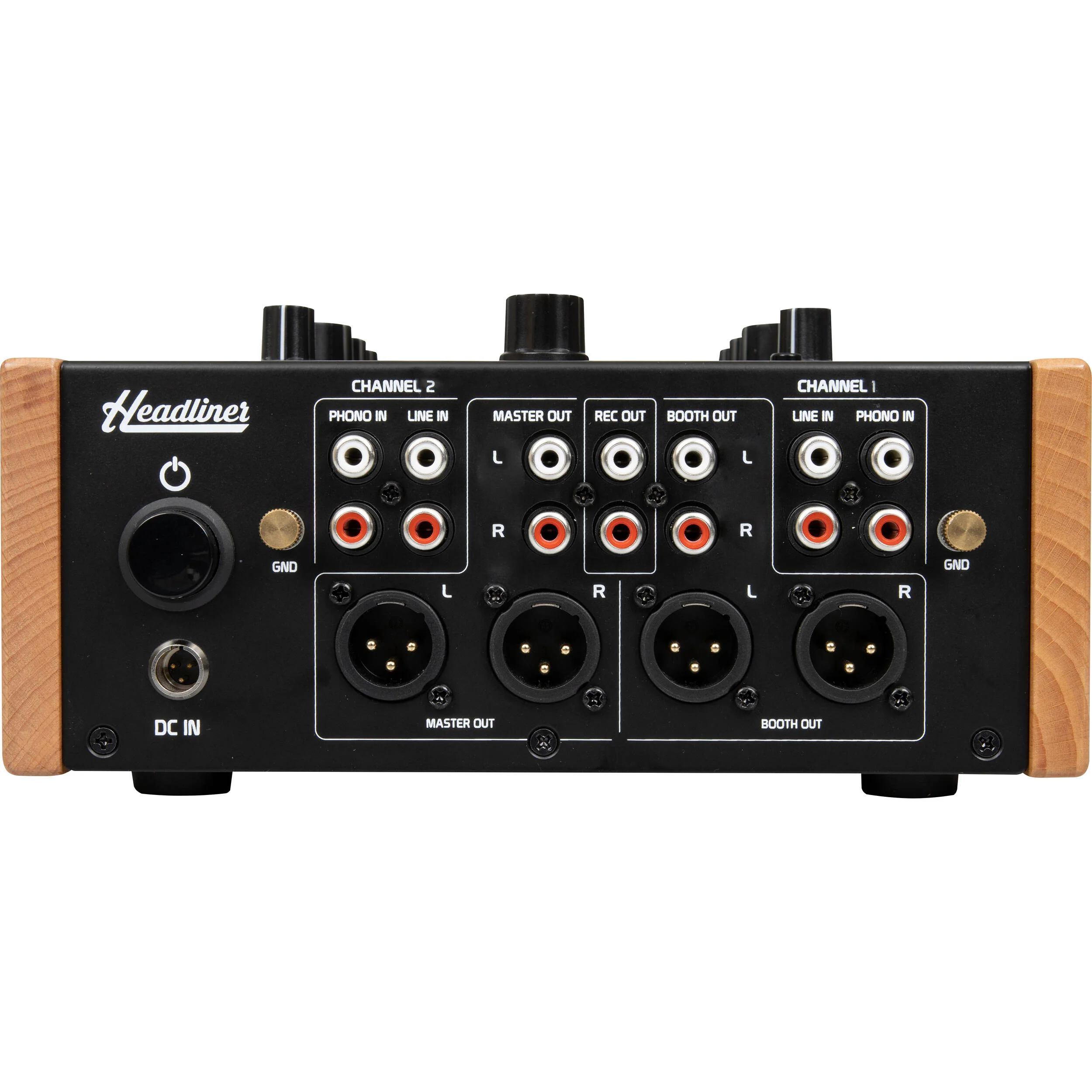

- Independent Master and Booth outputs with volume controls, balanced XLR outputs, and unbalanced RCA outputs
- Additional Record output with unbalanced RCA jacks
- Dual LED level meters for the Master output

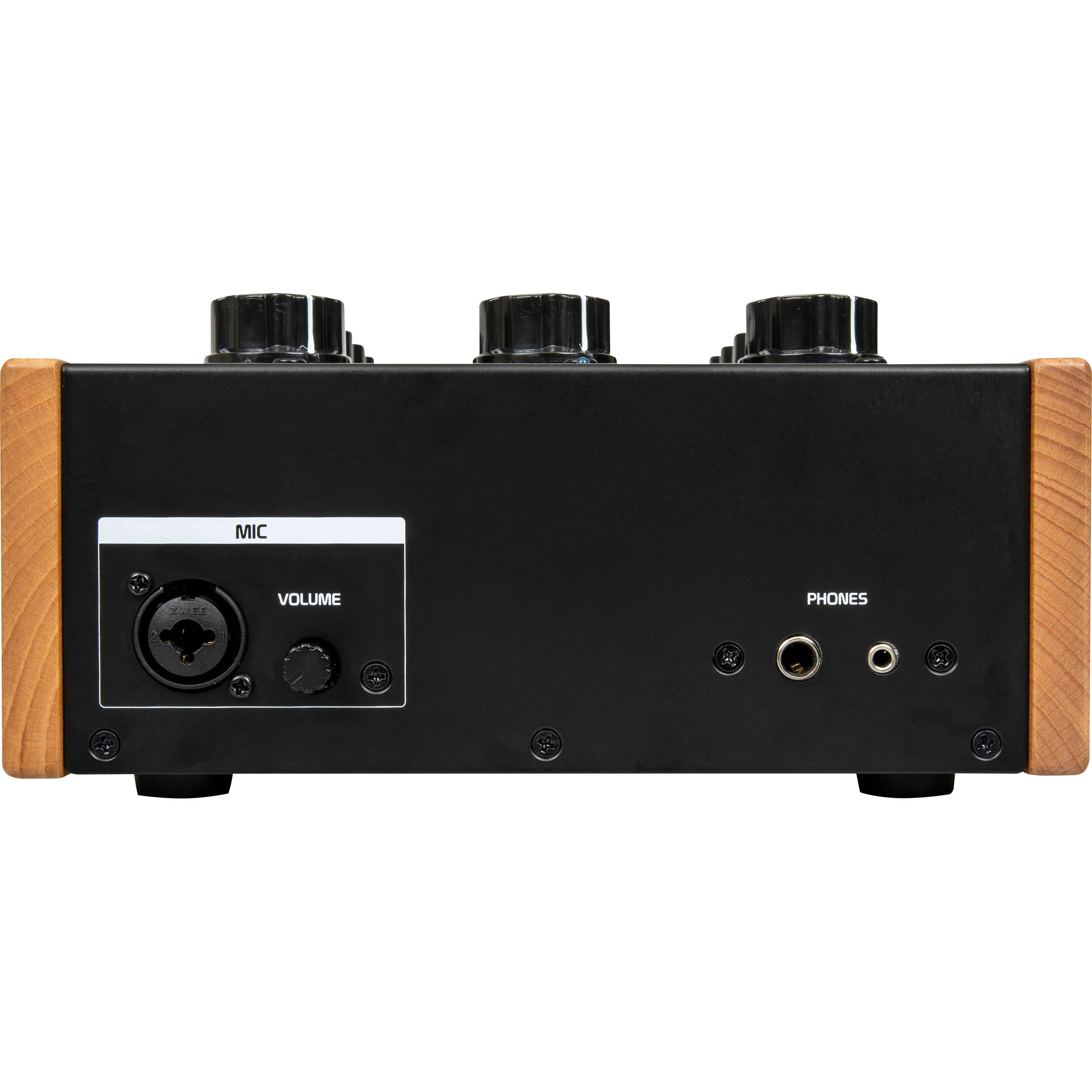

- Microphone input with level control on front panel
- Sturdy metal enclosure with stained wood side panels for a classic look
- Modular internal construction for superior audio performance
- External split rail power supply connected via locking mini-XLR connector
- Push-button power switch on rear panel
In the Box
- Headliner R2 2-Channel Rotary DJ Mixer
- Power Adapter
- Limited 2-Year Manufacturer Warranty
Headliner HL90100 Specs
| Number of Channels |
2
|
| Performance Controls |
EQ, High-Pass Filter, Low-Pass Filter
|
| Built-In Effects |
No
|
| Audio Inputs |
1x Combo XLR-1/4" 3-Pin Mic Input
2x Stereo 2RCA Coaxial Phono Input 2x Stereo 2RCA Coaxial Line Input |
| Audio Outputs |
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Output 1x Stereo 2RCA Coaxial Unbalanced Master Output 1x Stereo 2RCA Coaxial Unbalanced Record Output 1x Stereo 2RCA Coaxial Unbalanced Booth Output 2x XLR 3-Pin Balanced Master Output 2x XLR 3-Pin Balanced Booth Output |
| USB |
No
|
| Faders |
No
|
| Meters |
Channel Meter:
2x LED |
| Meter Range |
+20 dBu Peak/Clip
|
| Display |
No
|
| Sample Pads |
No
|
| EQ |
3x Channel EQ:
Hi Mid Low |
| Performance Controls |
EQ, High-Pass Filter, Low-Pass Filter
|
| Built-In Effects |
No
|
| Audio Inputs |
1x Combo XLR-1/4" 3-Pin Mic Input
2x Stereo 2RCA Coaxial Phono Input 2x Stereo 2RCA Coaxial Line Input |
| Audio Outputs |
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Output 1x Stereo 2RCA Coaxial Unbalanced Master Output 1x Stereo 2RCA Coaxial Unbalanced Record Output 1x Stereo 2RCA Coaxial Unbalanced Booth Output 2x XLR 3-Pin Balanced Master Output 2x XLR 3-Pin Balanced Booth Output |
| USB |
No
|
| Wireless |
No
|
| Frequency Response |
XLR Mic Input:
20 Hz to 20 kHz ±0.1 dB Line Input: 20 Hz to 20 kHz +0/-0.5 dB XLR Master Output: 20 Hz to 20 kHz +0/-1.5 dB |
| Input Level |
XLR Mic:
-50 dBu (Nominal) RCA Line: -7.8 dBu (Nominal) RCA Phono: -40 dBu (at 1kHz, Nominal) |
| Gain/Trim Range |
RCA Line Input:
-12 dB +12 dB RCA Phono Input: -12 dB to +12 dB |
| Output Level |
XLR Master:
+4 dBu (Nominal, Balanced) +20 dBu (Maximum, Balanced) RCA Master: +12 dBu (Maximum, Unbalanced) |
| Headphone Output Power |
70 mW per Channel into 150 Ohms (Max)
|
| I/O Impedance |
XLR Mic Input:
1.2 Kilohms RCA Line Input: 10 Kilohms RCA Phono Input: 47 Kilohms |
| Crosstalk |
<-65 dB
|
| Dynamic Range |
>100 dB (A Weighted)
|
| SNR |
<-86 dBu (Line to Master, A Weighted)
|
| THD+N |
XLR Mic Input:
<0.1% RCA Line Input: <0.05% RCA Phono Input: <0.05% XLR Master Output: <0.05% |
| Included Software |
No
|
| OS Compatibility |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
AC/DC Power Adapter (Included)
|
| Power Supply Output |
100 to 240 VAC
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power I/O |
1x Mini-XLR Input (Locking)
|
| Current Consumption |
500 mA
|
| Dimensions (W x D x H) |
8.6 x 12.6 x 4.2" / 219.0 x 320.0 x 106.0Â mm
|
| Weight |
6.15Â lb / 2.79Â kg
|
| Package Weight |
7.745 lb
|
| Box Dimensions (LxWxH) |
16.5 x 10.7 x 5.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
